Setup
Operating Instructions D867 e-con - 00.0 - 06/2023 183
To adjust the working height:
1. Loosen the screws (1) on the stand bars.
2. Adjust the tabletop to the desired height.
Important
Pull out or push in the tabletop evenly at both sides to prevent it
from jamming.
3. Tighten the screws (1) on the stand bars.
7.7 Assembling the control

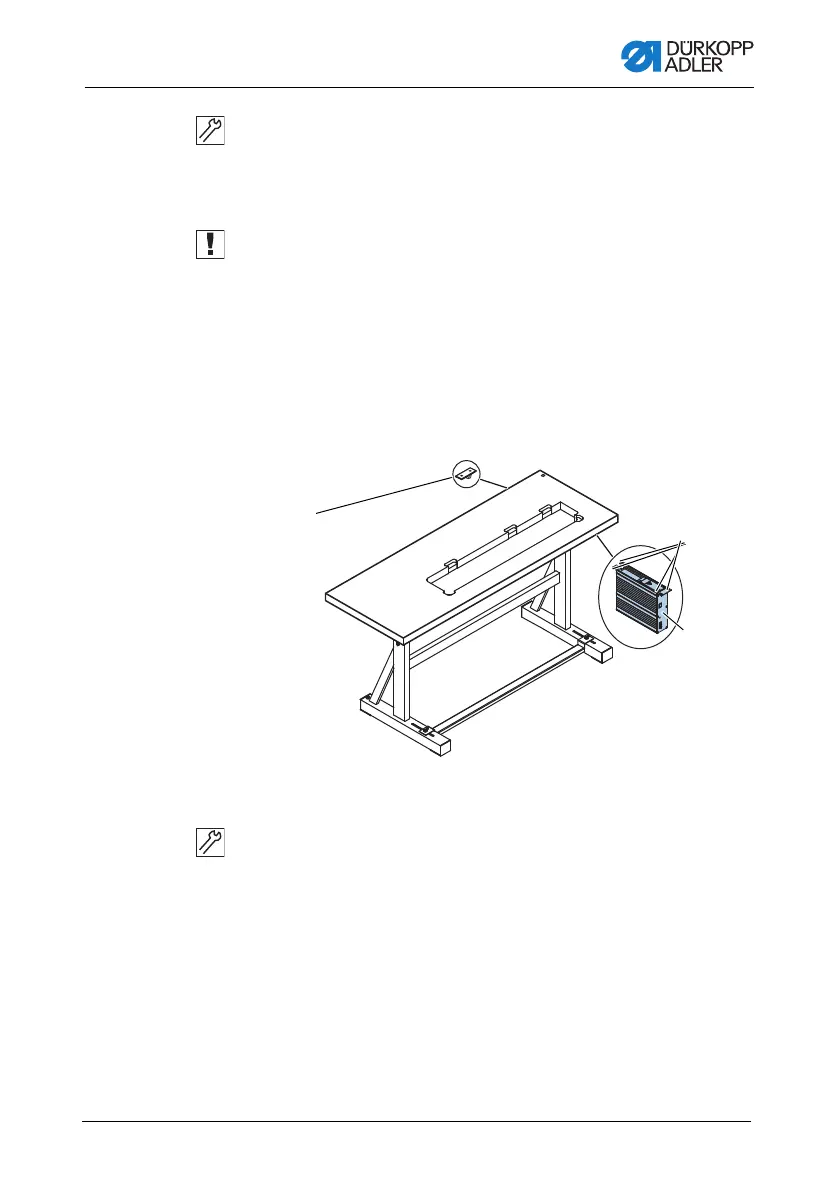

Fig. 88: Assembling the control
To assemble the control:
1. Screw the control (2) onto the 4 screw holders (3) under
the tabletop.
2. Clamp the power cable of the control (2) into the strain relief
mechanism (1).
3. Screw the strain relief mechanism (1) under the tabletop.
(1) - Strain relief mechanism
(2) - Control
(3) - Screw holder
③
②
①
