Operation
Operating Instructions 756 D - 00.0 - 06/2024 27
4.8.3 Right needle thread

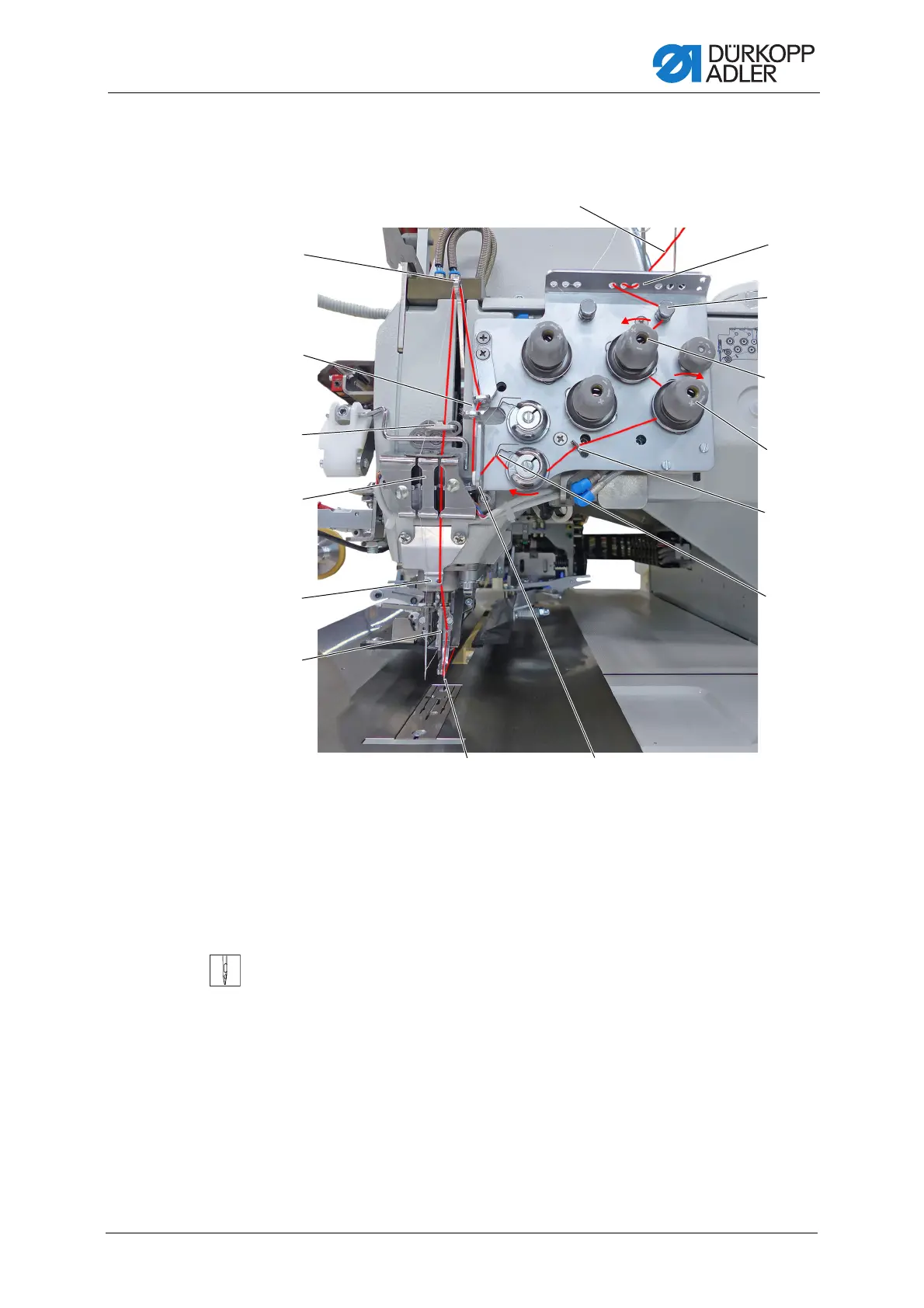

Fig. 11: Right needle thread
To thread the right needle thread:
1. Feed the needle thread (1) in a wavelike manner through the 3 center
holes of the thread guide (15).
2. Feed the needle thread (1) through thread guide (14).
3. Guide the needle thread (1) counterclockwise around the thread
tension (13) in the direction of the arrow.
4. Guide the needle thread (1) clockwise around the thread tension (12)
in the direction of the arrow.
5. Feed the needle thread (1) through thread guide (11) on the mounting
plate.
(1) - Needle thread
(2) - Thread lever
(3) - Thread guide
(4) - Thread advancing device
(5) - Needle thread monitor
(6) - Thread guide
(7) - Thread guide
(8) - right needle
(9) - Thread guide
(10) - Thread tensioning spring
(11) - Thread guide
(12) - Thread tension
(13) - Thread tension
(14) - Thread guide
(15) - Thread guide
⑦
⑧
⑨
⑩
⑪
⑫
⑬
⑭
②
④
⑥
⑤
①
⑮
③
