Operation
Operating Instructions 756 D - 00.0 - 06/2024 25
4.8.2 Left needle thread

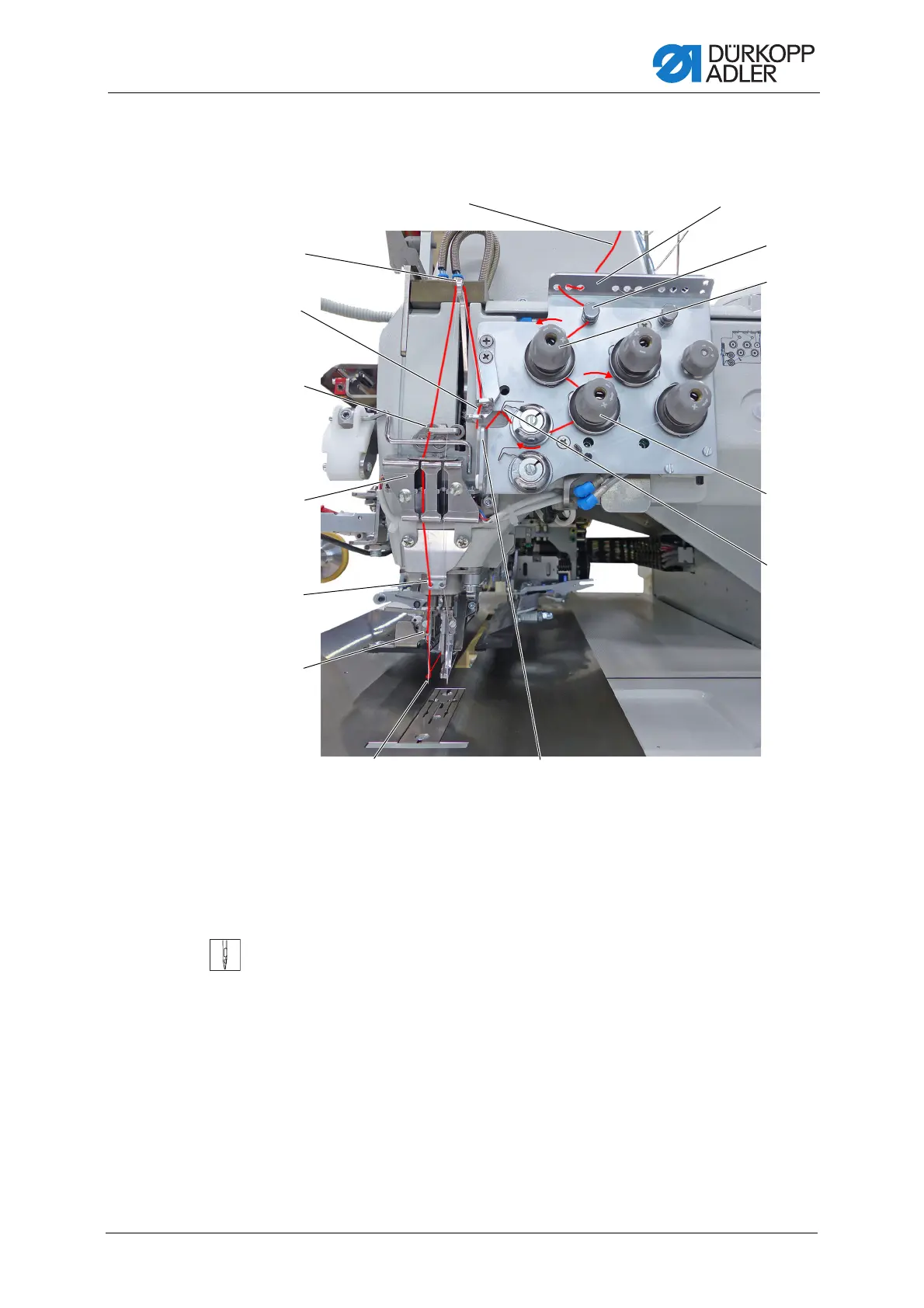

Fig. 10: Left needle thread
To thread the left needle thread:
1. Feed the needle thread (1) in a wavelike manner through the 3 left
holes of the thread guide (14).
2. Feed the needle thread (1) through thread guide (13).
3. Guide the needle thread (1) counterclockwise around the thread
tension (12) in the direction of the arrow.
4. Guide the needle thread (1) clockwise around the thread tension (11)
in the direction of the arrow.
5. Guide the needle thread (1) clockwise through the thread tensioning
spring (10) in the direction of the arrow.
(1) - Needle thread
(2) - Thread lever
(3) - Thread guide
(4) - Thread advancing device
(5) - Needle thread monitor
(6) - Thread guide
(7) - Thread guide
(8) - left needle
(9) - Thread guide
(10) - Thread tensioning spring
(11) - Thread tension
(12) - Thread tension
(13) - Thread guide
(14) - Thread guide
④
⑤
⑥
⑭
①
⑩
③
⑬
⑪
②
⑦
⑧
⑨
⑫
