Operation

Instructions for use 550-D869-100 e-con - 00.0 - 01/2025 33

3. Feed the thread through the first two holes of the thread

guide (1): from the rear to the front through the first hole

and from the front to the rear through the second hole.

4. Feed the thread counterclockwise around the pretension (2)

from the right to the left.

5. Insert the thread through the third hole of the thread guide (1),

feed it upwards through the closest hole and then down

through the second hole towards the winder.

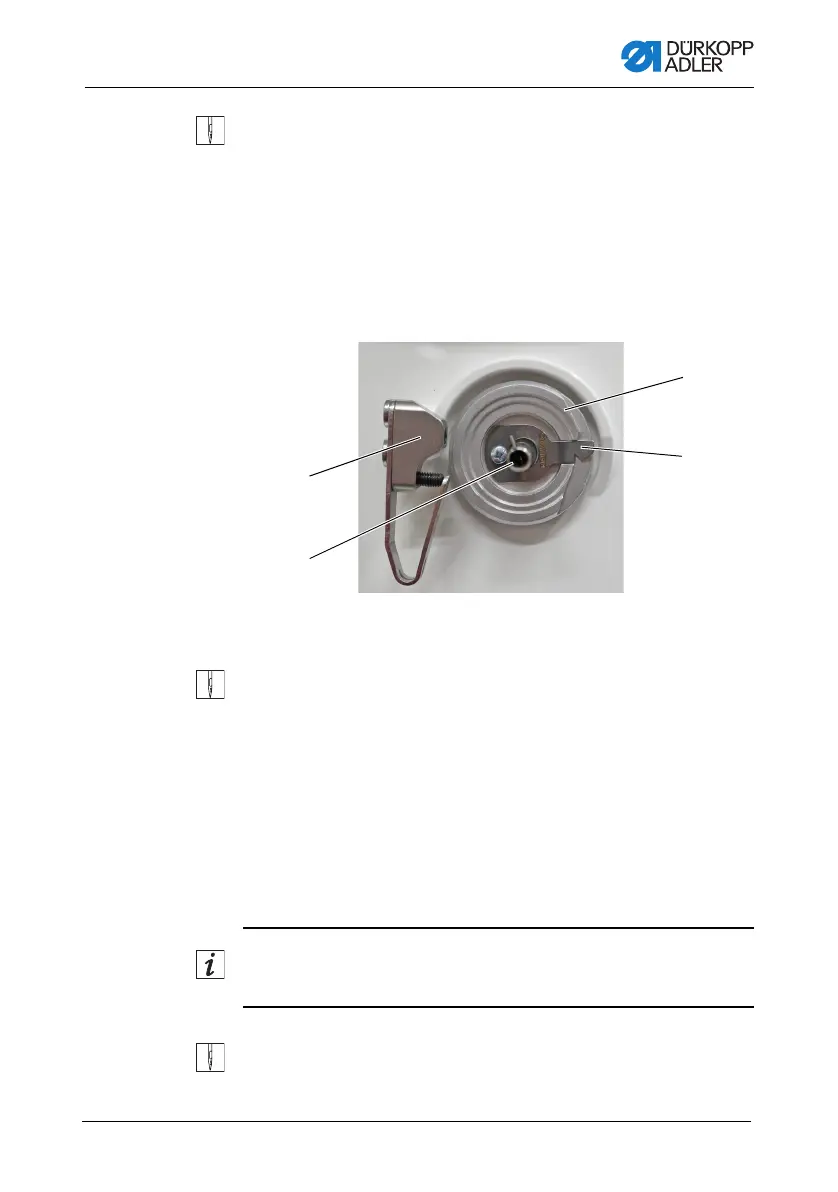

Fig. 12: Winding the hook thread (2)

6. Guide the thread to the winder (6).

7. Clamp the thread behind the knife (5) and tear off the loose

end behind it.

8. Fit the bobbin on the bobbin shaft (4).

9. Turn the bobbin on the bobbin shaft (4) until the drive dog

spring audibly clicks into place in the slot of the bobbin.

10. Pull the bobbin winder lever (3) up.

 The winding process starts and ends automatically when

the bobbin is full. The bobbin winder lever (3) returns to its

lower position.

Information

The hook thread is wound on without sewing ( p. 105).

11. Pull off the full bobbin.

12. Tear off the thread behind the knife (5).

13. Insert the full bobbin into the hook ( p. 34).

(3) - Winder lever

(4) - Bobbin shaft

(5) - Knife

(6) - Winder
