Installation steps for 6” hinge panel with Hinge Panel Glass Bracket

UNIDOOR-X (STYLE M) manual Ver 2 11/2016

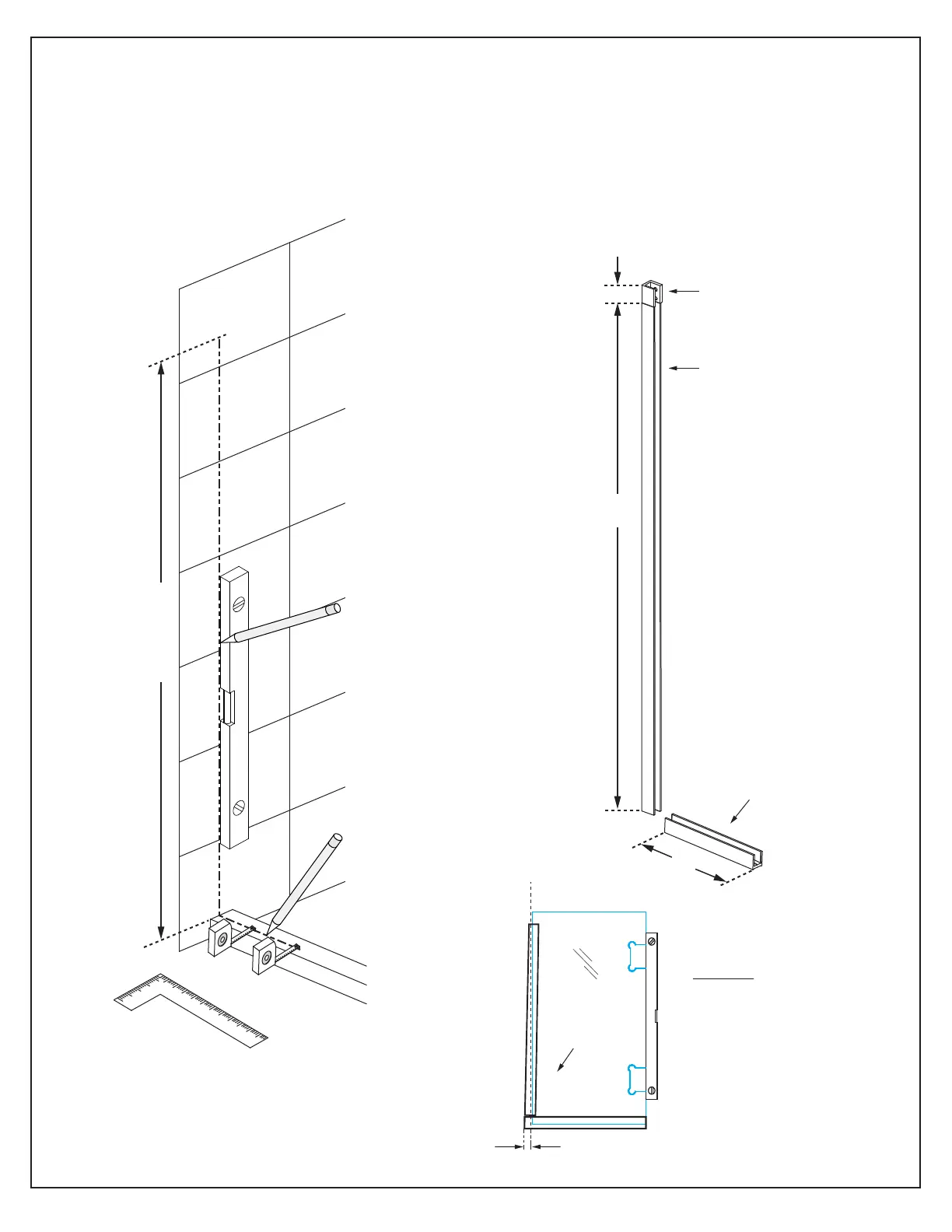

Plumb line

Out-of-plumb

at the bottom

<Less than 90°

Plumb line

**If the wall is

out-of-plumb at the

bottom, measure that

dimension (A) and add

it to the length of the

U-channel ( 1/4” max):

Finished cut length=

Glass Width + 3/16” +

dimension A

vertical

U-channel

Hinge panel

Glass bracket

1-9/16”

69-7/16”

6”

bottom

U-channel**

Fig 4

Carpenter’s

Square

Model

height

of 72”

Fig 3

Cut the vertical U-channel to

69-7/16”. Cut the bottom

U-channel** to 6”. (Fig 4)

1. Draw a line on the threshold and on

the wall to represent the centerline of the

U-channel. Make sure the line is parallel

to the front edge of the threshold. (Fig 3)
