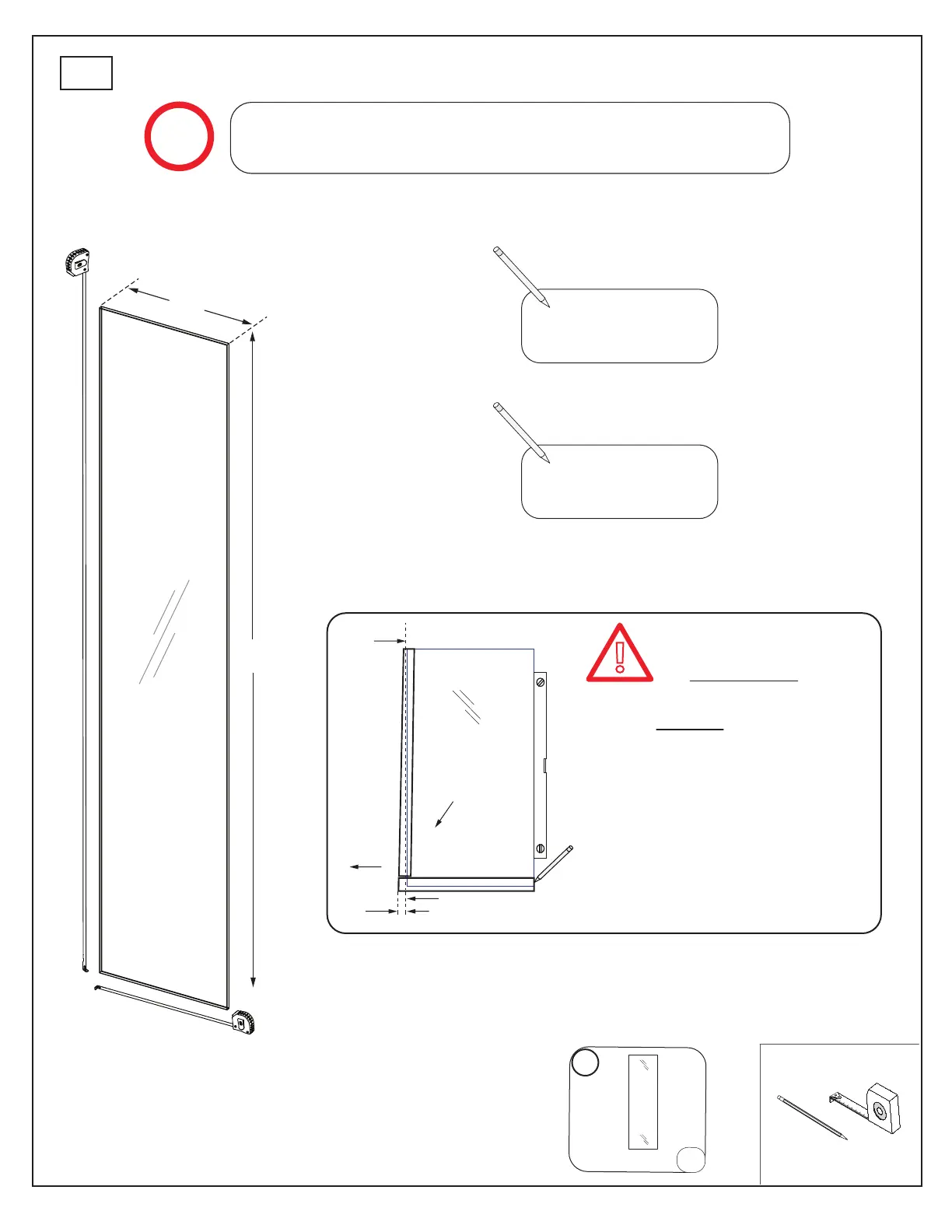

Installation Steps
12UNIDOOR PLUS Style L Shower Enclosure Panel Manual Ver 2 012020
©2020 DreamLine® All Rights Reserved
Use parts from the “Detailed Diagram of Return Panel Glass
Components” for Return Panel Glass assembly and installation.
NOTE
Tools Needed
Parts Needed
W
H
Glass
Width (W)
Glass
Height (H)
Plumb line
Out-of-plumb
at the bottom
<-If Less than 90°
A
Plumb line
**EXCEPTION:
If the wall is out-of-plumb
at the bottom, measure that
dimension as (A) and add (A)
to the finished cut length of
the U-channel (+1/2” max):
Glass Width + 3/16” + (A)
= Finished cut length (L)
!
wall is
out-of
-plumb
11
x1
1
