Installation steps for 6” hinge panel with Hinge Panel Glass Bracket

10

UNIDOOR-X (STYLE M) manual Ver 2 Rev 1 02/2019

!

NOTE: Refer to the

enclosure panel

manual for the

correct dimensions

for enclosure

installations

Plumb line

Out-of-plumb

at the bottom

<Less than 90°

A

Plumb line

**If the wall is

out-of-plumb at the

bottom, measure that

dimension (A) and add

it to the length of the

U-channel (1/4” max):

Finished cut length=

Glass Width + 3/16”

+ dimension A

Vertical

U-channel

Hinge Panel

Glass Bracket

1-9/16”

69-7/16”

6”

Bottom

U-channel**

Fig 2

Carpenter’s

Square

Model

height

of 72”

Fig 1

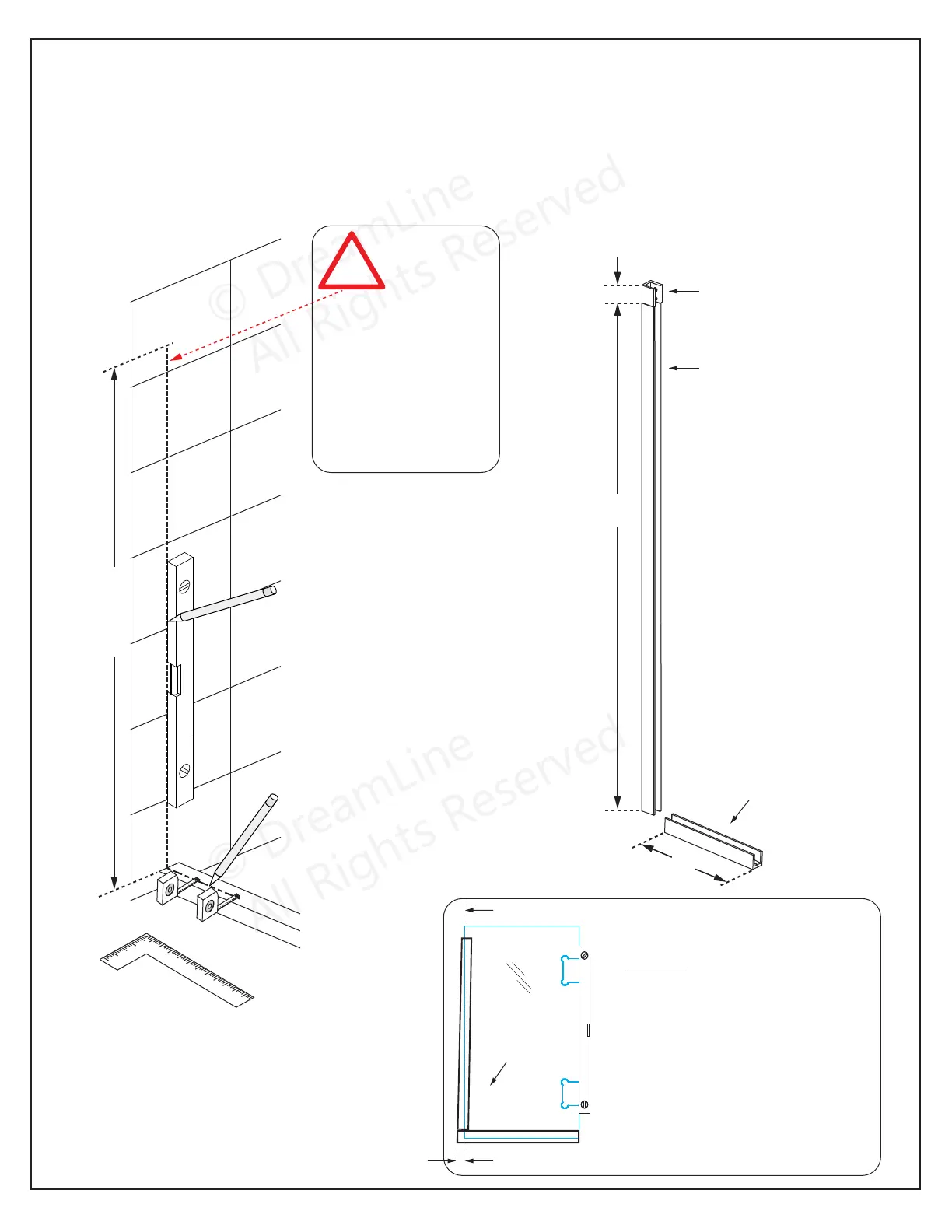

1. Draw a line on the threshold and up the

wall to represent the outside edge of the

U-channels. Make sure the line is parallel to

the front edge of the threshold. (Fig 1)

2. Use a hacksaw or a miter saw:

Cut the Vertical U-channel to 69-7/16”.

Cut the Bottom U-channel** to 6”. (Fig 2)
