20
UNIDOOR-X (STYLE M) manual Ver 2 11/2016
8
7
Max 3/16”
(4mm)
Max 3/16”
(4mm)
5
6
2
3
1
Ø5/16"
(8mm)
4

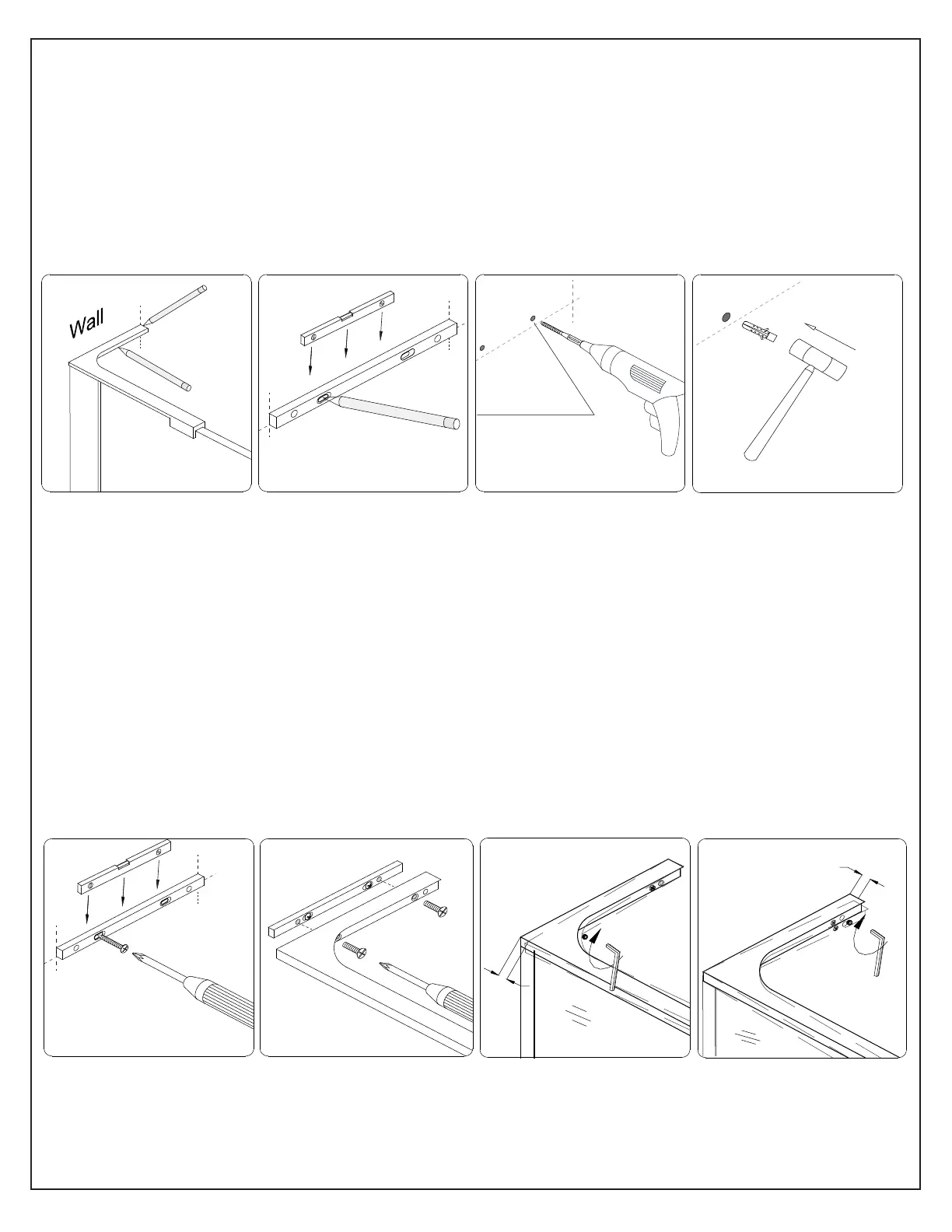

Fig 20
Fig 21
(Left-hand bracket installation shown)
16. Position the L-Bracket assembly (#35) onto the Hinge Panel Glass (#32) as shown and mark its
position on the wall.
Remove the Wall Plate (#35.6) from the L-bracket. Hold the Wall Plate (#35.6) to the marks on the
wall. Check for level and mark the holes for drilling through the wider, untapped holes. (Fig 20.2)
Drill two Ø5/16”(8mm) holes and insert the Ø5/16” Wall anchors (#35.5). (Fig 20)
17. Attach the Wall Plate (#06) to the wall using the ST4.2 x 40 (#35.7) screws.
Re-attach the L-Bracket (#35.3) to the Wall Plate (#35.6) using the Flat Head Screw M5x14 (#35.8)
and adjust the angle if necessary by using the Wall Plate Adjustment Set Screws (#35.9).
(Fig 21.7
and 21.8)
©2017 DreamLine. All Rights Reserved
