UNIDOOR-X (STYLE M) manual Ver 2 11/2016

waterproof

silicone

inside

Fig 16

Fig 17

waterproof

silicone

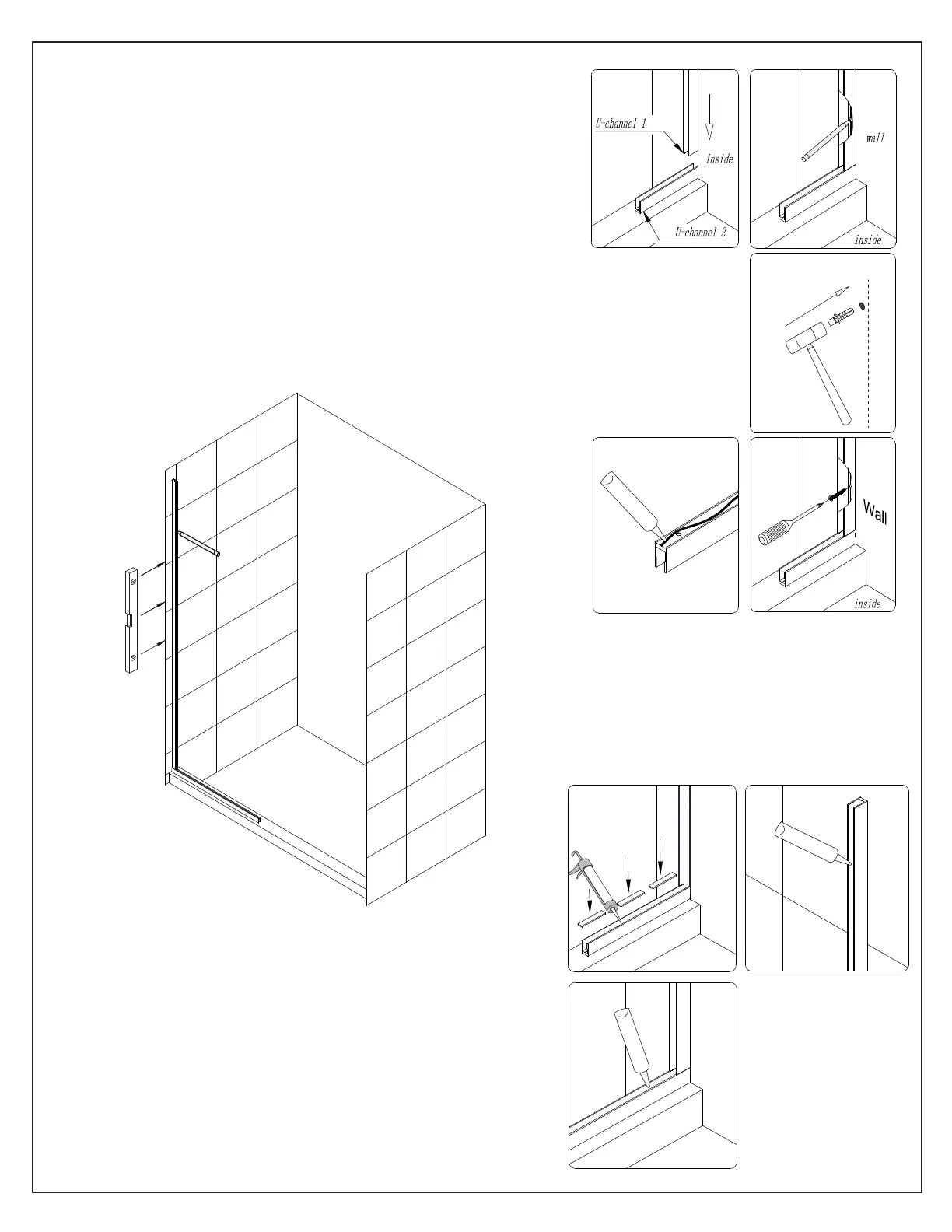

13. Next, position the vertical U-channel 1 (#09) (wall

profile) on top of the installed bottom U-channel.

Use a level to plumb the U-channel 1 (#09) (wall profile)

and mark the positions of the holes for drilling. You need

to use at least four holes for the U-channel 1 (#09) (wall

profile).

• Drill the holes into the wall using a Ø5/16” drill bit.

• Insert the Wall Anchors (#13) into the 5/16” holes.

• Apply silicone to the back of the U-channel 1 (#09)

(wall profile) and attach it to the wall using the ST4.2 x

40mm screws (#23). (Fig 16)

14. Add several 2” pieces of the 0.5mm Adjustment Spacers

(#34) into the bottom U-channel to protect the bottom and

corners of the glass.

Apply a good quality mildew-resistant silicone into both

U-channels. (Fig 17)
