UNIDOOR-X (STYLE M) manual Ver 2 11/2016

Quick-drying/fast curing silicone is

recommended for the installation

of hinge panel glass into u-channels.

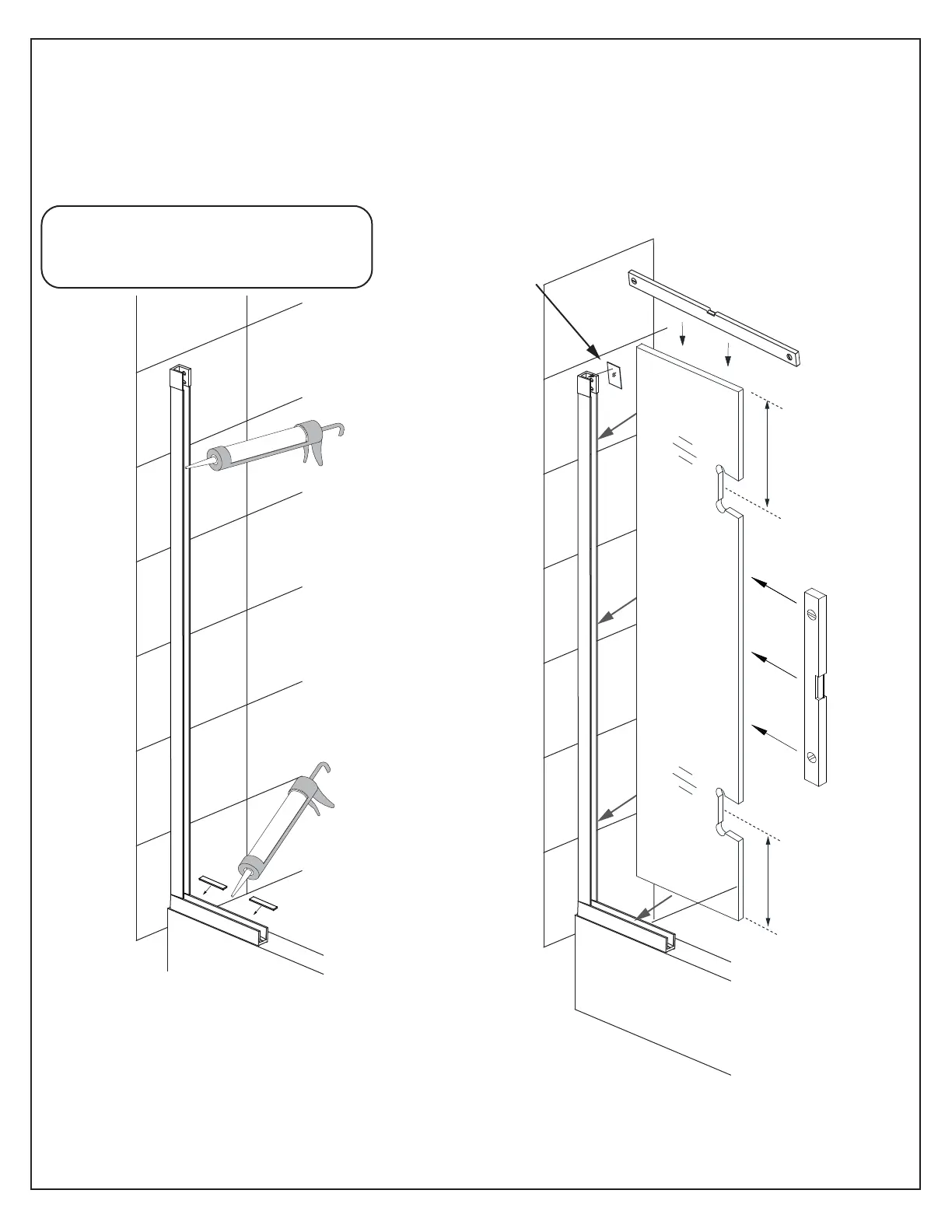

Fig 10

Hinge Panel

Glass Bracket

with gasket

8-3/8”

7-7/8”

Cut and install two 2”pcs

of the 0.5 mm shims (#34)

into the bottom U-channel

to protect the corners of

the glass

Fig 9

7. Add the 0.5mm shims into the

bottom U-channel to protect the

bottom corners of the glass.

Apply a bead of silicone into the

length of the U-channels. (Fig 9)

8. Install the Hinge Panel Glass (#32) into

the U-channel, checking for level and plumb.

Install the gasket into the Hinge Panel Glass

Bracket. (Note: Make sure the top of the

hinge panel glass is at the top). (Fig 10)
