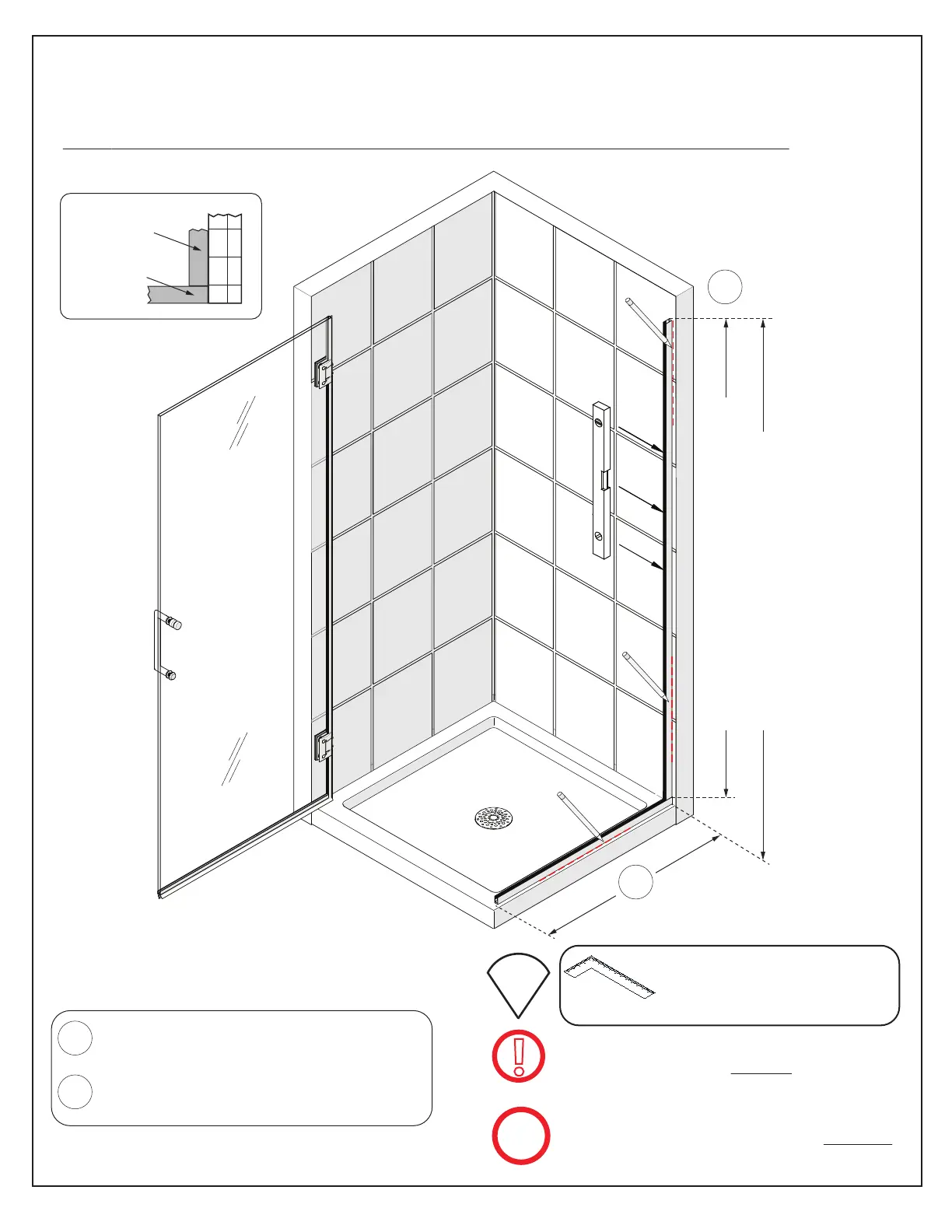

Installation Overview

11UNIDOOR PLUS Style L Shower Enclosure Panel Manual Ver 2 012020

See Steps 1-3 on Pages 12-14

Dimensions as measured from the

finished wall to the outside of the

U-Channel

A

B

30” or *34”

B

71”(1803.4mm)

vertical u-channel =

model height =

72”(1829mm)

A

Cut Vertical U-Channel = 71”

Cut Return Panel Bottom U-Channel:

= 30” or *34”

Install the

Vertical

U-Channel

on top of

the Bottom

U-Channel

Wall

Right-hand Return Panel installation shown

*34” Available for Unidoor-X Style L1

ONLY

Place the U-Channels (#09 and #29) on the wall and threshold at the model dimensions based on

your model size as shown in the "Shower Enclosure Plan" (Pages 5-6).

Note that the space for the door area must be no less than the “nominal door size”

NOTE

!

Use a Carpenter’s square for

accuracy when marking the

threshold

TIP
