UNIDOOR-X (STYLE M) manual Ver 2 Rev 1 02/2019

(L)

Fig 10

Fig 11

Metal File

Out-of-plumb

at the bottom

<Less than 90°

A

Plumb line

**If the wall is out-of-plumb at the

bottom, measure that dimension as

(A) and add it to the length of the

U-channel (+1/4” max):

Finished cut length (L) =

Glass Width + 3/16” + dimension A

U-Channel 1

71”

U-Channel 2

(L)

71”

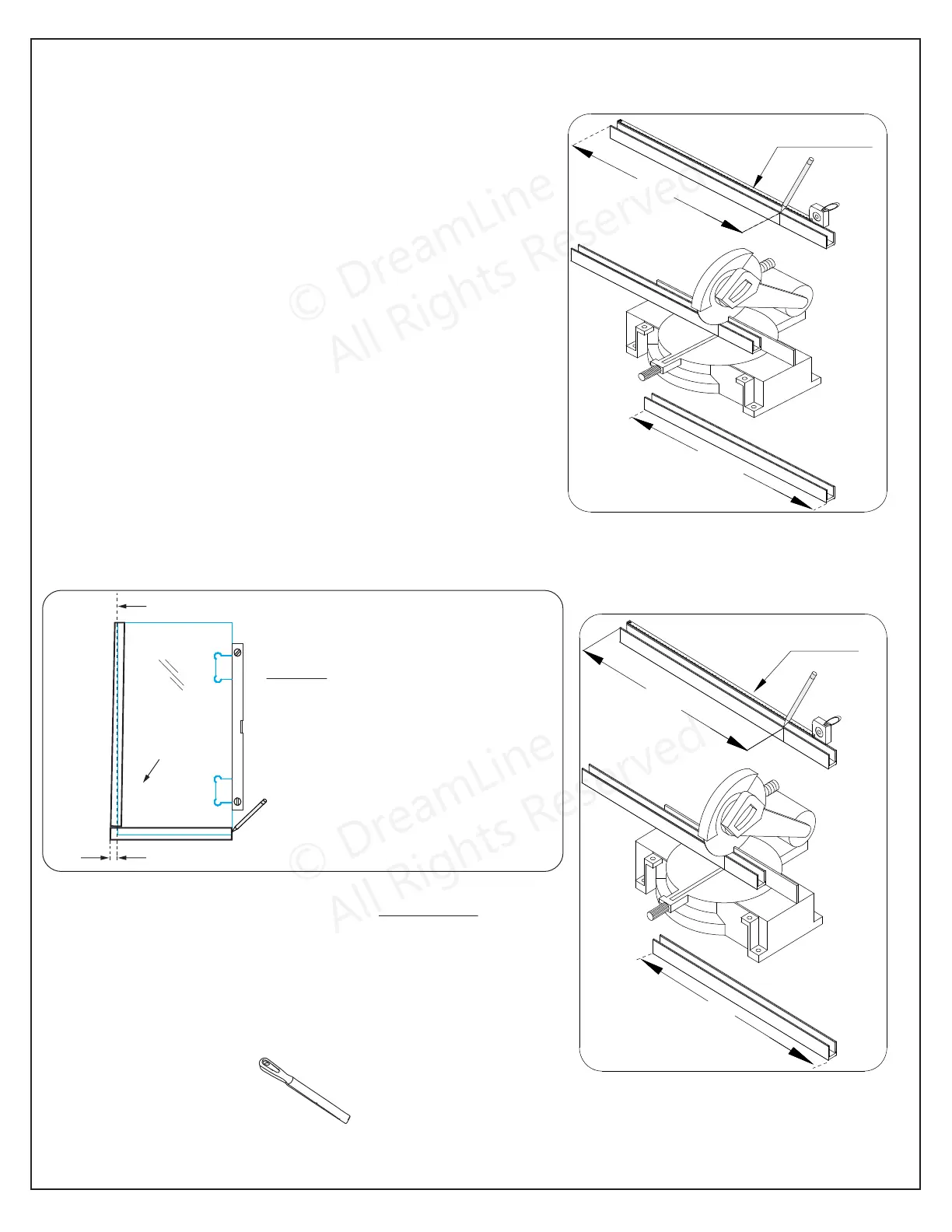

Installation steps for 24” hinge panel glass and the L-Bar™

10. Cut the Vertical U-channel 1 (#09) to 71”. (Fig 10)

TIP: Use a metal file to remove any burrs from the cut end

of the U-channels before placing them onto the glass.

NOTE The Vertical U-channel for the Hinge Panel glass

will accomodate up to 1/4” for out-of-plumb.

Do not exceed this amount.

11. Cut the Bottom U-channel 2 (#29) to 24”

(see note** below). (Fig 11)
