Factory Parts Information

Contact Support@DreamLine.com for Part replacement, installation assistance or additional information.

Complete Warranty information is available on DreamLine.com.

PRISM PLUS Shower Enclosure Manual Ver 2 012020 30

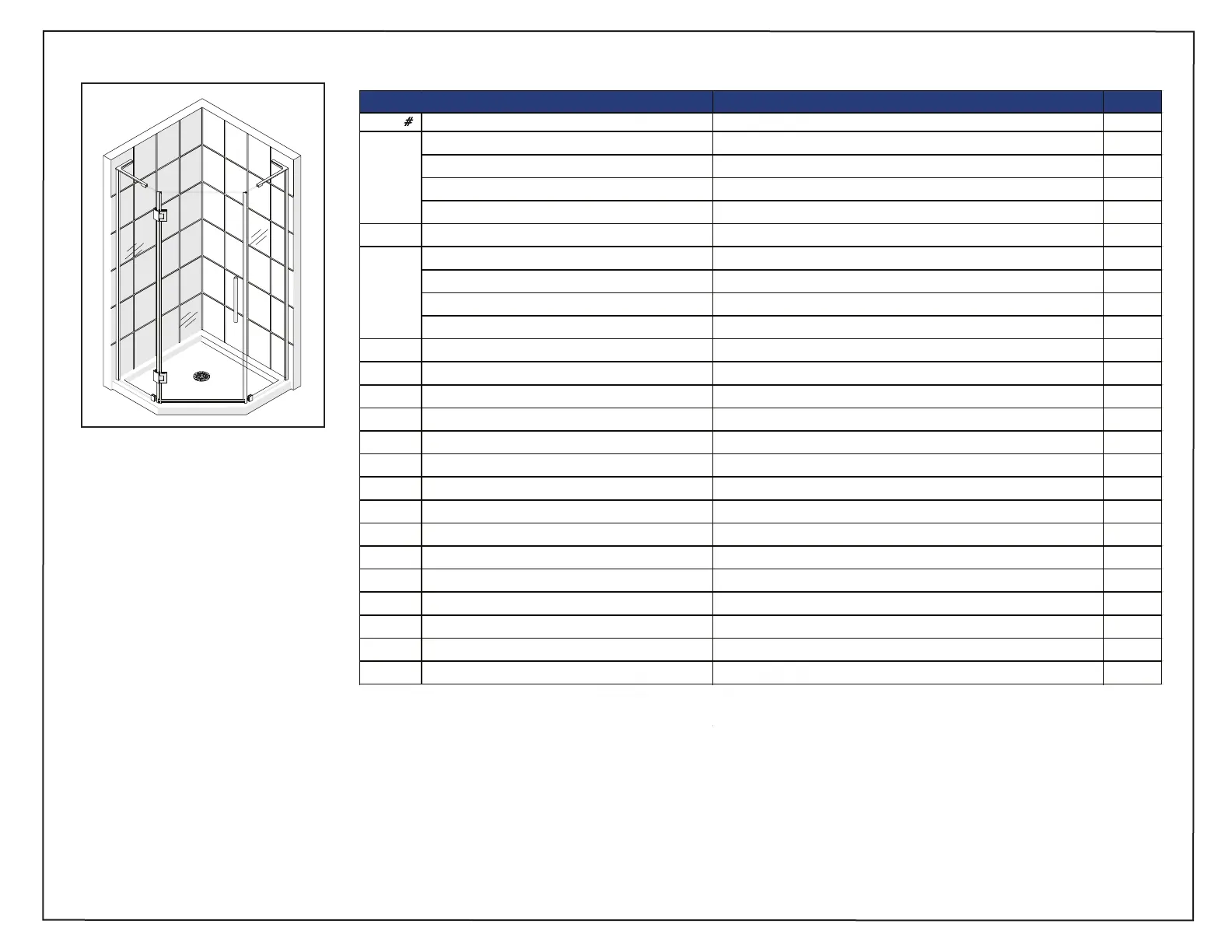

FACTORY PARTS INFORMATION

ITEM

FACTORY PART NUMBER

ITEM DESCRIPTION QTY

014352028 Return Panel Glass (34" x 34") 1

014352021 Return Panel Glass (36" x 36") 1

014352023 Return Panel Glass (38" x 38") 1

014352025 Return Panel Glass (40" x 40") 1

02 014352026

Door Glass

014352027 Hinge Panel Glass (34" x 34") 1

014352020 Hinge Panel Glass (36" x 36") 1

014352022 Hinge Panel Glass (38" x 38") 1

014352024 Hinge Panel Glass (40" x 40") 1

04 07121048/07124048/07126048/07129048 L-Bar™ Support Brack

et Left 12in for 10mm (3/8in) Glass 1

04 07121049/07124049/07126049/07129049/ L-Bar™ Support Bracket Right 12in for 10mm (3/8in) Glass 1

05 07411008/07414008/07416008/07419008/ 130 Degree Glass-to-Glass Hinge Assembly for 10mm (3/8in) Glass 2

06 07221004/07224004/07226004/07229004 Rectangular Single Sided Handle with Knob for 10mm (3/8in) Glass 1

07 07552148 Wall Anchor 8mm (5/16in) 15

08 091104 ST4.0 x 25mm Pan Head

Screw 2

09 090108 ST4.2 x 40mm Truss Head Screw 7

10 07551011/07554011/07556011/07559011 Decorative cover and washer 5

07121057/07124057/07126057/07129057 U-Channel 1" SS for 10mm (3/8in) Glass 2

12 07011002/07014002/07016002/07019002/ Bottom Glass Bracket Exposed Screw for 10mm (3/8in) Glass 2

13 063014100-1829

Vinyl Seal with Flexible Fin for 10mm (3/8in) glass

14 063016100-1829

135 degree Strike Vinyl for

10mm (3/8in) Glass

15 063066100-0610

Bottom Sweep Vinyl for 10mm (3/8in) Glass

091107 ST4.0 x 40mm Pan Head Screw 11

--- 07551093 PVC Glass Spacer 0.5mm

BOLD digit indicates ﬁnish: 1 = Chrome; 4= Brushed Nickel; 06=ORB: 09=Sa�n Black

SHEN-GLP2601 PRISM PLUS
