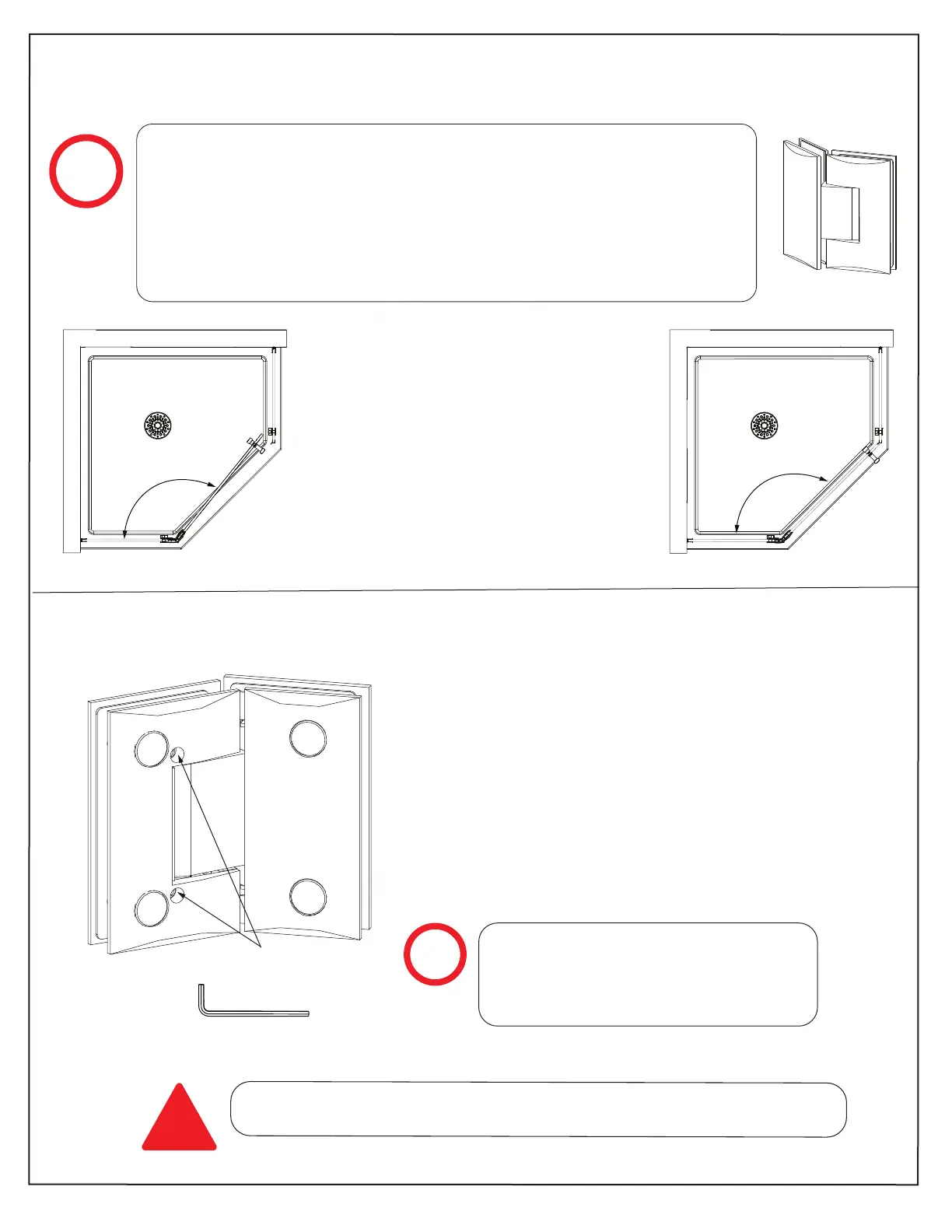

130° Adjustable Hinge Information

PRISM PLUS Shower Enclosure Manual Ver 2 012020

NOTE

The hinge assemblies are preset to overclose 5° beyond the normal

closing position to create a tight seal against the strike vinyl. The

adjustment feature on the hinge assemblies can be used to change the

closing angle of the door only. Make any hinge adjustments prior to

installing the Strike Vinyl. Both Hinge Assemblies must be adjusted at the

same time and to the same angle. Do not attempt to adjust the hinges

separately or before they are installed.

HG-PRS30A 130° Adjustable Hinge

The Adjustable Hinge Assemblies are

factory pre-set to overclose to 130° to

create a tight seal with the Strike Vinyl.

If strike vinyl is not used, the hinges

can be adjusted to close to a different

angle (135° for example).

130°

135°

How to Adjust the Hinge Assemblies

Adjustment

set screws

To prevent leakage, adjust the Hinge Assemblies (#05) to overclose

so the Door Glass creates a tight seal with the 135° Strike Vinyl (#14).

Once the Door Glass (#01) is installed:

• Remove the strike vinyl if it is installed

• Hold the door in the closed position and loosen the

adjustment set screws on both hinges with the supplied

Allen Key

• Move the door to the new desired closed position

• While holding the door in the new closed position,

retighten the set screws on both hinges

• The Door Glass will now close to the new closed

position

Do not adjust the hinges separately or

before installation. This could lead to

problems with the hinges operating

together correctly.

NOTE
