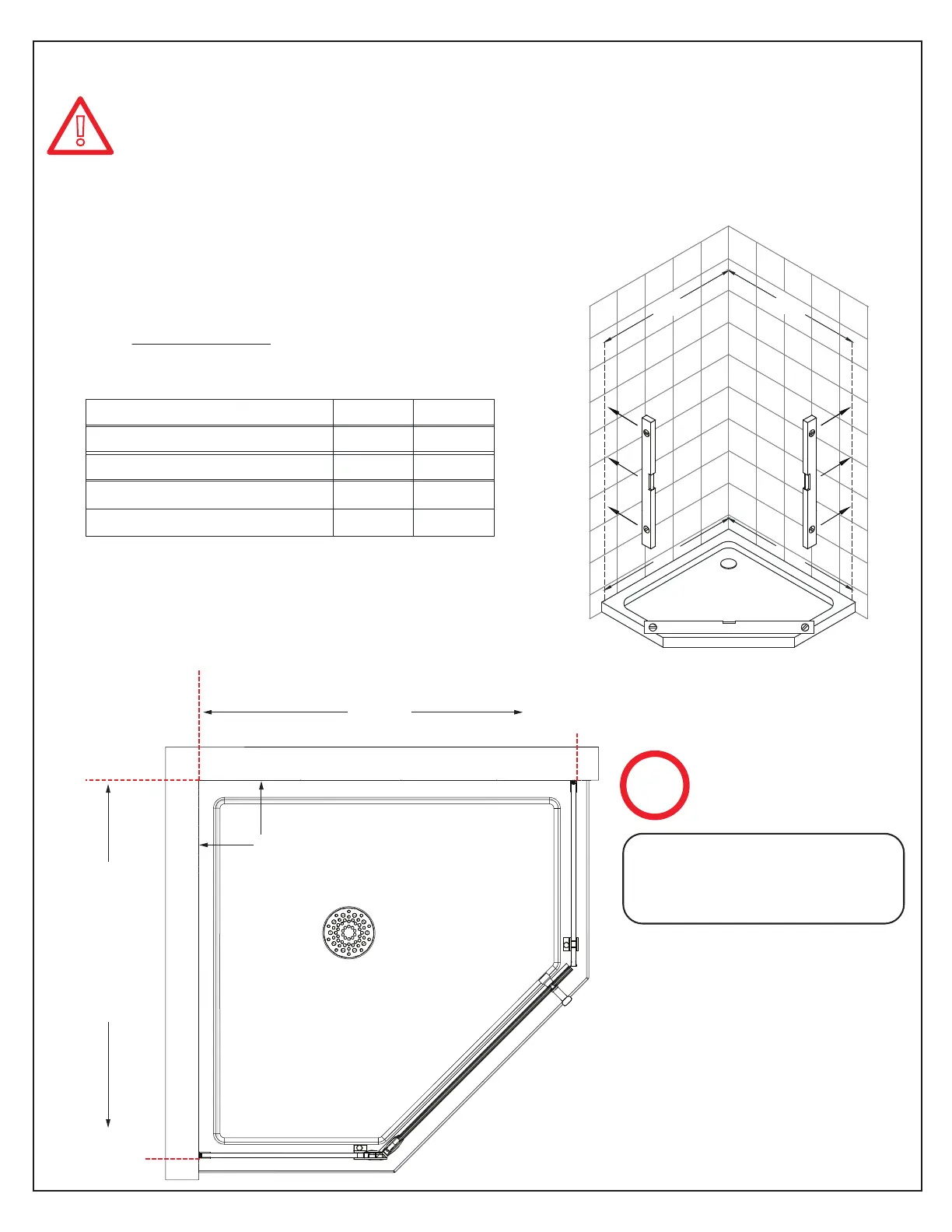

Checking Dimensions

WARNING DISCLOSURE

2 PRISM PLUS Shower Enclosure Manual Ver 2 012020

®

!

NOTE: This enclosure must be installed at the model size dimensions shown in Table A on

page 2 and page 9. Be sure that the correct size shower enclosure has been ordered to fit

the finished dimensions of the base or threshold where the enclosure will be installed.

NOTE: The thickness of the finished wall treatment will affect where the enclosure will align

upon the threshold.

34”

36”

38”

40”

Finished wall

surface

Outside edge of

wall profile

Outside edge of

wall profile

Model sizes:

34"

36"

38"

40"

W1

34"

36"

38"

40"

W2

SHEN-GLP2601-343410

SHEN-GLP2601-363610

SHEN-GLP2601-383810

Glass Box Code

SHEN-GLP2601-404010

W1

W2

W1

W2

34”

36”

38”

40”

W1 and W2 dimensions are measured

from the finished corner of the walls to

the outside edge of the wall profiles.

NOTE

Measure at the bottom

and draw a plumb line up

from the threshold

Table A
