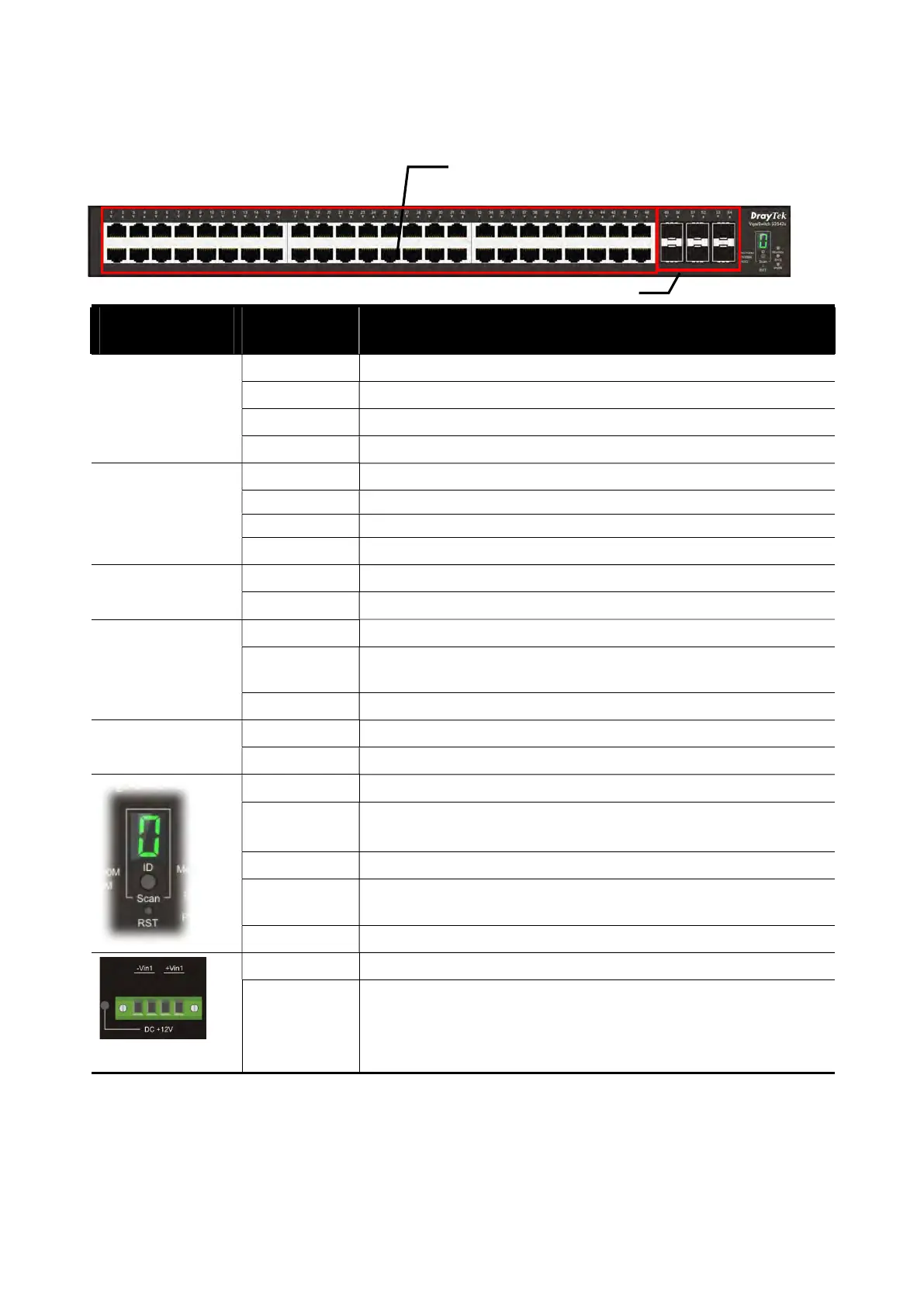

I-1-2 LED Indicators and Connectors
For G2542x
LED
Status Explanation
On (Green) The device is connected with 1000Mbps.
On (Amber)
The device is connected with 10/100Mbps.
Blinking
The system is sending or receiving data through the port.
Port 1 ~ 48
(GbE RJ45)
Off
The port is disconnected or the link is failed.
On (Green) The device is connected with 1000Mbps.
On (Blue) The device is connected with 10Gbps.
Blinking The system is sending or receiving data through the port.
Port 49 ~ 54
(SFP+)
Off The port is disconnected or the link is failed.
On (Red) An alert for system failure due to overheating or wrong voltage.
Monitor
Off The device is in normal condition and running normally.
On (Green) The switch finishes system booting and the system is ready.
Blinking
(Green)
The switch is powered on and starts system booting.
SYS
Off The power is off or the system is not ready / malfunctioning.
On (Green) The device is powered on and running normally.
PWR
Off The device is not ready or is failed.
0 The switch is in the master mode of stacking.
1
The switch is in slave mode or provided the highest priority.
It serves more than 2 stacking members as the "Secondary Master".
2 to F The switch is in the slave mode of stacking.
r The switch does not join the stacking members or joins but over the
number of members.
Off The device is in stand alone mode.
On (Green) DC+12V (Vin1) - The power supply with +12VDC is good.
DC Power In
Off The device is not ready or is failed.
Port 49 to 54 (SFP+)
Port 1 to
48 (GbE RJ45)
