DRAWMER 1971 OPERATOR’S MANUAL
The unit will have been supplied with a power cable suitable
for domestic power outlets in your country. For your own safety
it is important that you use this cable. The unit should always
be connected to the mains supply earth using this cable, and
no other.
If for some reason the unit is to be used at a
mains input operating voltage which is dierent
to that as supplied, the following procedure must
be carried out.
1: Disconnect the unit from the mains.
2: Remove the two screws holding the voltage
selection cover-plate.
3: Remove the cover plate and slide the switch
fully to its opposite end.
4: Rotate the cover plate one half turn (180
degrees) and ret the two screws.
5: Replace with a correctly rated fuse for the
selected operation voltage in the IEC
socket:
230V-T250mA and 115V-T500mA
6: Re-connect to mains power source.
Never disconnect the earth
from the mains supply
The 1971 is designed for standard 19” rack mounting and occupies 2U of rack space. Fibre or plastic
washers may be used to prevent the front panel becoming marked by the mounting bolts.
- Care should be taken in the choice of positioning. The unit should not be mounted where
other equipment obstructs the normal air ow. The unit should not be situated near any heat source,
such as a radiator, stove or a high power amplier that would generate heat.
- The appliance should not be operated near any water or in a location where moisture might be present.
- Always connect the mains earth to the unit.
If the 1971 is to be continuously moved from one location to another, we suggest using additional support
in the rack at the rear of the unit.

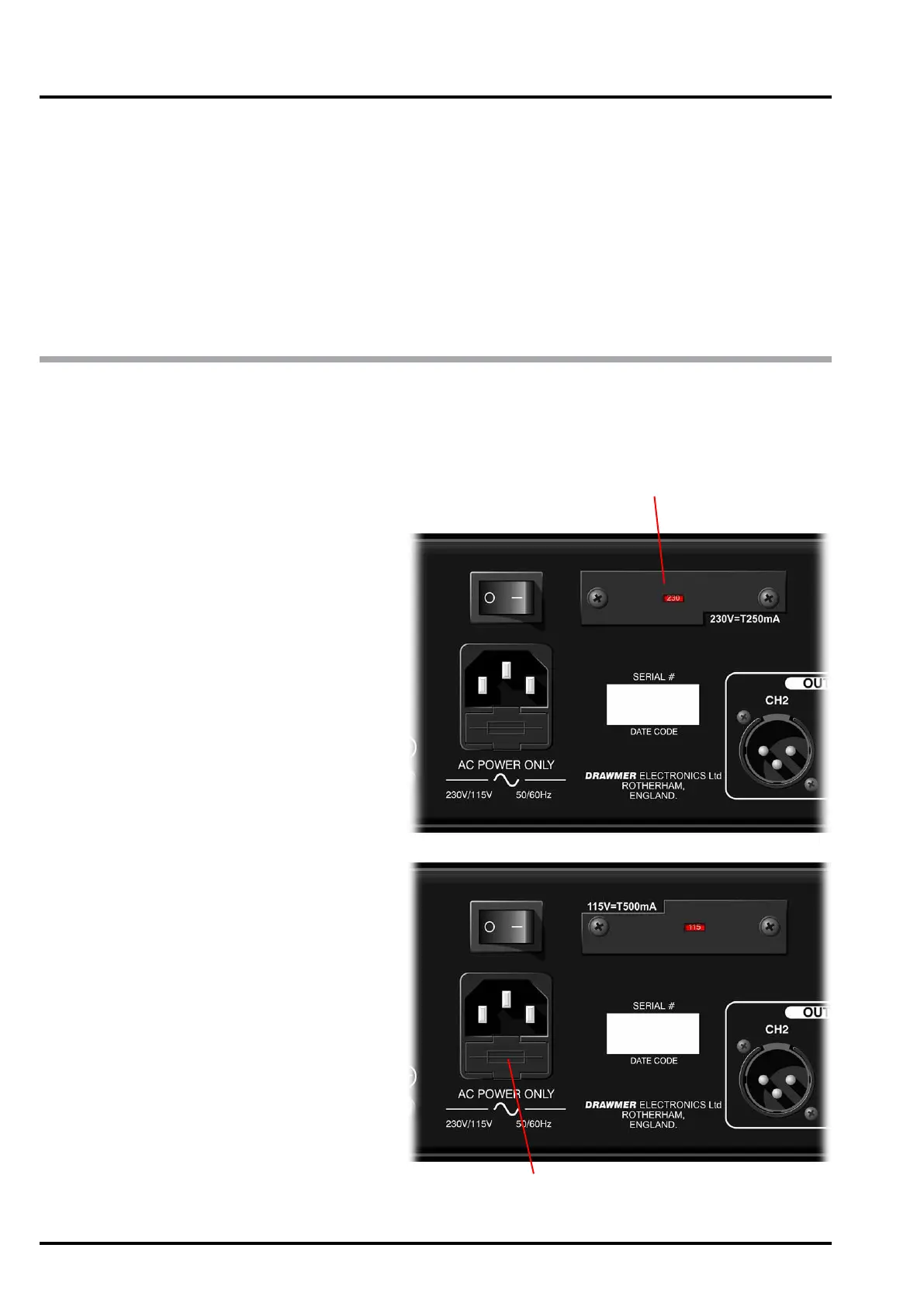

INSTALLATION
POWER CONNECTION
COVER-PLATE
IEC SOCKET FUSE DRAWER
