8. ASSEMBLY
- 9 -

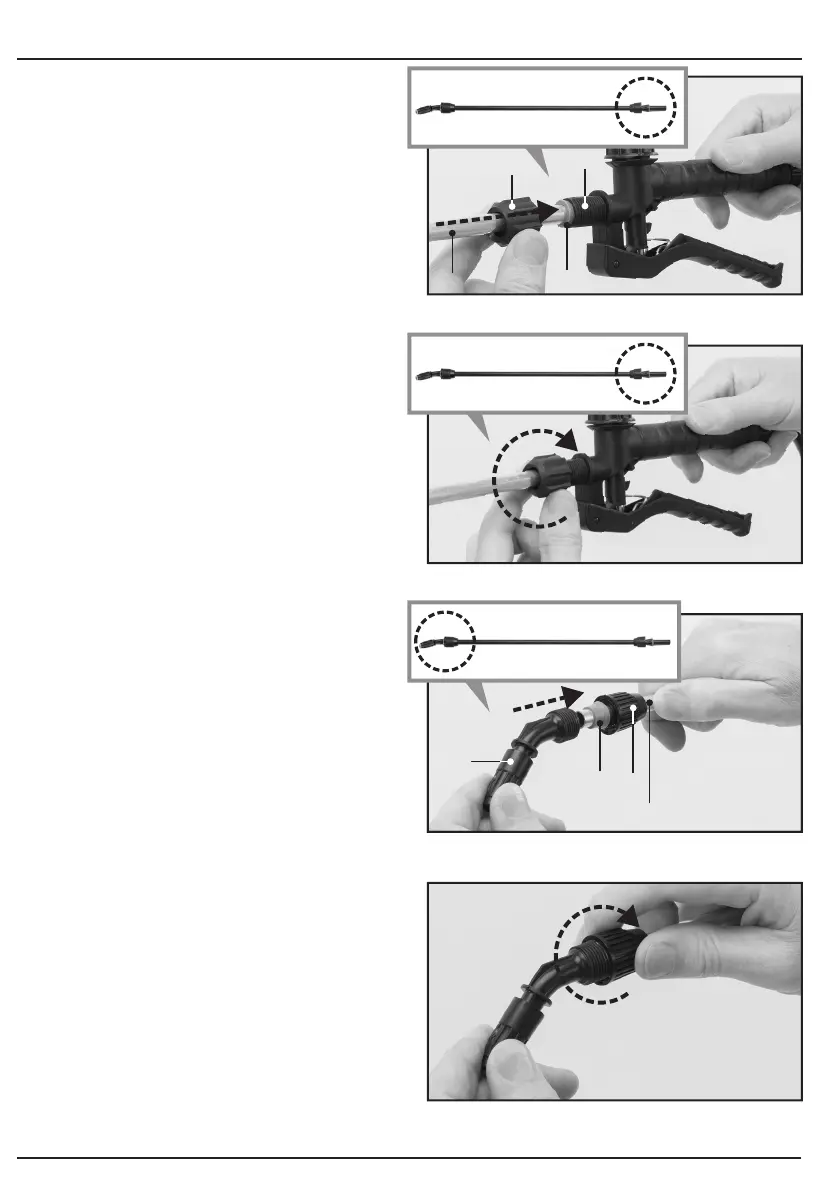

FIG. 1
FIG. 2
FIG. 3
FIG. 4
8.1 LANCE ASSEMBLY – FIGS. 1 – 2
– If not already in place, make sure the rubber
gasket $and compression fitting %are
arranged onto the lance in the correct
order, as shown in FIG. 1.
– Slide the end of the lance into the trigger
assembly .
– Screw the compression fitting %clockwise
to secure the trigger and lance.
8.2 NOZZLE ASSEMBLY –
FIGS. 3 – 4
– If not already in place, make sure the rubber
gasket 'and compression fitting (are
in place on the end of the lance, as shown
in FIG. 3.
– Slide the nozzle onto the end of the
lance .
– Tighten the compression fitting to secure the
nozzle in place.
'
(
$
%
