6. CONTENTS
- 10 -
- 7 -
Depending on manufacture and model, some engine components do change. Please check with
Autodata or the manufacturer’s data before use.
9. PROCEDURE AND APPLICATION GUIDE
Align the crankshaft at TDC on cylinder number 1 using components G and H.
Tensioner Locking Pins/clip D, E and F
Component D is used to lock the oil pump chain tensioner in its retracted p[osition when
removing the oil pump.
Components E and F are used to lock the camshaft drive chain tensioner as shown. Use
either D or E depending on tensioner type (A or B)

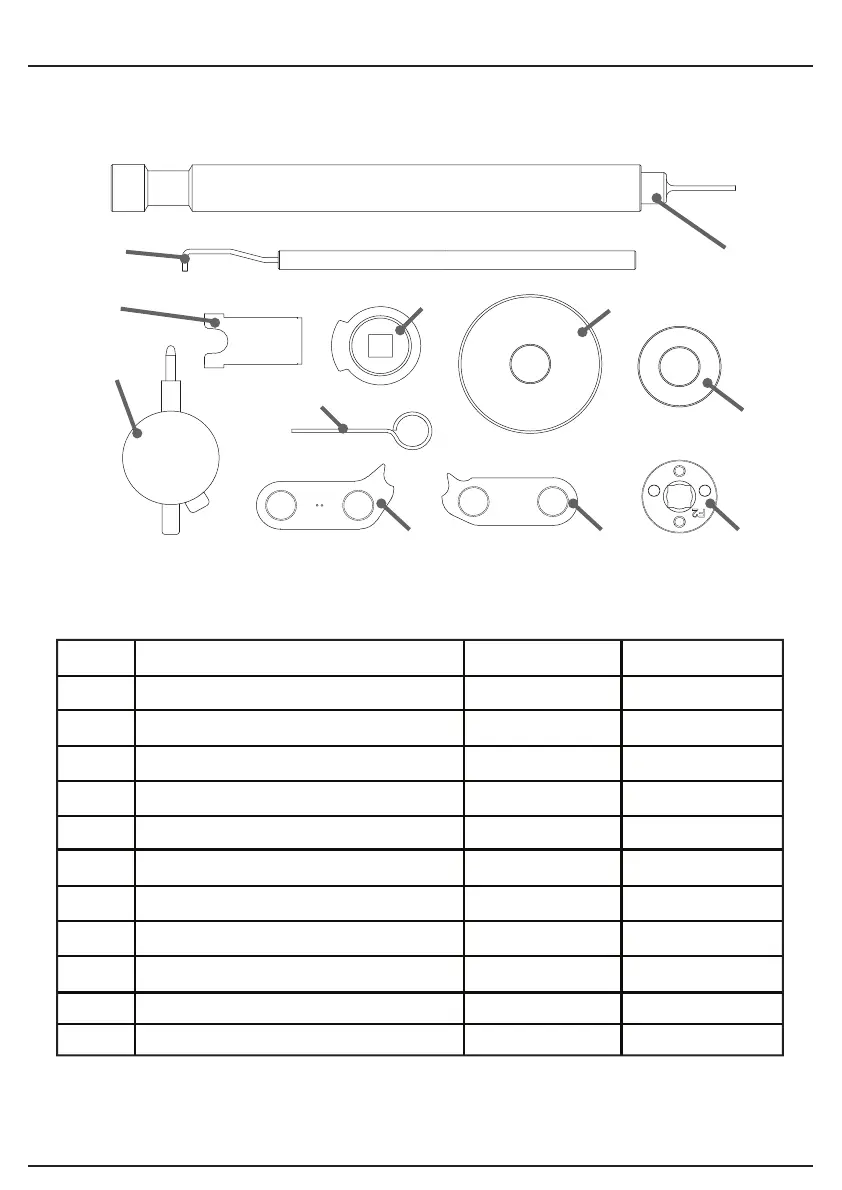

G
J
A
B
E
C
H
F
D
K
I
ITEM DESCRIPTION OEM STOCK No.
A Camshaft Control Valve Tool T10352 35668
B Camshaft Clamp (LH Cam) T40271-1 35669
C Camshaft Clamp (RH Cam) T40271-2 35670
D Tension Pulley Locking Pin T40265 35671
E Tensioner Locking Pin T40011 35672
F Tensioner Locking Clamp T40267 35673
G DTI, TDC Extension T10170 35674
H DTI Gauge VAS6079 35675
I
Crankshaft Oil Seal Thrust Plate T10354 35676
J Sleeve T10368 35677
K Camshaft Adaptor T40266 35678
