4. Contact the manufacturer if equipment is to be used in any of the
following conditions:
• Equipment is to be used in conditions beyond the given specications, or if
equipment is to be used outdoors.
• Equipment is to be used in conjunction with atomic energy, railroad,
air navigation, automobiles or related vehicles, medical equipment or
safety equipment.
• In applications that adversely eect humans, animals, or property requiring
special safety analysis.
3.3 ProductSelection
WARNING! Standard Filters, Regulators, Lubricators and Filter- Regulator
Combination units should be used in accordance with the specications
mentioned in the specication sheets. While installing and using this
equipment, please also follow the respective specication & instruction
manual available for each product.
Wherever this symbol is shown, it indicates CAUTION! and/or WARNING!
It indicates that operator error can lead to damage and malfunctioning of the
pneumatic equipment and can lead to serious personal injury or loss of life.
1. Air Filter and Lubricator
Standard Filters and Lubricators incorporate polycarbonate bowls and / or
observation windows. Do not use lters & lubricators in an environment that will
expose the above components to synthetic uids, organic solvents, corrosive
chemicals, cutting lubricants, thread sealant or similar materials.
Make sure that the condensate in periodically drained when using manual drain
valves on Filters.
2. Regulator
a. Safety devices shall be placed to prevent secondary (output) pressure from
rising past the set pressure.
This will ensure that damage to the components on the secondary side will
be minimized in the event of a malfunction.
b. In a standard regulator, when the supply pressure is removed or
disconnected, either of the following may happen:
− The residual pressure will remain on the secondary side of the regulator.
− The pressure on the secondary side of the regulator will exhaust.
The designer should add components to the circuit to compensate for
any of the above conditions.
c. Regulator operation may be aected when used in Balanced or Secondary
sealed circuits. Please consult the manufacturer regarding these
applications.
3. Lubricators
Ensure proper function of the Lubricator. Minimum airow rate should be
ensured for eective lubrication.
3.4RecommendedAirSupplySetUp

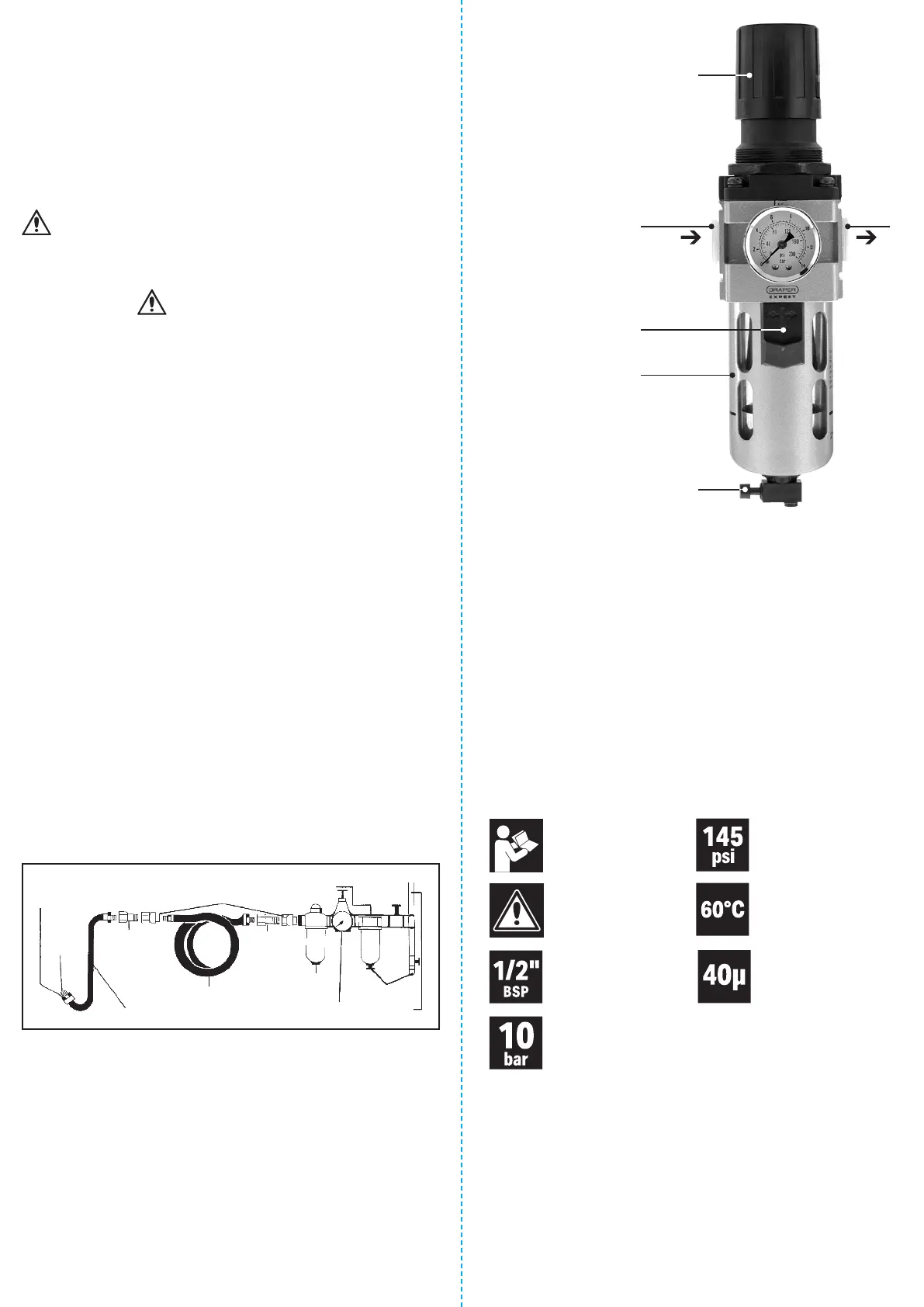

4. Identication
(1) Air inlet
(2) Air outlet
(3) Metal bowl cover
(4) Pressure regulator adjuster
(5) Condensate release valve
(6) Outer cover release catch
5. SettingTheUnit
5.1 Regulator
The output pressure
is controlled by
(4) the pressure
regulator adjuster.
Before pressurising
the air system for the
rst time, pull up and
rotate the knob
anticlockwise to remove
any loading on the
regulator spring.
Pressurise the system and then
rotate (4) the pressure regulator
adjuster clockwise to set required
output pressure, as shown on gauge.
When the required pressure is achieved
push in (4) the pressure regulator adjuster to prevent inadvertent adjustment.
NOTE: For correct pressure setting always adjust up from a lower pressure.
Therefore to reset from 80 to 70psi for example, reduce pressure from 80 to 60psi
and then increase to 70psi.
5.2 Filter
The bowl should be drained regularly to prevent an excessive build-up of water/oil.
Push in the drain valve at the bottom of the bowl, allow to drain and then release.
6. Warranty
6 months from date or purchase - Visit drapertools.com/warranty for full details.
7. Symbols
Read the
instruction
manual
Warning!
Inlet/Outlet thread
Max. inlet pressure
(1) (2)
(4)
(6)
(3)
(5)
Do not install
quick coupling here
To your
air tool
Quick coupler
Water separation
NippleNipple
Oiler
Drain daily
Regulator Air supply
Recoil hose
Leader hose
Max. inlet pressure
Max. temperature
Filtration element
