- 7 -
Depending on manufacture and model, some engine components do change. Please check with
Autodata or the manufacturer’s data before use.
9. PROCEDURE AND APPLICATION GUIDE
Component A – Crankshaft Pulley Hub Holding tool
Use component A to hold the Crankshaft pulley hub while undoing the hub fixings. Replace
crankshaft bolt. NOTE: Check thread direction before removal/fitting.
Component B – Camshaft Locking Tools x2
Components marked B are used to set the camshaft
timing. Remove the blanking plugs in the cylinder
head and insert both the cam shaft timing tools.
Turn the cam shaft until both tool centres can be
pushed in.
Component C – Camshaft Position Sensor Disc setting Tool
Component(s) C are used to align and hold the camshaft in its correct position while the
camshaft sprocket is tightened to the correct torque. See OEM data for tightening torques.
Assemble and fit the holding tool as shown on the chain drive end of the camshaft.
B
G
C
D
E
F
A
B
G

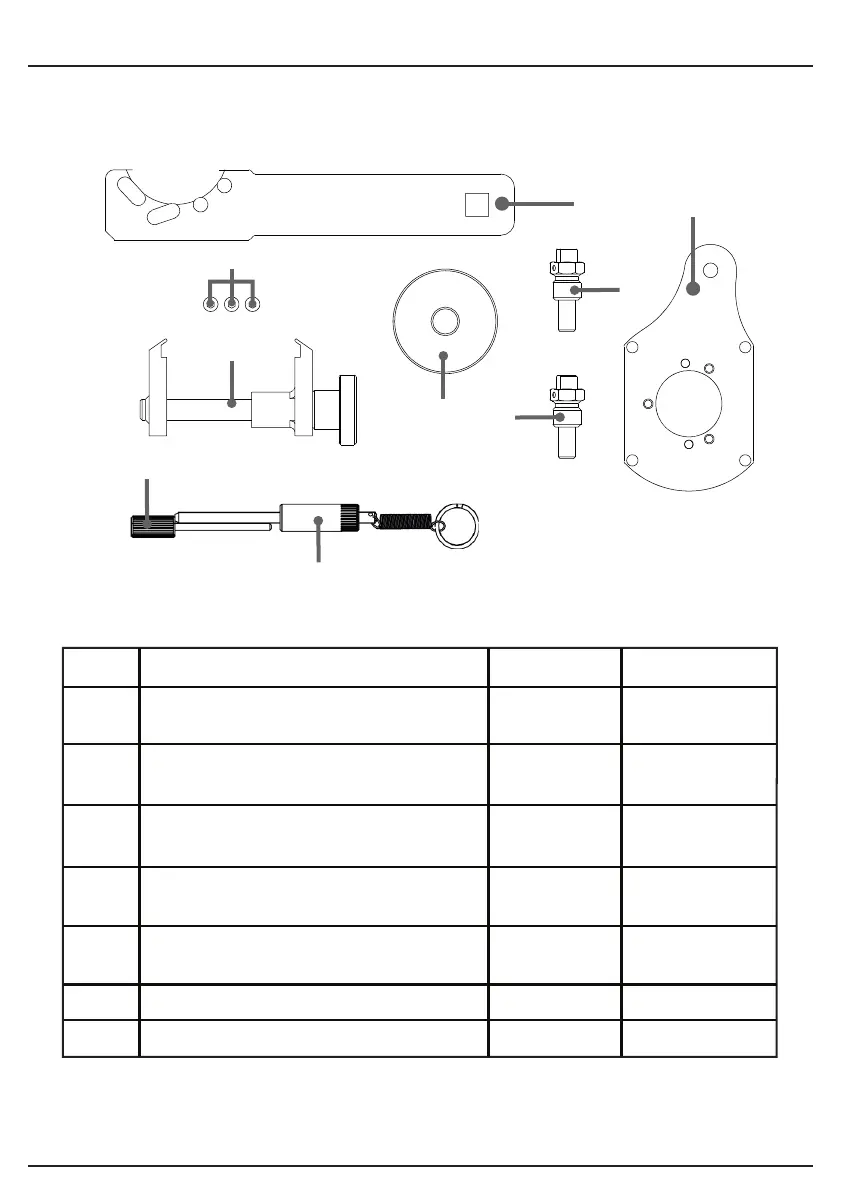

ITEM DESCRIPTION OEM STOCK No.
A Crankshaft Pulley Hub Holding Tool KM-662-C 35717
B
Camshaft Postion (CMP)
EN-51500 35718
Sensor Disc Setting Tool
C
Two Piece Inlet Camshaft
EN-50509 35719
Gear Alignment Tool
D
Timing Chain Front
EN-46775 35720
Cover Alignment Tool
E
Timing Chain Tensioner
KM-955-1 35721
Locking Pin
F Crankshaft Pin EN-46785 35722
G 2x Camshaft Locking Tool EN-50515 35723
