6. CONTENTS
- 10 -
- 7 -
Depending on manufacture and model, some engine components do change. Please check with
Autodata or the manufacturer’s data before use.
9. PROCEDURE AND APPLICATION GUIDE
• Align all timing marks as described by OEM
instructions.

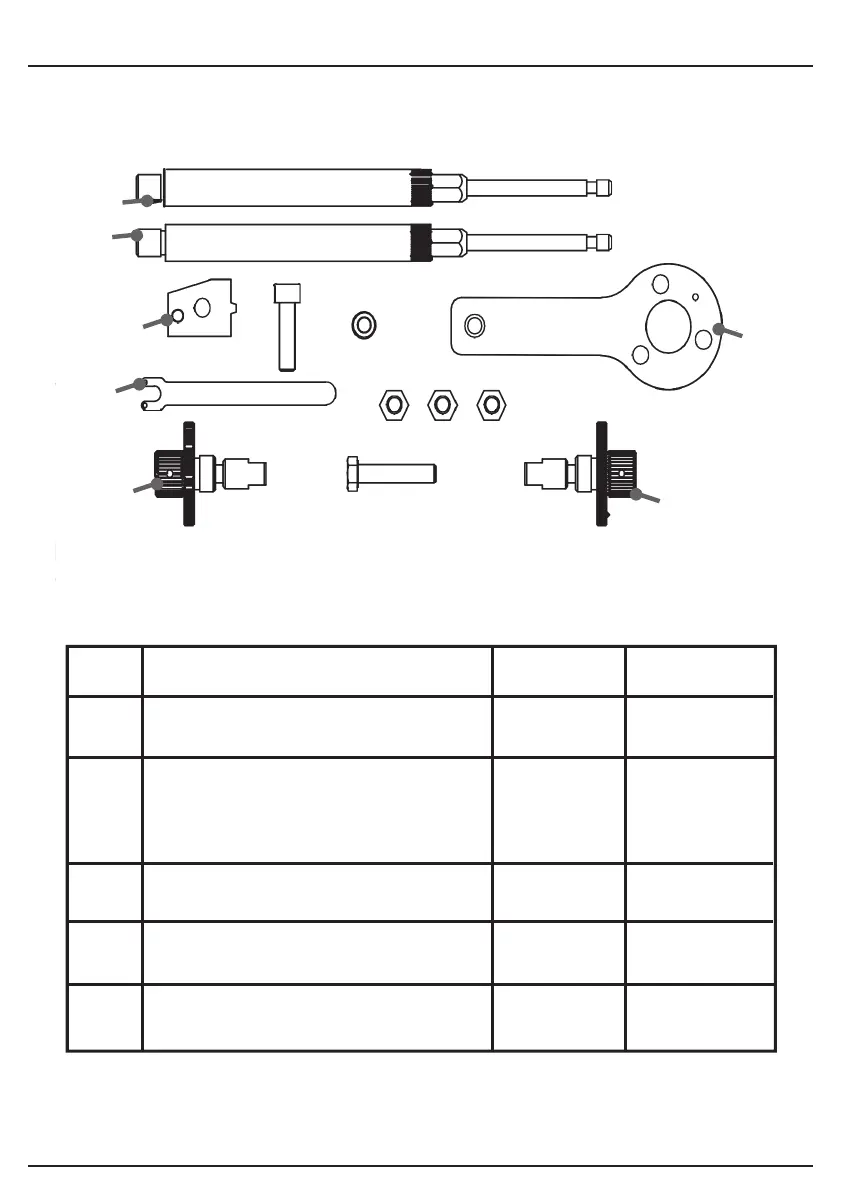

Components 1 = Piston Height Gauge x2
Components 1 are used on the 1.2 engines to
align the pistons at ½ way (90 degrees
BTDC).
Insert in place of the spark plugs from piston 1
and 2 or 3 and 4 according to OEM
instructions.
REF:
PART No
OEM DESCRIPTION
1
MM 23171 01
1 860 992 000 Piston Height Gauge p7-x2 (1,2 engines)
1 860 985 000
1 871 000 900
3
MM 23171 07
1 860 987 000 Tension Wrench
4
E10229
2 000 015 800 Camshaft Pulley Lock Assembly
5
MM 23231 01
2 000 004 500 Crankshaft Alignment Tool
2
Camshaft Alignment Tool Assy. X2
MM 23171 02
1
1
5
4
3
2
2
B
E
B
C
D
A
A
ITEM DESCRIPTION OEM STOCK No.
A 2x Piston Positioning Gauges
1 860 992 000 23939
B
2x Camshaft Alignment
1 860 985 000
23970
Locking Tool
1 871 000 900
C Tensioner Tool
1 860 987 000 23978
D
Camshaft Pulley Lock Assembly 2 000 015 800 23997
E Crankshaft Alignment Tool
2 000 004 500 24004
