– 5 –

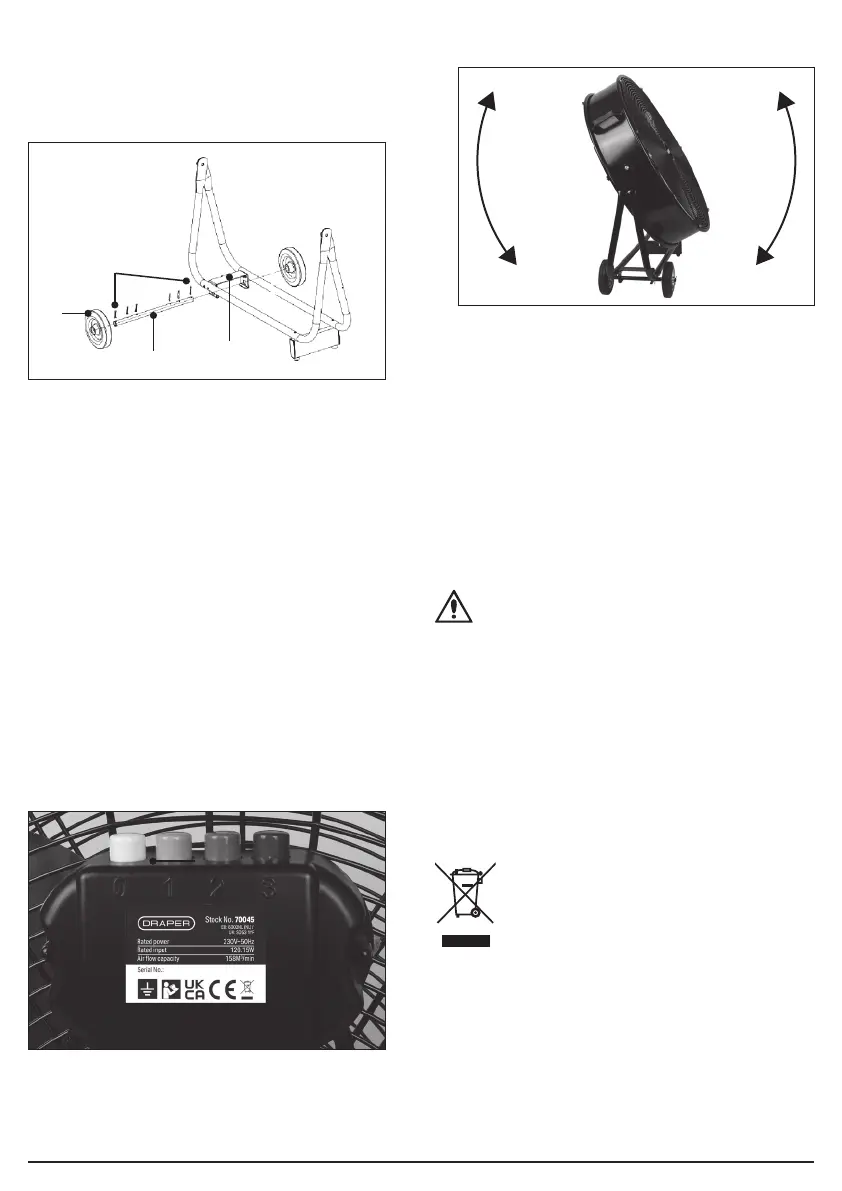

5. Assembly Instructions
Important: Before assembling this product,
read and understand all the safety instructions
listed in this manual.
1 Fig.
1. Insert the axle (6.1) through the holes in the support
bracket (3.1)
2. Insert the split pins (6.2) into the four innermost holes
of the axle to secure in place.
3. Slide a washer (6.3), then a wheel (6) and then a
second washer onto each end of the axle. Push them
up to the split pin.
4. Insert a split pin into the remaining holes at either
end of the axle to secure the wheels in place.
6. Operation
Important: Before operating this product, read and
understand all the safety instructions listed in this
manual. Ensure that the product is fully assembled and
correctly prepared for use.
6.1 Speed Control
2 Fig.
(7) (8)
Push button speed selection
0 = OFF, 1 = Slow, 2 = Medium, 3 = Fast
6.2 Tilting the Fan
3 Fig.
• To adjust the angle and direction, tilt the fan by gently
pushing or pulling on the top of the fan housing.
• DO NOT exert excess pressure or damage to the fan
may occur.
7. Maintenance and Disposal
• Before cleaning always switch o and unplug the fan
and allow the blades to stop rotating.
• Clean all the plastic components with a damp cloth.
DO NOT spray with water/cleaning agents or immerse
the fan unit in water.
WARNING! DO NOT allow any water or
cleaning detergent to enter the motor housing
or switch mechanism.
• Ensure the fan is clean, dry and correctly assembled
after cleaning and before each use.
At the end of its working life, dispose of the product
responsibly and in line with local regulations.
Recycle where possible.
DO NOT dispose of this product with domestic
waste; most local authorities provide appropriate
recycling facilities.
8. Warranty
12 months from date of purchase -
Visit drapertools.com/warranty for full details.
(3.1)
(6.2)
(6)
(6.1)
