8. Operating Instructions: Paint Spray Gun
Important: Before using this product, read and
understand all the safety instructions listed in this
manual. DO NOT make any adjustments to the paint
spray gun while the trigger is depressed.

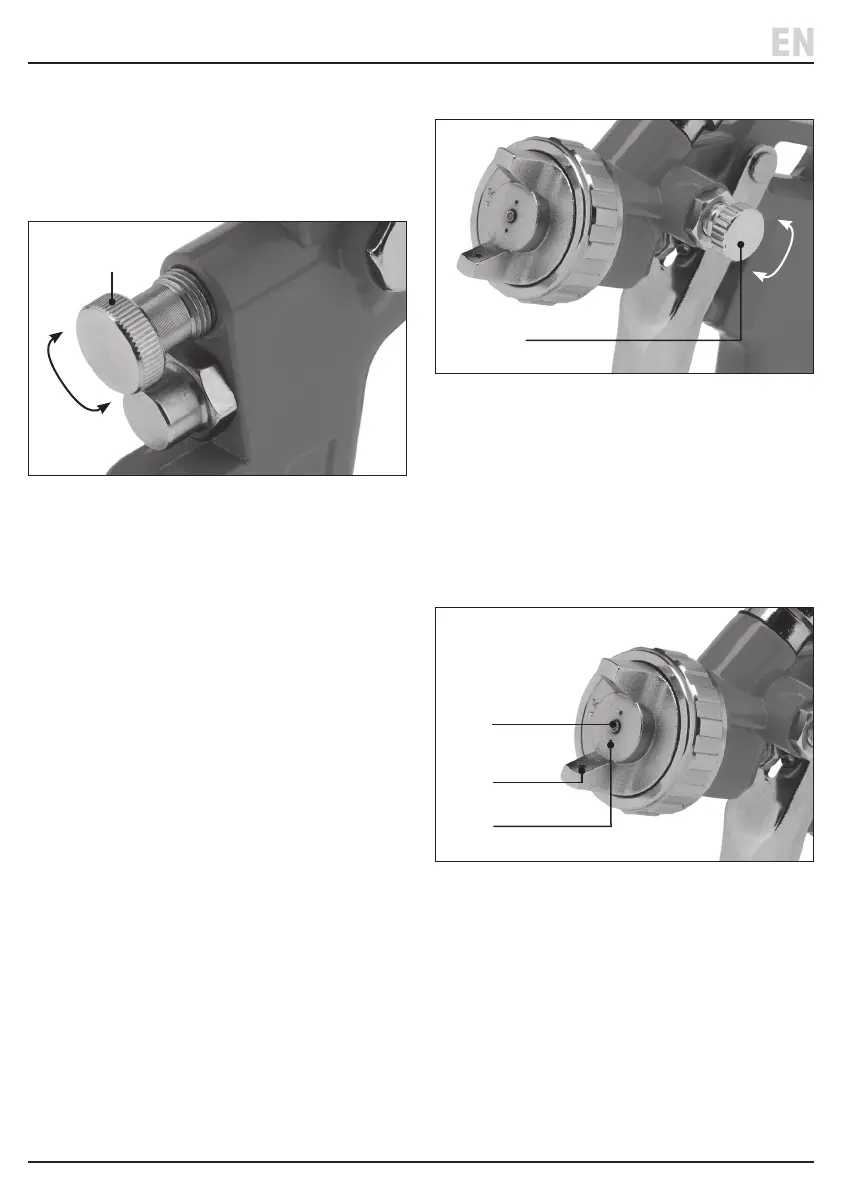

8.1 The Fluid Control Dial
The uid control dial (3) adjusts the amount of paint that
is released into the airow and the density of the spray
when the trigger is fully depressed (Fig. 6):
• To increase the paint quantity and density:
Rotate the nozzle regulator anticlockwise.
− The paint quantity should be increased when the
spray gun is positioned further from the surface or
when the paint mixture has a higher viscosity.
• To decrease the paint quantity and density:
Rotate the nozzle regulator clockwise.
− The paint quantity should be decreased when the
spray gun is positioned closer to the surface or
when the paint mixture has a lower viscosity.
8.2 The Spray Control Dial
The spray control dial (7) adjusts the shape of the paint
jet released from the nozzle. The spray control dial can be
rotated more than 360° (Fig. 7).
• Fuller, atter pattern: Rotate the dial clockwise.
• Narrower, rounder pattern: Rotate the dial
anticlockwise.
8.3 The Air Cap
The air cap (1) has three types of opening that aect the
pattern of the uid spray (Fig. 8):
• A hole for the nozzle head from which the uid is
dispersed (28).
• Atomising air holes (29) that break the uid into a
ne spray.
• Air horn holes (30) that shape the spray pattern
as required.
(3)
(7)
(29)
(30)
(28)
