- 15 -

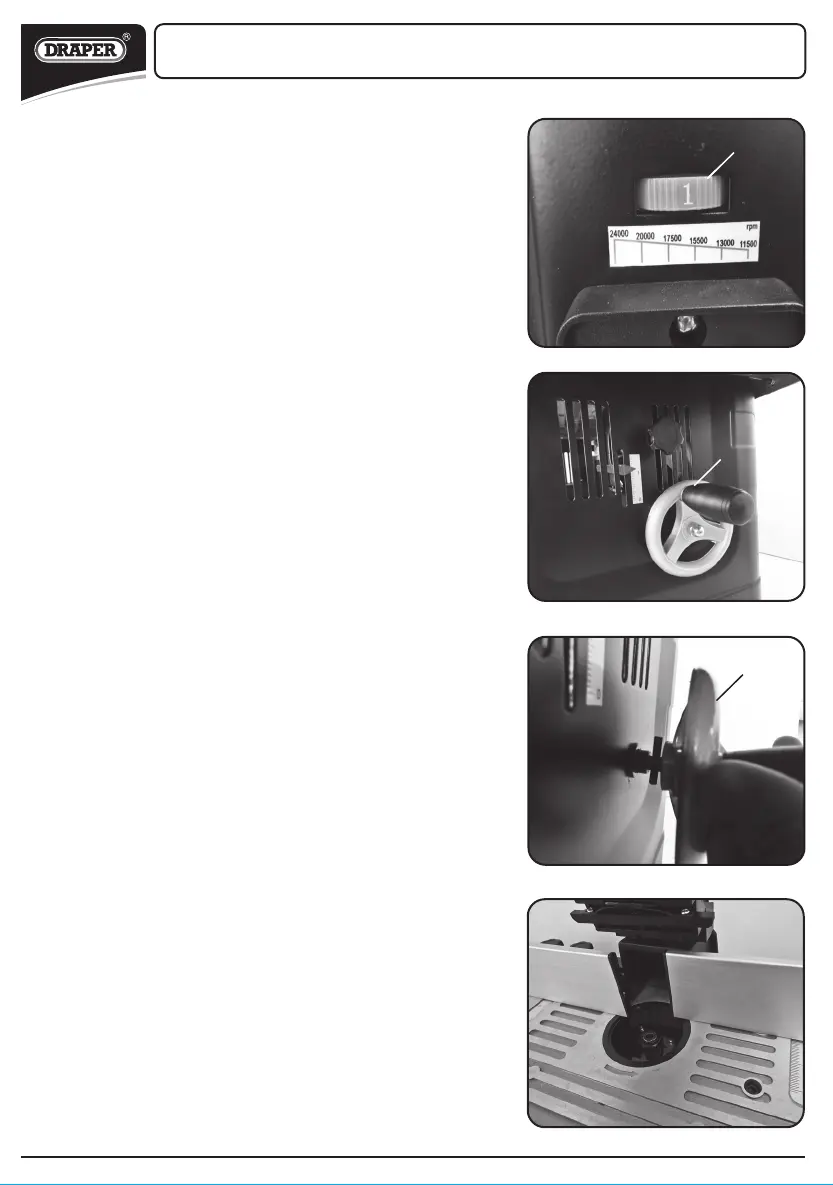

OPERATION AND USE
FIG.28
- Variable Speed (Fig.28):
- The spindle moulder is fitted with a variable speed dial
, the dial has 5 settings with 1 being the slowest
and 5 being the highest
- Router bit height adjustment (Figs.29&30):
- The spindle moulder has a spindle travel of 0-40mm,
the height can be changed by turning the hand wheel
; left or right depending on whether the router bit
needs to go up or down, the height can be measured
on the adjacent scale and locked off using the adjacent
plastic hand wheel
- Attaching the metal height adjustment hand wheel:
- Line up the pin in the shaft with the cut-out on the
hand wheel ; and secure with the dome headed nut
Y supplied
- Adjustable left fence plate:
- The left fence plate can be adjusted to support the cut
end of a work piece when using a cutter to reduce the
size of material. The fence can be brought forward by
loosening the middle plastic nut, the position of the
fence can be gauged by using the measuring scale on
the table.
FIG.29
FIG.30
;
FIG.31
;
