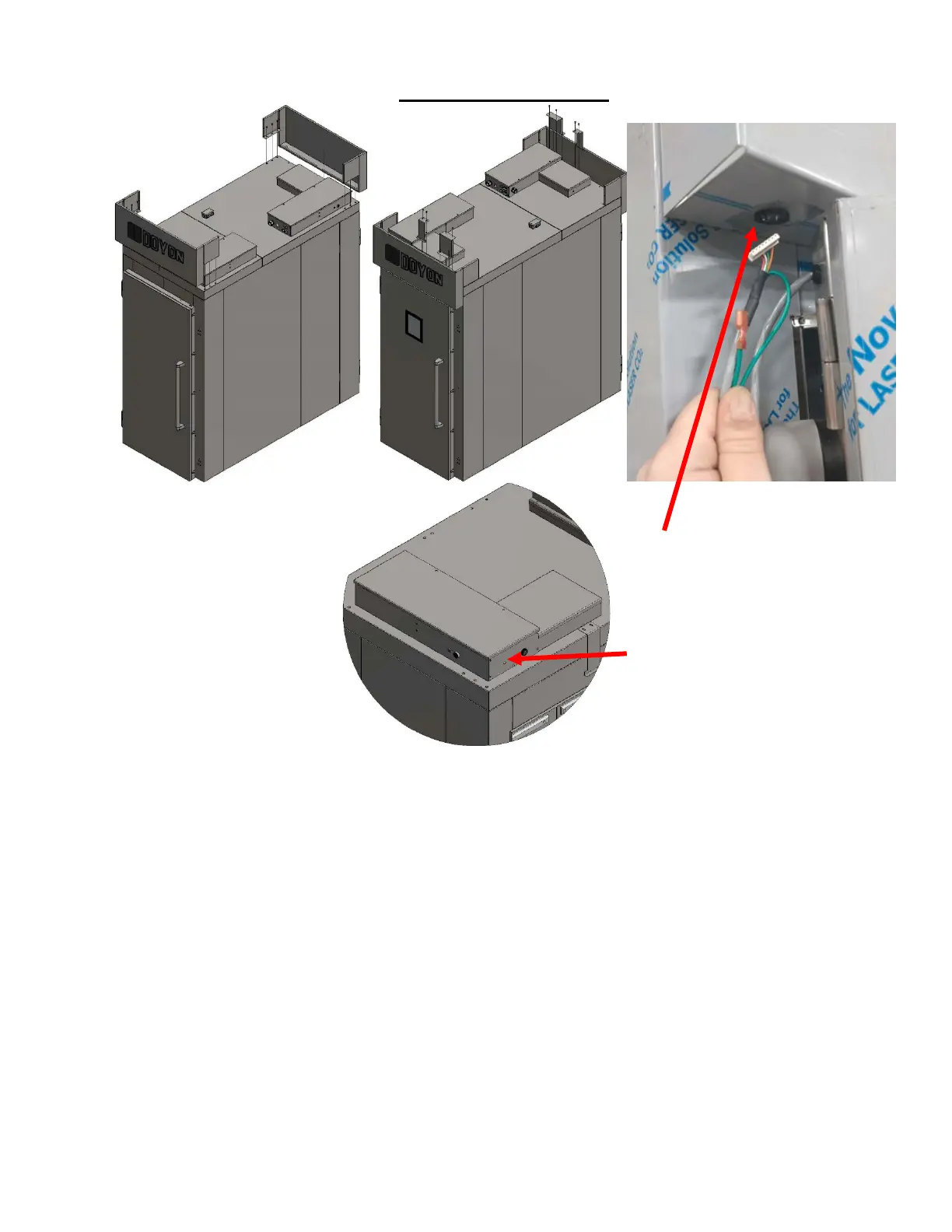

INSTALLING FACADES
• ATTACH FAÇADE(S) AS SHOWN WITH (6) ¼-20 FLANGE SCREWS (53-0840) PER
FACADE
• INSTALL FACADE SUPPORTS (KDP_0048) AND DOOR SWITCH BRACKET (KDP_0049)
WITH 10-32 SCREWS AND ¼-20 SCREWS (2 EACH BRACKET)
o NOTE 1: FACADE SUPPORT (KDP_0048) INTERLOCKS WITH FAÇADE
• CONNECT DOOR SENSOR (REFER TO SUPLLIED ELECTRICAL DRAWING)
o NOTE 2: DOOR SWITCH BRACKET(KDP_0049) MUST BE INSTALL ON SAME
SIDE AS DOOR HANDLE
ATTACH DOOR SENSOR WIRES TO THE LEADS IN THE ELECTRICAL
BOX
• RUN PIGTAIL ATTACHED TO THE CONTROL DOOR THOUGH THE OPENING ON THE
FACADE AND ROUTE IT INTO THE CONTROL BOX
o WHEN ROUTED, PLUG THE CABLE TO PORT LABELED “TO DISPLAY” ON
THE CONTROL BOARD
o PLUG GREEN TERMINAL TO THE PORT LABELED “GND” ON THE CONTROL
BOARD
o ATTACH CABLE RESTRAIN TO THE CABLE AND BOX WHEN DONE
FIRST FEED CONTROL DOOR CABLE
THORUGH HOLE IN FACADE
AFTER THE CONTROL DOOR CABLE OF FED
THORUGH HOLE IN FAÇADE, FEED IT INTO THE
CONTROL BOX VIA THIS HOLE, AFTERWARDS
ADD A CABLE RESTRAIN
