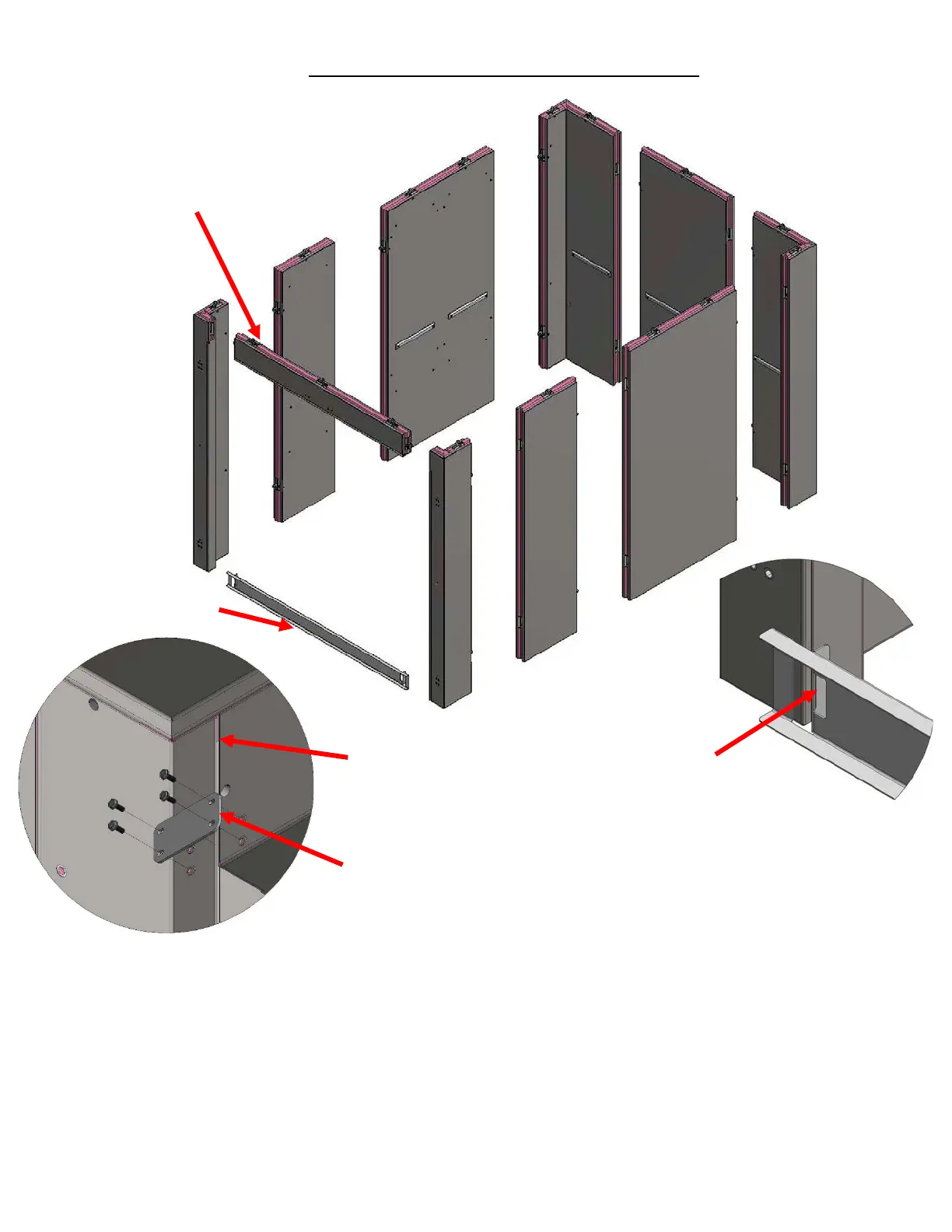

ERECTING WALLS (NON PASS THRU UNIT)

• WHILE REFFERING TO THE WALL PANEL CONFIGURATIONS DIAGRAM, ERECT THE

REAR WALL PANELS FIRST AND LOCK THEM TOGETHER USING A 5/16 HEX WRENCH TO

ROTATE THE LOCKS UNTIL THE LOCK ARE ENGAGED.

• AFTER THE REAR PANELS ARE LOCKED, CONTINUE ATTACHING/LOCKING PANELS TILL

ALL WALL PANELS ARE ATTACHED.

• AFTER INSTALLING THE HEADER, INSTALL TWO REFORCEMENT BRACKETS, USING

FOUR 10-32 HEX HEAD SCREWS EACH, INSIDE OF THE UNIT WHERE THE HEADER AND

CORNERS MEET

• WHEN FINISHED ERECTING PANELS, ATTACH INSTALLATION JIG TO THE FRONT

CORNERS

SUPPLIED INSTALLATION

JIG

TO TEMPERALY ATTACH INSTALLATION

JIG, MAKE SURE IT IS SECURLY FITTED

TO THE CORNERS. WHEN FITTED,

CLAMP THE FLANGE TO THE DOOR

GASKET CHANNEL WITH TWO SETS OF

LOCKING PLIERS

HEADER

KDP_0210-A

SILICONE THESE

SEAMS BEFORE

INSTALL KDP_0210-A
