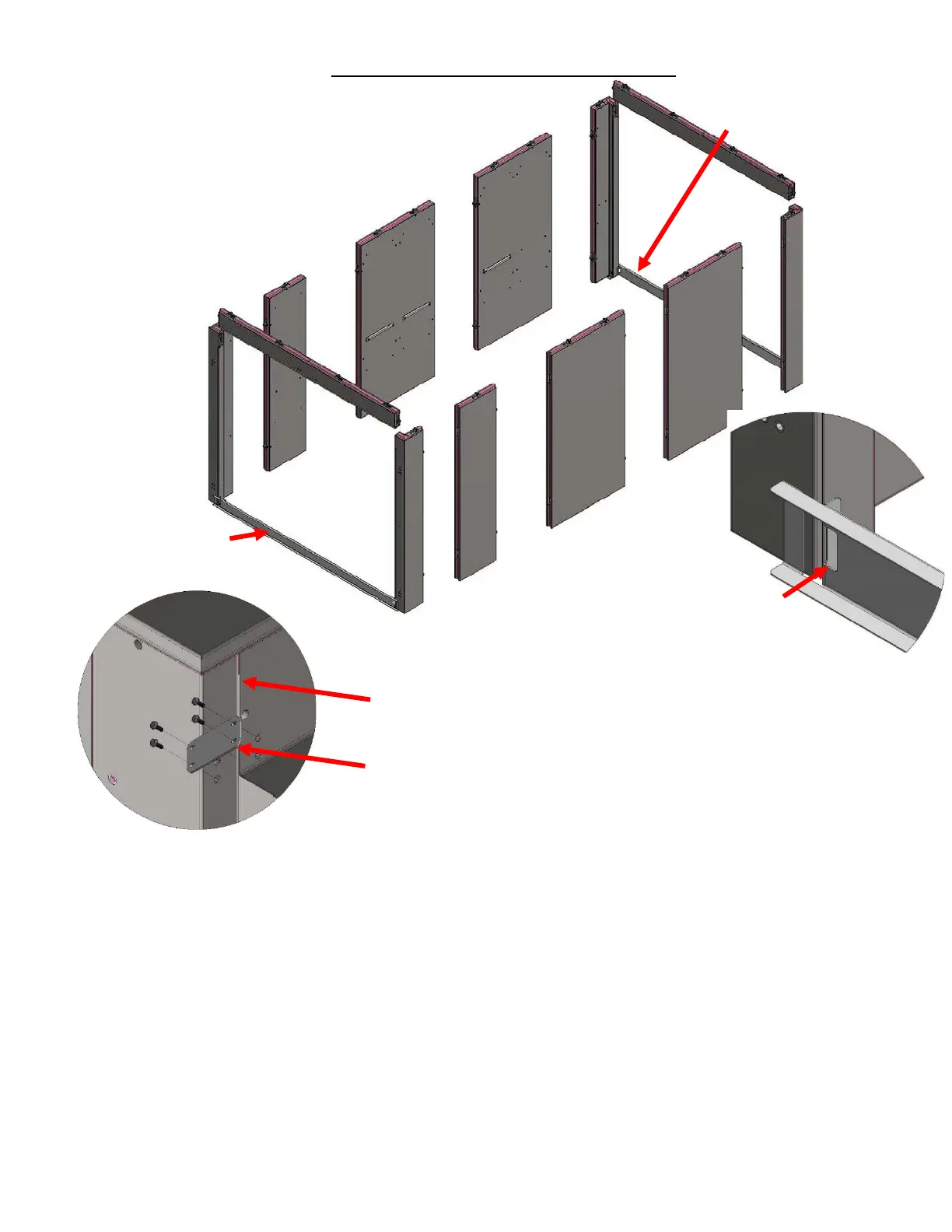

ERECTING WALLS (PASS THRU UNIT)
• PASS THROUGH UNITS USE A ADDITIONAL SET OF FRONT PANEL IN THE REAR AS
SHOWN IN THE WALL PANEL CONFIGURATIONS DIAGRAM
• WHILE REFFERING TO THE WALL PANEL CONFIGURATIONS DIAGRAM, ERECT THE
REAR PANELS FIRST AND LOCK THEM TOGETHER USE A 5/16 HEX WRENCH TO ROTATE
THE LOCKS UNTIL THE LOCK ARE ENGAGED.
o WHEN THE REAR PANELS ARE ERECTED, ATTACH INSTALLATION JIG TO THE
REAR CORNERS
• AFTER THE REAR PANELS ARE LOCKED AND INSTALLATION JIG INSTALL, CONTINUE
ATTACHING/LOCKING PANELS TILL ALL WALL PANELS ARE ATTACHED.
• AFTER INSTALLING THE HEADERS, INSTALL FOUR REFORCEMENT BRACKETS, USING
FOUR 10-32 HEX HEAD SCREWS EACH, INSIDE OF THE UNIT WHERE THE HEADERS AND
CORNERS MEET
• WHEN FINISHED ERECTING PANELS, ATTACH INSTALLATION JIG TO THE FRONT
CORNER.
TO TEMPERALY ATTACH INSTALLATION
JIG, MAKE SURE IT IS SECURLY FITTED
TO THE CORNERS. WHEN FITTED,
CLAMP THE FLANGE TO THE DOOR
GASKET CHANNEL WITH TWO SETS OF
LOCKING PLIERS
SUPPLIED INSTALLATION
JIG
SUPPLIED INSTALLATION
JIG
KDP__0210-A
SILICONE THESE
SEAMS BEFORE
INSTALL KDP_0210-A
