05 | NOMENCLATURE

01 Antenna/antenna connection

02 PIR LED indicator

03 each 30 infrared LEDs

04 Light sensor

05 Camera lens

06 Motion detector (PIR sensor)

07 Tension lock

08 Eyelet for U-lock (lock optional)

09 Microphone

10 SIM card slot

11 SD card slot

12 QR Code (serial number)

13 TEST button

14 Button SD Format

15 Reset button

16 Slide control (ON/OFF)

17 LED status indicators

17a) Operating status

17b) Signal strength

17c) Battery status

17d) SD card status

17e) Network status

17f-g) DÖRR Cloud error indicators

18 Battery compartment

18a) 12 battery slots type AA

18b) 4 battery slots type 18650

19 USB-C port

20 Connection external battery DC 12V

21 ¼" thread mount

22 Eyelet for cable lock (lock optional)

23 Eyelets for mounting strap

24 Nano-SIM + Micro-SIM + Mini-SIM Adapter

25 USB-C data cable

26 Mounting strap

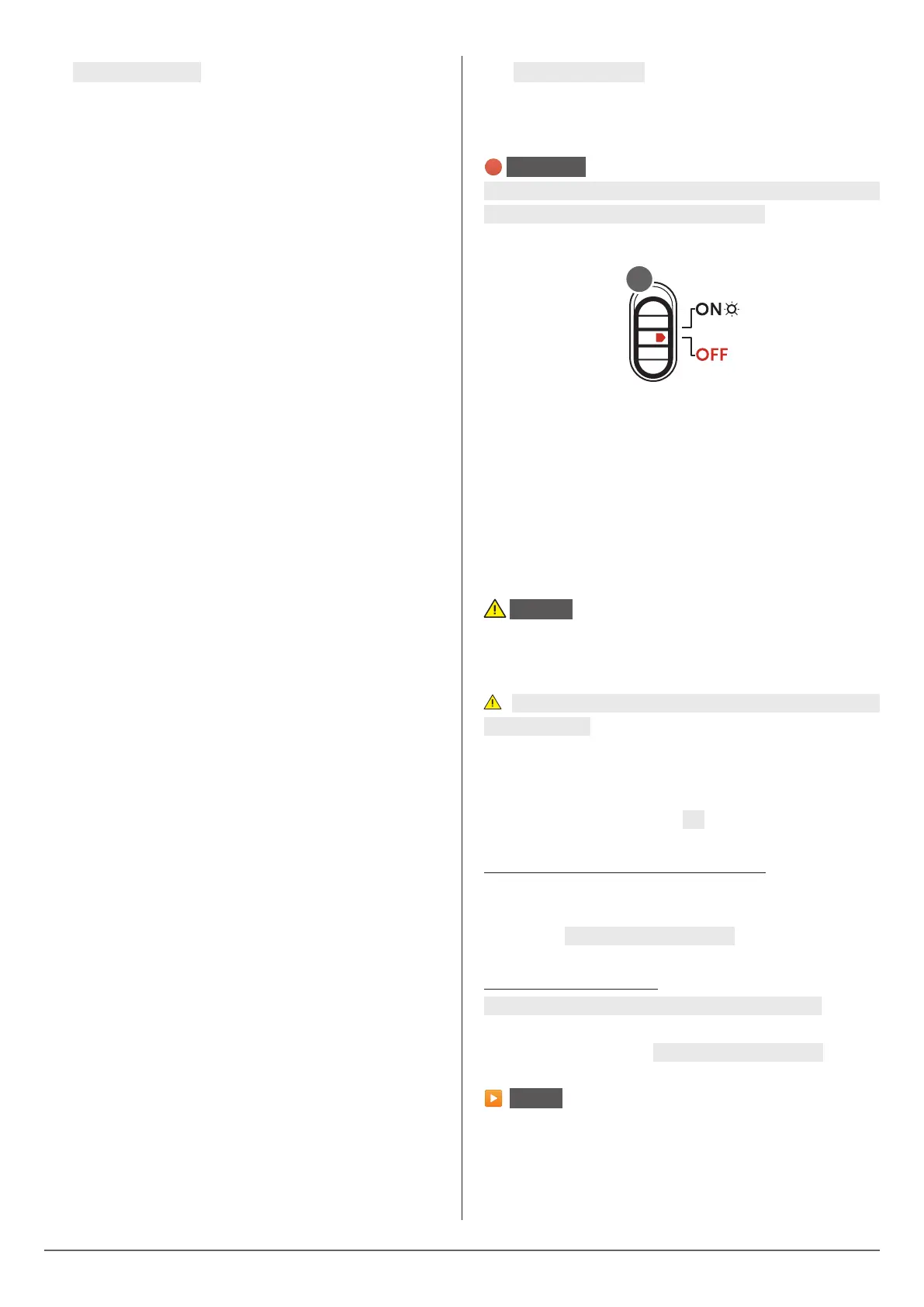

06 | COMMISSIONING

Remove the protective foil from the PIR sensor (06).

🔴

IMPORTANT

To avoid camera damages, make sure that camera is switched o

(slide control 16 = OFF) for the following steps!

06.1 Mounting the antenna

Remove the yellow protective cap from the antenna connection (01)

and screw on the supplied antenna.

06.2 Inserting the batteries/rechargeable batteries

CAUTION

Make sure to use only fresh Mignon LR6 1.5V Alkaline Man-

ganese batteries or rechargeable NiMH or Lithium batteries size

AA or 18650 Hightop Li-Ion batteries of the same type and brand.

Never combine Alkaline Manganese batteries with NiMH or

Lithium batteries! When inserting the batteries please respect the

correct polarity (+/-).

Open the camera releasing the lateral tension lock (07). Make sure that

the slide control (16) is on position OFF.

Insert AA batteries / rechargeable AA batteries:

Insert 12x 1.5V batteries or suitable NiMH or lithium rechargeable

batteries of size AA (all not included) into the 12 vertical battery slots

type AA (18a). Ensure correct polarity (+/-).

Insert 18650 Li-Ion batteries:

Please fully charge rechargeable batteries before use. Insert 4x

Li-ion batteries type 18650 with hightop (not included) into the 4

horizontal battery slots (18b). Ensure correct polarity (+/-).

▶

NOTICE

If using NiMH or lithium AA batteries, please select „Bat-

tery Type“ as NiMH or Lithium in the APP/Web menu la-

ter to ensure an accurate battery status display.

Alkaline-manganese AA batteries and 18650 batteries are automa-

tically detected by the camera – no input is required.
