ENGLISH
9
Flush-mounted models Surface-mounted models

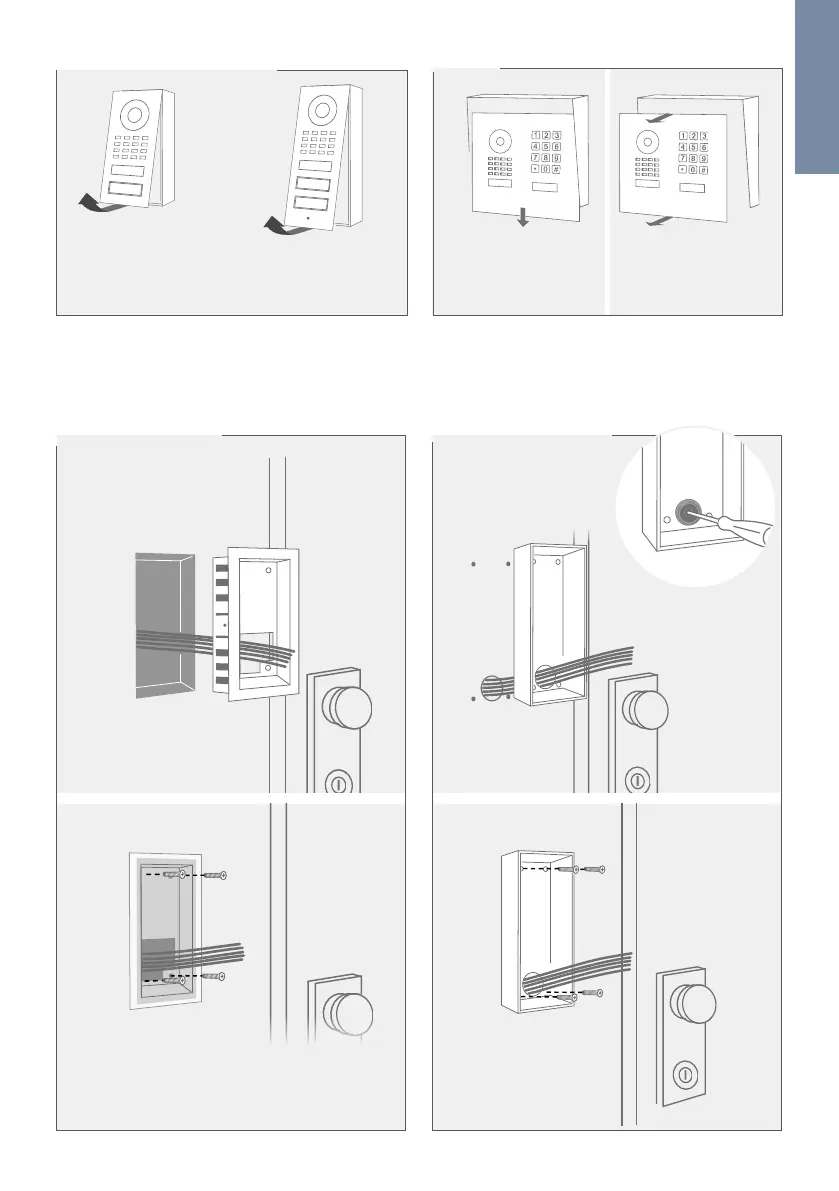

. MOUNTING
Lead all cables and wires you want to connect to the device through the mounting housing. Screw the
wall-mounting bracket of the mounting housing to the wall.
Pull down the front
panel.
Pull the front panel with
attached Main Electrical
Unit out of the mounting
housing (backbox).
D1101KH
Pull the front panel with attached Main Electrical
Unit out of the mounting housing (backbox).
Before mounting: Pierce
through the middle of the
rubber seal for the cable
entry using a screwdriver.
D1101V D1102V
Please make sure that the outer frame of the flush-
mounted housing rests on the outside of the wall
and that the edge of the flush-mounted housing
is sealed all around against moisture from the
outside.
