OPTION
Tripod mounting

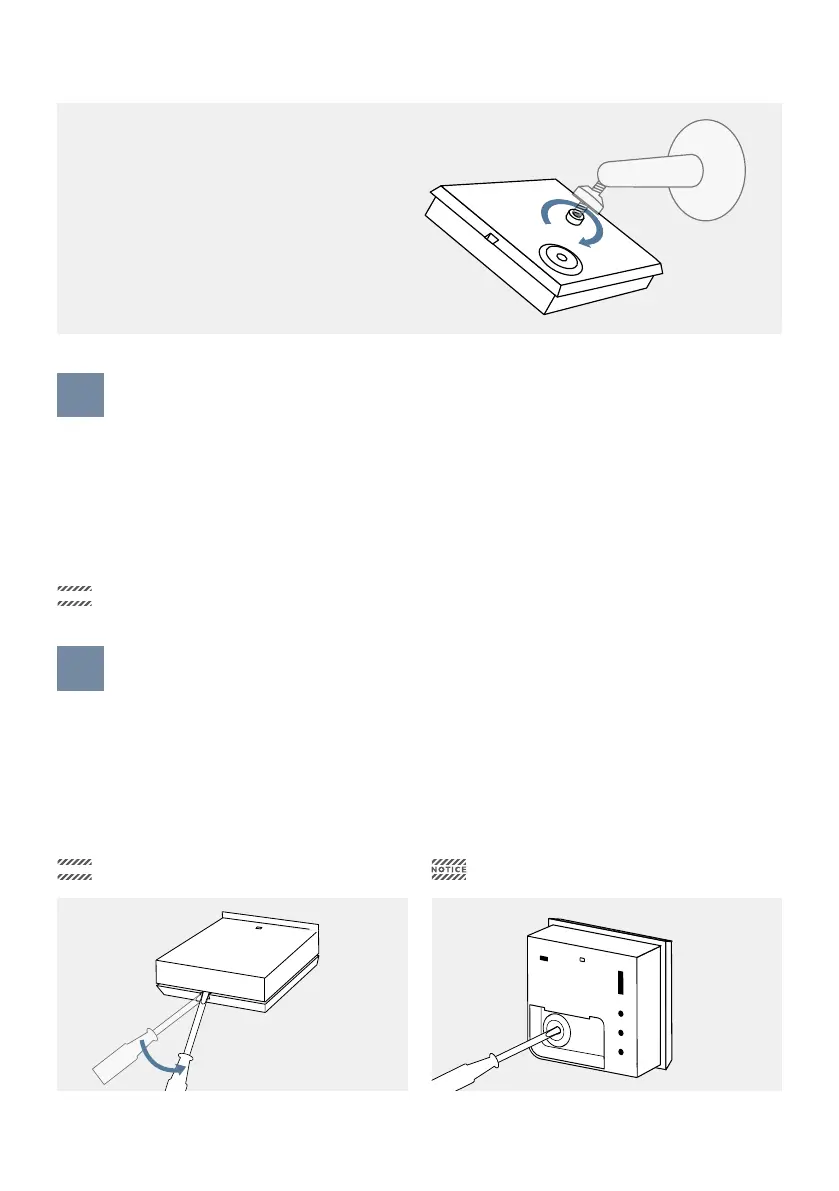

The device can be mounted on a tripod. Use the
tripod socket on the back of the unit (standard tripod
thread according to DIN 4503-1 / ISO 1222).
Tripod is not included in the scope of delivery.
POWER SUPPLY
The device can be supplied with power via a separate power supply unit (5 - 48 V DC, power consumption max.
1W), not included in the scope of delivery.
If you are pairing the device with the DoorBird A1131 IP Video Mini Dome Camera, a special connection cable
with a socket (type: M8 3P) at one end of the cable is included. This cable allows the DoorBird A1131 IP Video
Mini Dome Camera to both supply the device with power and receive alarm signals from it. The DoorBird A1131
IP Video Mini Dome Camera then provides the necessary power supply via the red and black wires of the
connection cable.
NOTICE
Do not connect the device to a power supply yet.
CONNECTING THE DEVICE
The device is designed to switch any standard contacts in the low-voltage range of 24 V DC/AC, 1 A, e.g., for
alarm contacts, light controls, etc. If you want to use a device with more than 24 V DC/AC, such as a lamp or
door opener with 110-240 VAC, you need an additional switching relay with 110 - 240 V AC, as the device is
only designed for a maximum of 24 V DC/AC.
The wires of the connection cable can be conveniently and securely connected to the labeled screw terminal on
the device. You can now connect all the necessary wires to the device.
Pierce through the middle of the rubber seal for the
cable entry using a screwdriver.
Lever off the cover with a screwdriver.
NOTICE
Please remove any cables and wires from the
connection ports of the device that you do not need.
Please take care when connecting the cables and wires.
Connecting the cables and wires the wrong way may
damage the device.
