6

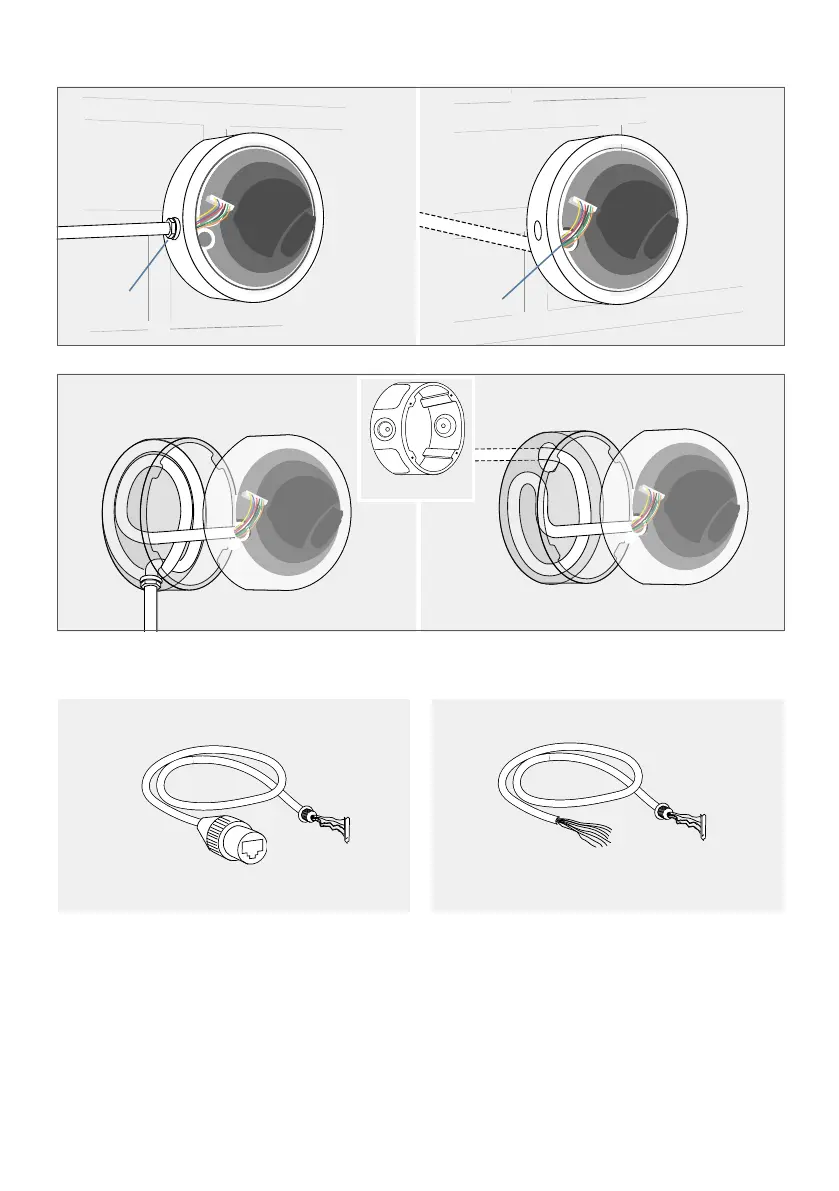

. CABLING
Cable entries
Cable entry option 1
(cable runs on the wall)
Cable entry option 2
(cable comes from within the wall)
Cabling with Cable Management Box –
available separately
DoorBird A8009
. CABLE SELECTION
Cable A (pre-installed)
PoE: Use the pre-installed cable A to connect the
device to the network via an RJ45 plug.
WiFi: not applicable
Cable B
PoE: Use the cable B to connect the device to
the network via the open wire ends, by crimping your
own RJ45 network jack or plug to it.
WiFi: Use cable B to connect the device to an external
57 V DC power supply.
