www.domo-elektro.be 25
FR

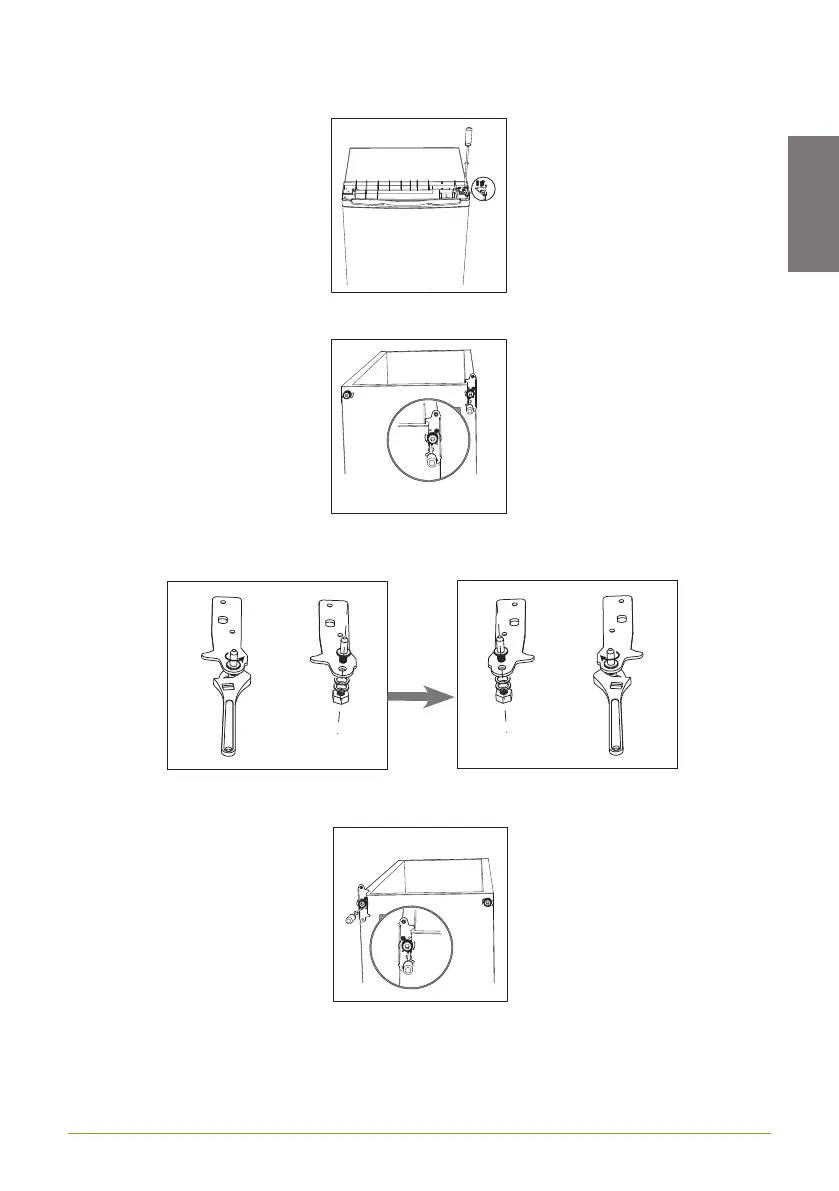

• Retirez les vis puis enlevez la charnière supérieure qui tient la porte en place. Enlevez la porte et
placez-la sur une surface rembourrée pour éviter qu’elle ne se raye.
Reverse Door
Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner.
Ensure the unit is unplugged and empty.
To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid
so that it will not slip during the door reversing process.
All parts removed must be saved to do the reinstallation of the door.
Do not lay the unit flat as this may damage the coolant system.
It' s better that 2 people handle the unit during assembly.
1. Remove two screws at rear side of top cover.
2. Remove top cover and thermostat knob, then place it aside.
3. Unscrew top hinge and then remove door and place it on a soft pad to
avoid scratch.
4. Unscrew bottom hinge. Then remove the adjustable feet from both
side.
7
unscrew
• Retirez la vis du bas, le support de charnière et le pied réglable du bas de l’appareil.
Reverse Door
Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner.
Ensure the unit is unplugged and empty.
To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid
so that it will not slip during the door reversing process.
All parts removed must be saved to do the reinstallation of the door.
Do not lay the unit flat as this may damage the coolant system.
It' s better that 2 people handle the unit during assembly.
1. Remove two screws at rear side of top cover.
2. Remove top cover and thermostat knob, then place it aside.
3. Unscrew top hinge and then remove door and place it on a soft pad to
avoid scratch.
4. Unscrew bottom hinge. Then remove the adjustable feet from both
side.
7
unscrew
• Détachez la goupille de la charnière-étrier. Retournez l’arceau, puis xez la goupille.
5. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.
6. Refit the bracket fitting the bottom hinge pin. Replace both adjustable
feet.
7. Place the door back on. Ensure the door is aligned horizontally and
vertically, so that the seals are closed on all sides before finally
tightening the top hinge.
8. Put the top cover and fix it with 2 screws on the back.
Unscrew
Screw
8
Reverse Door
9. Fix the thermostat knob.
screw
• Fixez les vis, le support de charnière et le pied réglable sur le côté opposé. Sécurisez la xation
sans trop resserrer.
5. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.
6. Refit the bracket fitting the bottom hinge pin. Replace both adjustable
feet.
7. Place the door back on. Ensure the door is aligned horizontally and
vertically, so that the seals are closed on all sides before finally
tightening the top hinge.
8. Put the top cover and fix it with 2 screws on the back.
Unscrew
Screw
8
Reverse Door
9. Fix the thermostat knob.
screw
