VT 402 – 3G SDI to HDMI Converter
Product code: 101272
To connect the device to other devices, follow the steps below:
Insert 2 screws into the 2 x mounting brackets (06) and tighten them, to mount the device on a
display or a monitor. See Fig. 07.

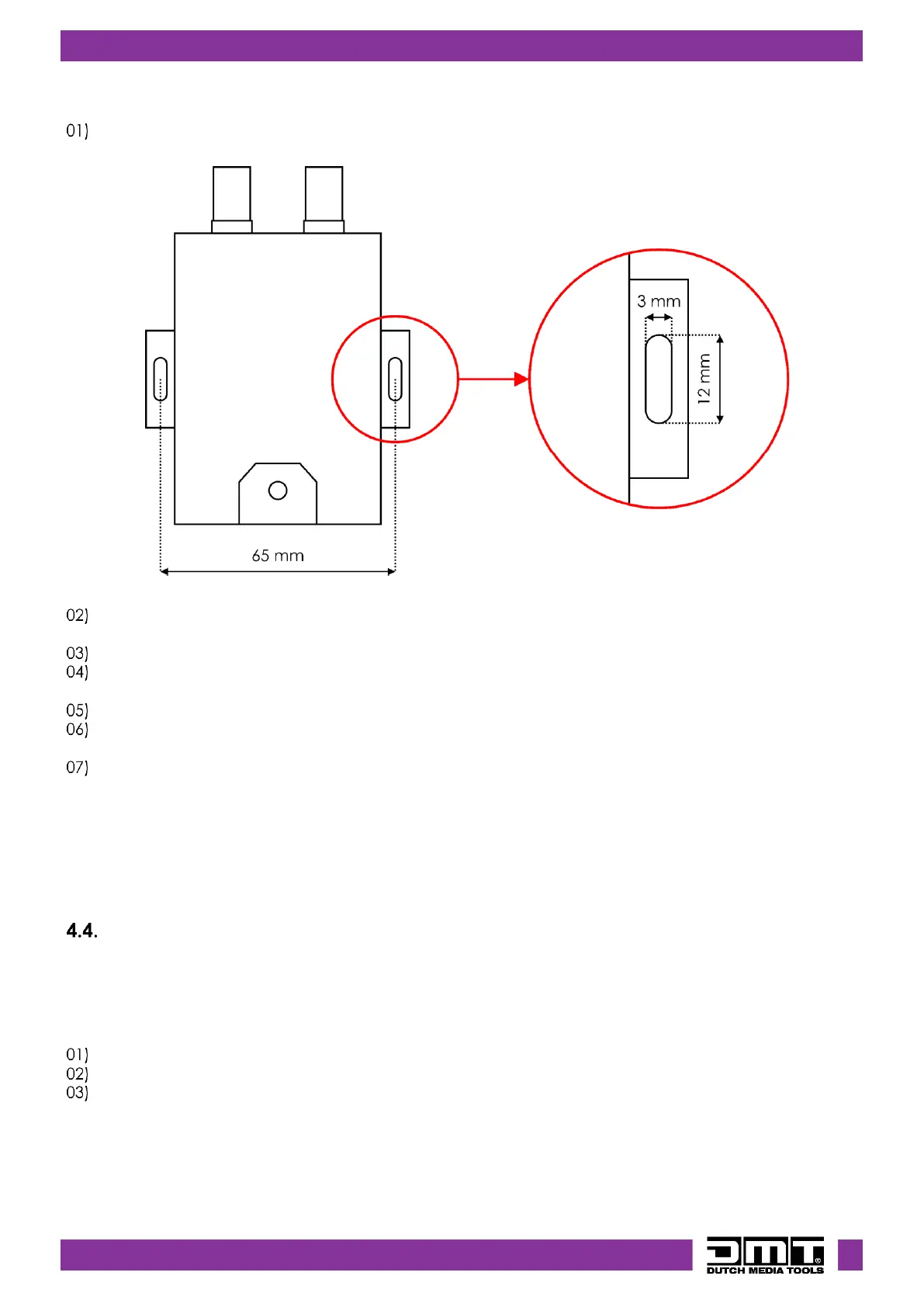

Fig. 07
Connect an SDI source device (digital camera or a surveillance camera) to the BNC SDI video signal
connector IN (05). See Fig. 06 on page 9.
Set the SDI source device to SDI output mode (if necessary).
Connect devices (TV or an SDI device) to the BNC SDI video signal connector LOOP (06). See Fig. 06
on page 9.
Connect display devices (TV) to the HDMI signal connector OUT (01). See Fig. 06 on page 9.
Connect the device to the power supply. See 4.4. Connecting to Power Supply on page 10. The
power LED indicator (Red) (03) will turn on.
See if the device works correctly. See 4.5. LED Statuses on page 11 for more information.
Notes:
● If the resolution of the SDI source is supported by the display devices, the SDI signal will be sent to the
BNC SDI video signal connector LOOP (06).
● If an HDMI display device is present, the SDI signal will be converted and sent to the HDMI signal
connector OUT (01).
Connecting to Power Supply
Connect the device to the socket-outlet with the delivered USB power adapter. Use only the USB power
adapter delivered with the device.
To connect the device to the power supply, follow the steps below:
Connect the delivered USB cable to the delivered USB power adapter.
Plug the USB cable into the micro USB power connector IN (04).
Plug the USB power adapter into the socket-outlet.
Notes:
● Make sure that the socket-outlet is easily accessible.
● Disconnect the USB power adapter from the socket-outlet when the device is not in use.
