5.5. Power Linking of Multiple Devices
This device supports power linking. Power can be relayed to another device via the power OUT connector.
Note that the input and the output connectors have different designs: one type cannot be connected to the
other.
Power linking of multiple devices must be carried out only by instructed or skilled persons.
WARNING
Incorrect power linking may lead to overload of the electrical circuit and result in serious
injuries and damage of property.
To prevent overload of the electrical circuit, when power linking multiple devices:
•
Use cables with sufficient current-carrying capacity. The power cable supplied with the device is not
•
suitable for power linking of multiple devices.
•
Make sure that the total current draw of the device and all connected devices does not exceed the rated
•
capacity of the power cables and the circuit breaker.
•
Do not link more devices on one power link than the maximum recommended number.
•
Maximum recommended number of devices:
• at 100–120 V: 5 devices Alpha Series A2.6i•
• at 200–240 V: 10 devices Alpha Series A2.6i•
To connect multiple devices on one power link, follow the steps below:
01) Make sure that the devices are not connected to the power supply.01)
02) Connect the Power OUT (12) of the 1st device to the Power IN (14) of the 2nd device with the supplied02)
power cable.
03) Repeat step 2 to connect the rest of the devices in the setup, as shown in Fig. 61.03)
04) Connect the 1st device on each row, respectively the 1st device on one power link, to the power supply.04)
Note:
Make sure that maximum recommended number of devices on one power link is not exceeded.

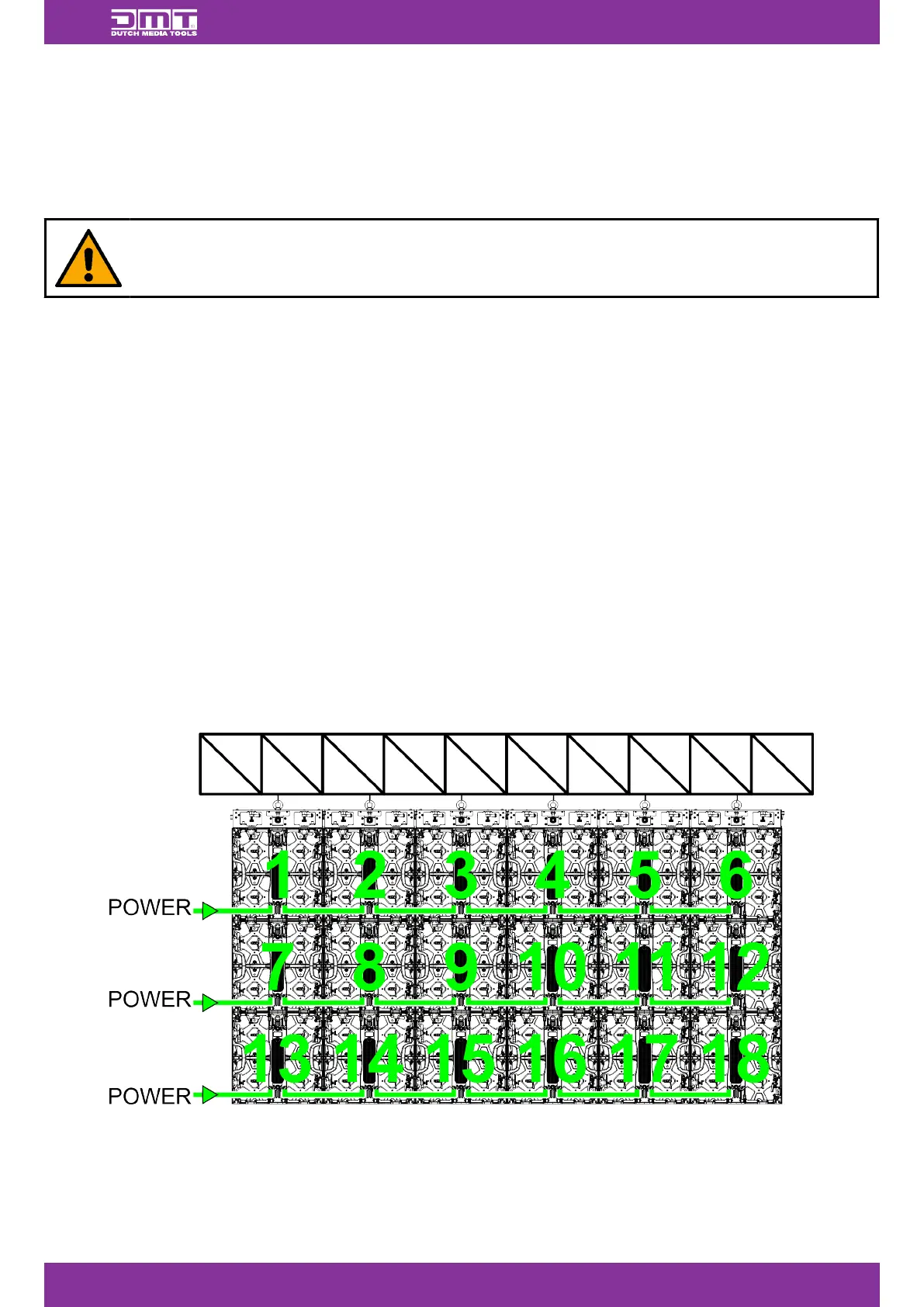

Figure 61
30
c
Product code: 101811
Alpha Series A2.6i
