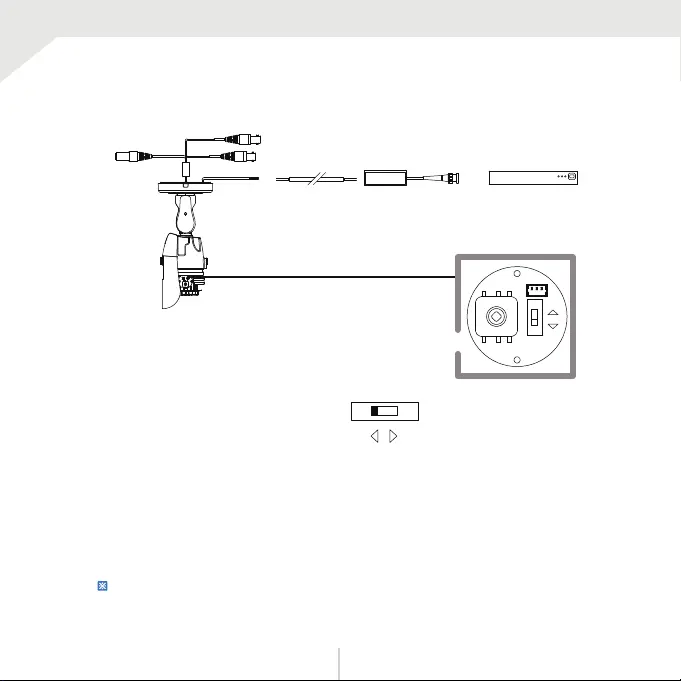

Use the diagram below to connect to an Universal DVR or CRT Monitor properly.

UTP Video Output Mode

Right



Up

UTP COAX

Down

UNIVERSAL DVR







UTP/Coax switch

UTP COAX

Balun

(Receiver at DVR side)

UNIVERSAL (UTP)

NOTE

:

When switching to UTP/Coax switch to UTP, the image will not be output when switched to Coax.

12VDC/24VAC

CVBS

16
