Compressor™
3
1 Introduction

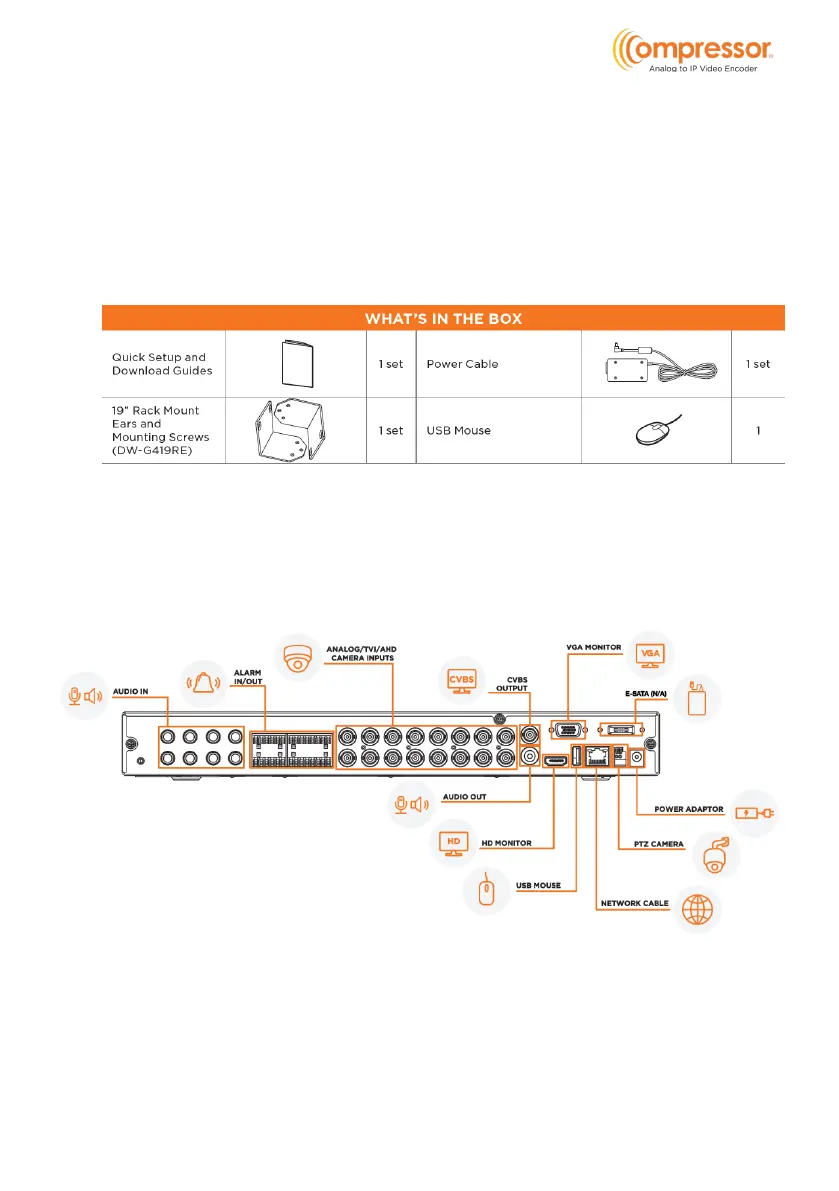

1.1 What's in the Box
Make sure that you have the following items supplied with your encoder. If any of
these items are missing or damaged, notify your vendor immediately. Keep the
packing utilities for moving or storage purposes afterward.
1.2 Connections
Follow the diagram below to connect all necessary external devices to your
encoder. Please note that the number of ports available may differ based on the
model. See the product's specifications at the end of this manual for more
information.
• Video Connections
Video Output: The encoder supports VGA and True HD video output for local
display. You can connect to a monitor (not included) through these video
output interfaces simultaneously or independently.
• Audio Connections
Audio Input: Connect to microphone, pickup, etc. (RCA)
