User Manual – ALP222e
14.2 LED

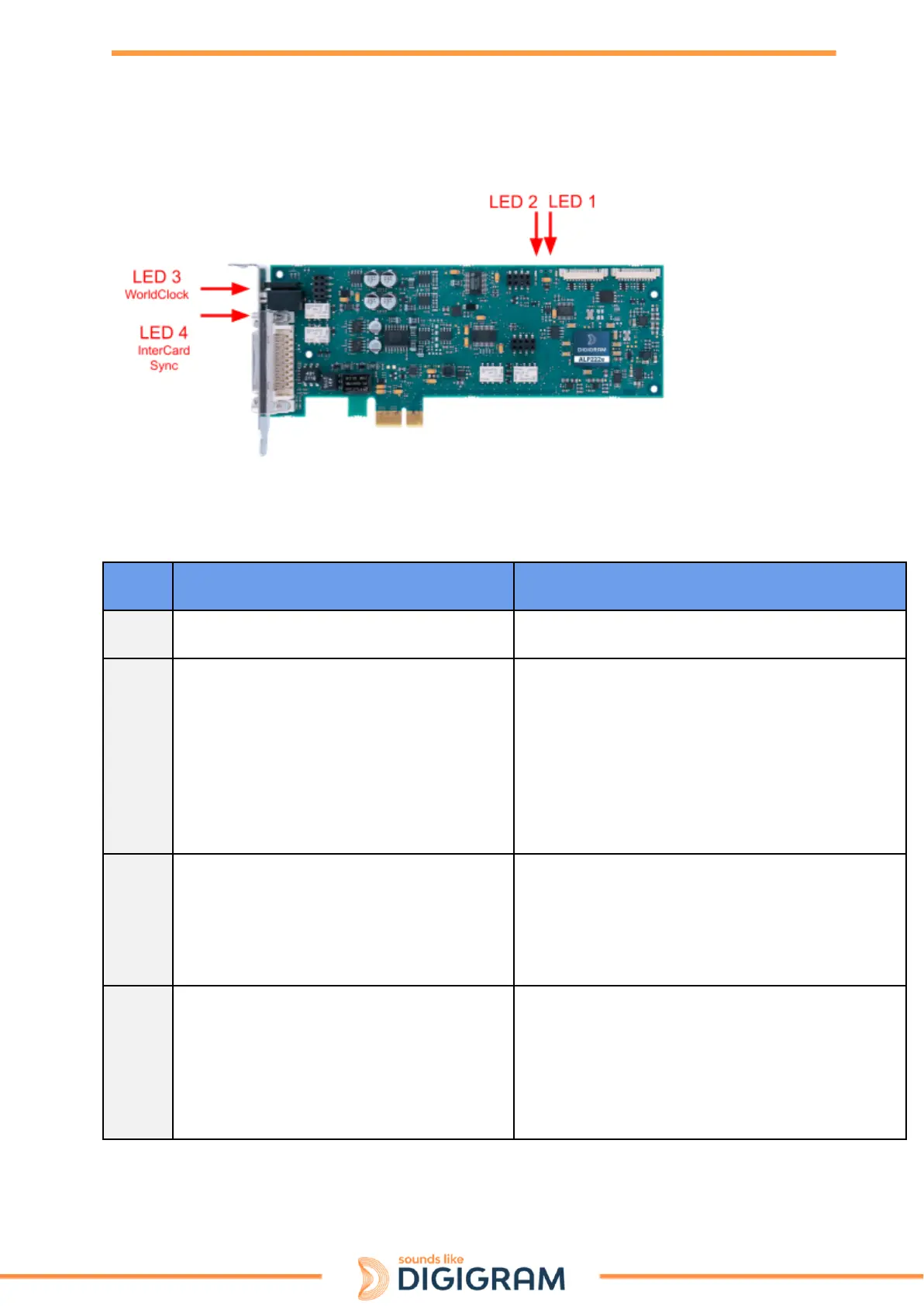

The ALP card has four green LED: 2 LED on the PCB (only visible when the PC is open) and two LED on
the bracket as illustrated in the diagram below.
LED
Description
Behaviour
LED 1
Signals when the card is initialised correctly
Constantly lit
LED 2
Signals if the card is running the last updated
firmware or the backup factory firmware
version.
● Flashes every 2 seconds:
The card runs the last uploaded firmware
version (normal behaviour).
● Flashes every second:
The card runs the backup factory firmware
instead of the last uploaded version This last
firmware is corrupted in memory and has to be
applied again.
LED 3
Wordclock
● Off when no Wordclock signal is detected.
● Flashes when a Wordclock signal is detected but
the card is not synchronised on it
● Lit when the card is synchronised to the
Wordclock input
LED 4
Intrecard synchro / card locator
● Off when the card is not synchronised to
another one via the inter card ribbon cable
● Lit when the card is slaved to another one via
the intercard synchro ribbon.
● Flashes when the button “card locator” is
pressed from the ALP-X Manager application.
61
