DWL-5x000XY DATA SHEET
4.3. Operation of Sensor Module(s) with Control Box
1. Assuming steps stated in 3.2 Conguration of Sensor Module(s) with Control Box and 4.1
Installation of the DWL5x00XY PC Sync Software have been done in this stage. Open PC
SYNC software and select the desired mode from the drop down menu as shown in Figure
27. In this example, RS485 is selected.

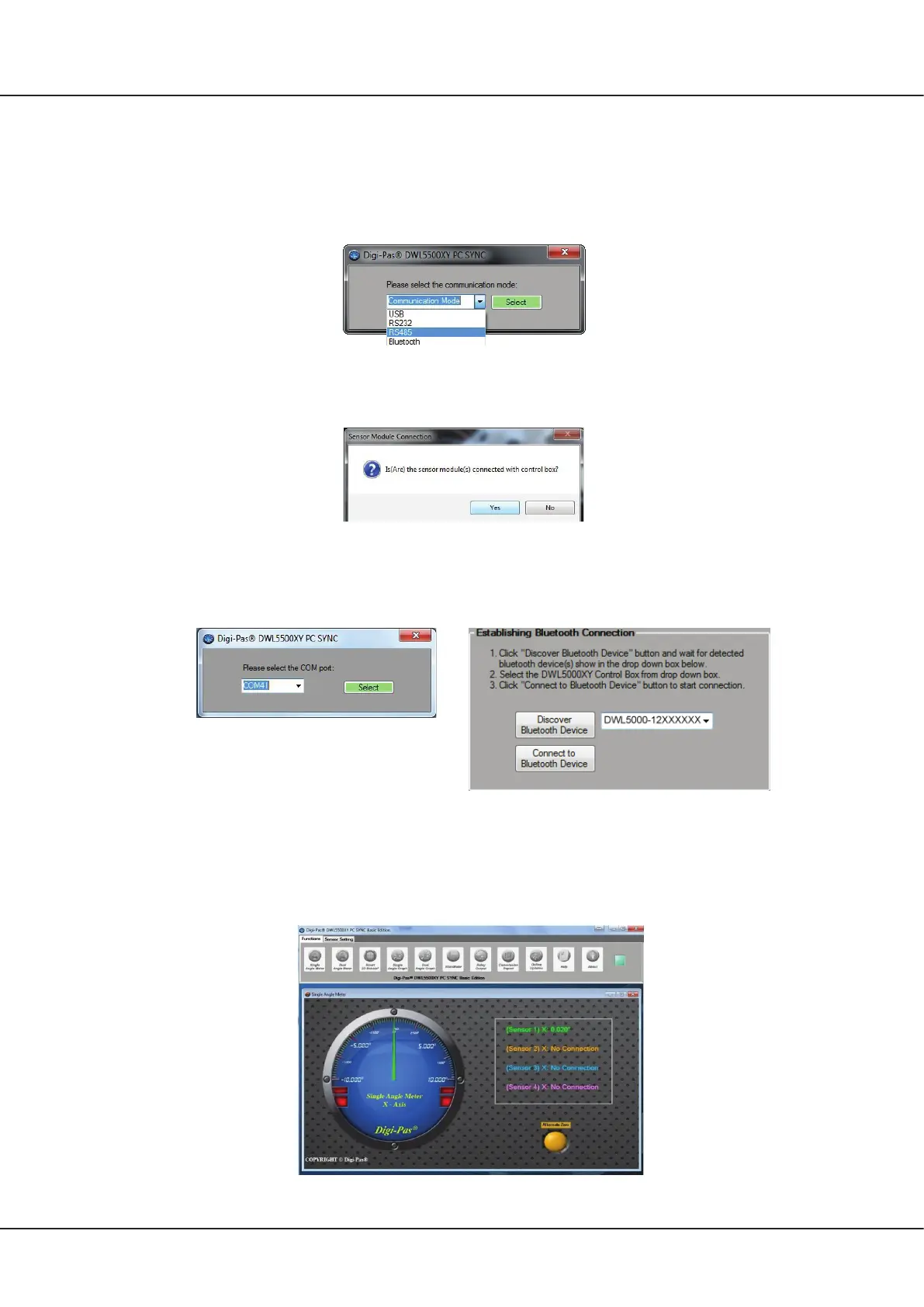

Figure 27. Select mode from the drop down menu
Figure 28. Select RS485 from the drop down menu
2. Next, click “Yes” button as in Figure 28.
3. Select the COM port or Discover Bluetooth Device if connection via Bluetooth
Figure 29. COM port or Bluetooth Discovery
4. Screen as illustrated in Figure 30 appears. The feature icons are enabled and ready for se-
lection (e.g. Single Angle Meter, Dual Angle Meter...). Following is an example when Single
Angle Meter feature icon is clicked.
Figure 30. Interface of the PC SYNC software with Single Angle Meter feature
