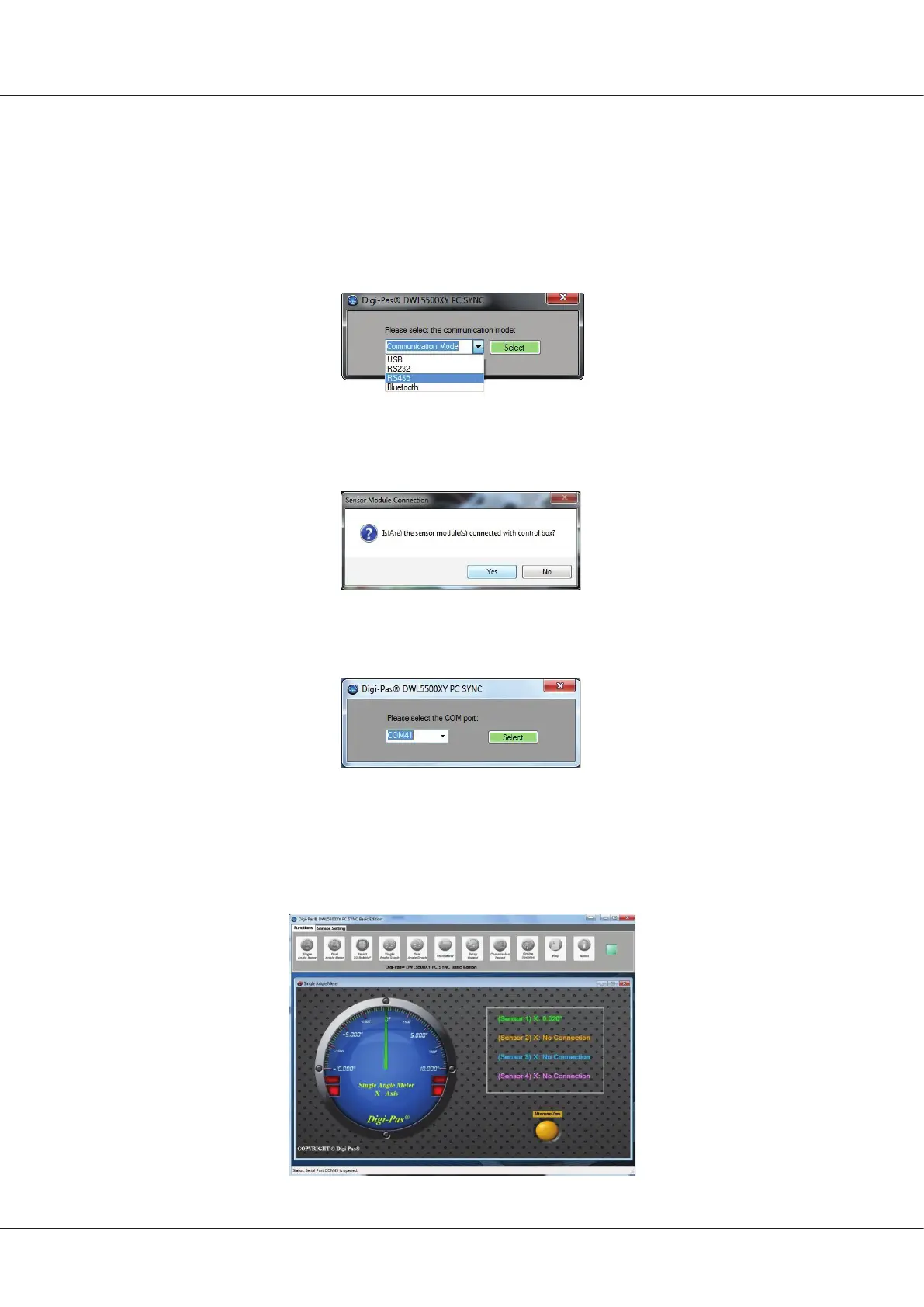

DWL-5x000XY DATA SHEET
4.2. Operation of Single Tilt Sensor Module with Converter
1. Assuming steps stated in 3.1 Conguration of Single Tilt Sensor Module with Converter and
4.1 Installation of the DWL5x00XY PC Sync Software have been done in this stage. Open
PC SYNC software and select RS485 from the drop down menu as shown in Figure 23.
2. Next, click “No” button as in Figure 24.
Figure 24. Select RS485 from the drop down menu
3. Select the COM port
Figure 25. COM port selection
4. Screen as illustrated in Figure 26 appears. The feature icons are enabled and ready for se-
lection (e.g. Single Angle Meter, Dual Angle Meter...). Following is an example when Single
Angle Meter feature icon is clicked.
Figure 26. Interface of the PC SYNC software with Single Angle Meter feature
Figure 23. Shortcut of the DWL5x00XY PC SYNC
