DWL-5x000XY DATA SHEET
LED lights up in red.
5. Select the Serial output Switch on the control box (refer to Figure 12) to RS485.

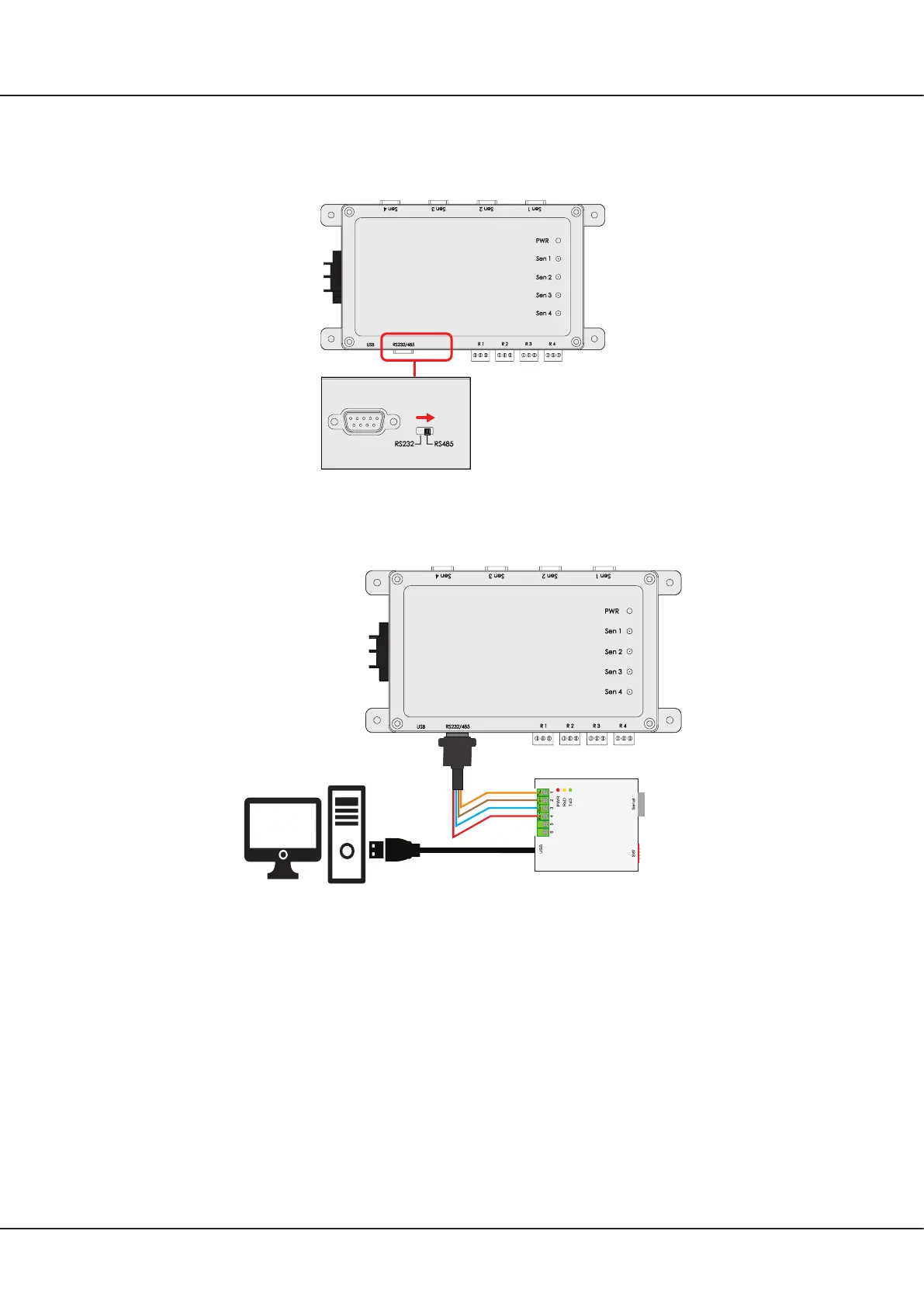

Figure 12. Changing control box output to support RS485 connection
6. Connect the cable from RS485 serial output on the control box to ES-U-3001-M converter
as in gure 13.
Figure 13. Diagram RS485 Serial connection through control box using and ES-U-3001-M serial converter to PC
7. The connection wiring pinout of the control box RS485 serial output is illustrated in
Figure 14.
