DWL-3000XY & DWL-3500XY Instruction Manual
7
For maximum accuracy, perform calibration (refer to APPENDIX: User Calibration) or Absolute
Level (refer to Chapter 4: Absolute Level for more details) before measurement.
Calibration tutorial video available on Digipas website, please visit the following link:
https://www.digipas.com/support/video.php
2.2. Mounting Device On Fixture or Work Piece
1. The two threaded holes are provided for mounting the device onto user-dened
xtures/machinery.

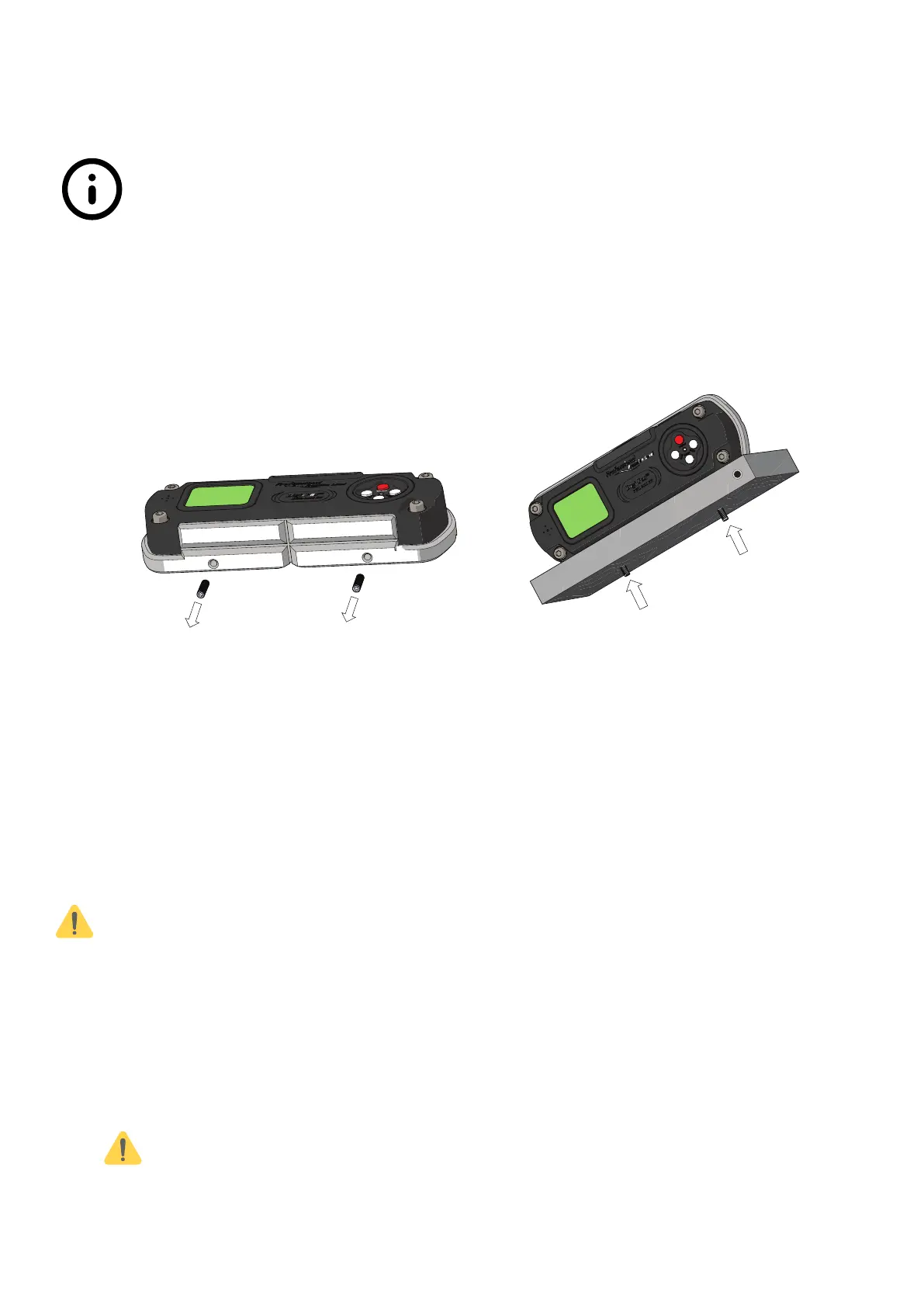

Figure 7. M5 screw location for mounting
2. To mount the device onto user’s dened xture or work piece. Remove both the set
screw (M5), then replace with appropriate type of screws specied by user.
2.3. Single Axis & Dual Axis Mode Interface
To change display reading value from X to Y axis or vice versa. Turn the device vertically
and the display screen will automatically change from metered into “Target Ball“ or “Bull
Eye“(refer to Sub-chapter 1.3: LED Display Overview for more details).
Please ensure the contact surfaces of the device and measuring plane are clean and free from
dust particles.
The device is able to auto detect its position is single axis position or dual-axis.
2.4. Absolute Level Mode
1. Place the device on the surface to be measured. Press “MODE” button to start the
measurement and wait until the loading bar is full.
Please ensure the contact surfaces of the device and measuring plane are clean and free from
dust particles.
