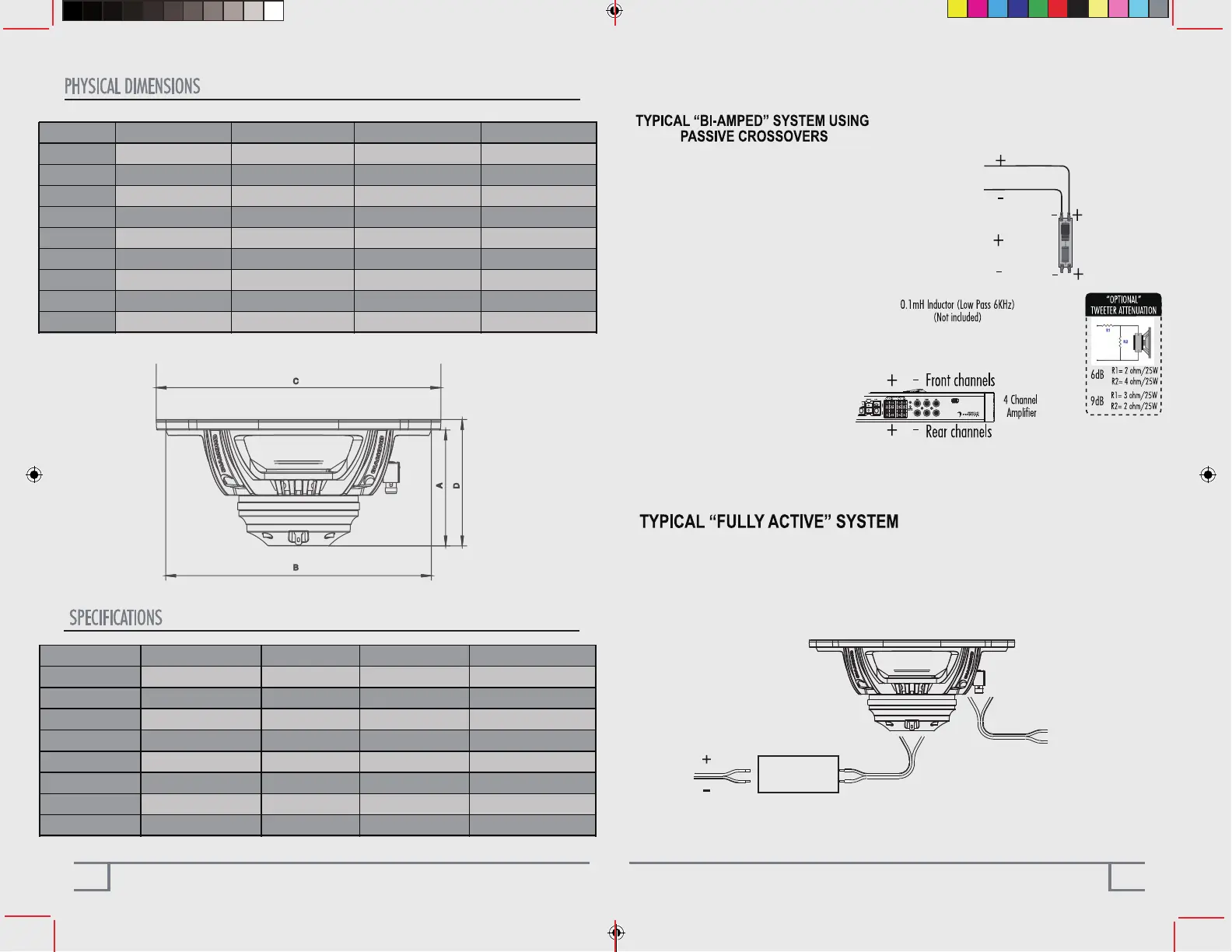

Je bekijkt pagina 5 van 5
Horn Tweeter
High Pass Filter
(Diamond Audios are
12dB per octave)
Dimension
MOUNTING DEPTH (A):
CUT-OUT DIAMETER (B):
OVER-ALL DIAMETER (C):
OVER-ALL HEIGHT (D):
Unit
in(mm)
in(mm)
in(mm)
in(mm)
MS82NEO2
3.80(96.5)
7.01(178)
8.27(210)
4.16(105.7)
MS82NEO4
3.80(96.5)
7.01(178)
8.27(210)
4.16(105.7)
MS652NEO2
3.43(87.13)
5.63(143)
6.65(169)
3.79(96.33)
MS652NEO4
3.43(87.13)
5.63(143)
6.65(169)
3.79(96.33)
MS652NEO2S
2.74(69.50)
5.43(143)
6.65(169)
3.38(85.90)
MS652NEO4S
2.74(69.50)
5.43(143)
6.65(169)
3.38(85.90)
MS692NEO2
3.74(95)
8.58X5.75(218X146)
9.19X6.38(233.5X162)
4.08(103.70)
MS692NEO4
3.74(95)
8.58X5.75(218X146)
9.19X6.38(233.5X162)
4.08(103.70)
B
C
D
A
Specifications
Power Rating
Sensitivity( 1W/M)
Frequency Response
Nominal Impedance(
MS82NEO2
300W RMS/600W MAX
96dB
110Hz - 20kHz
2
MS82NEO4
300W RMS/600W MAX
97dB
110Hz - 20kHz
4
MS652NEO2
200W RMS/600W MAX
95dB
150Hz - 20kHz
2
MS652NEO4
200W RMS/600W MAX
96dB
150Hz - 20kHz
4
MS652NEO2S
200W RMS/600W MAX
95dB
180Hz - 20kHz
2
MS652NEO4S
200W RMS/600W MAX
96dB
180Hz - 20kHz
4
MS692NEO2
200W RMS/600W MAX
95dB
110Hz - 20kHz
2
MS692NEO4
200W RMS/600W MAX
96dB
110Hz - 20kHz
4
Ω）
6 5
The Diamond Audio NEO CoAxials and Midbass drivers can be run in multiple pairs. It is
HIGHLY recommended to use some kind of EQ/processor. IF you plan on doing ALL active
setup seriously think about purchasing a DSP processor. Using a DSP processor makes it
much easier to control and tune your system.
The Diamond Audio NEO CoAxials come with
a special 12dB per octave crossover. It is
HIGHLY recommended that this be used at
ALL times - UNLESS you are using an active
crosssover set at above 7.5kHz. This system,
shown is "Bi-Amped, but not 'Fully" active.
Front channels of this 4 channel amplifier are
driving the mid bass drivers. Rear channel
are driving the tweeters. The mid bass is
shown with a 0.1 mH inductor in series to
cross over the midbass at 6KHz with a 6dB
roll-off. This setup makes it easier to adjust
level of the midbass versus the tweeter.
Crossover
Mid Range Connection
Tweeter Connection
