①②③ DC Breaker for battery
④⑥⑧ AC Breaker for grid port
⑤⑦⑨ AC Breaker for backup load port
⑩ AC Breaker
Depends on Home Load
SUN 7K-SG: 225A DC breaker
SUN 7.6K-SG: 225A DC breaker
SUN 8K-SG: 225A DC breaker
SUN 10K-SG: 225A DC breaker
SUN 7K-SG: 50A AC breaker
SUN 7.6K-SG: 50A AC breaker
SUN 8K-SG: 50A AC breaker
SUN 10K-SG: 50A AC breaker
SUN 7K-SG: 50A AC breaker
SUN 7.6K-SG: 50A AC breaker
SUN 8K-SG: 50A AC breaker
SUN 10K-SG: 50A AC breaker
- 25 -
L wireCAN N wire PE wire

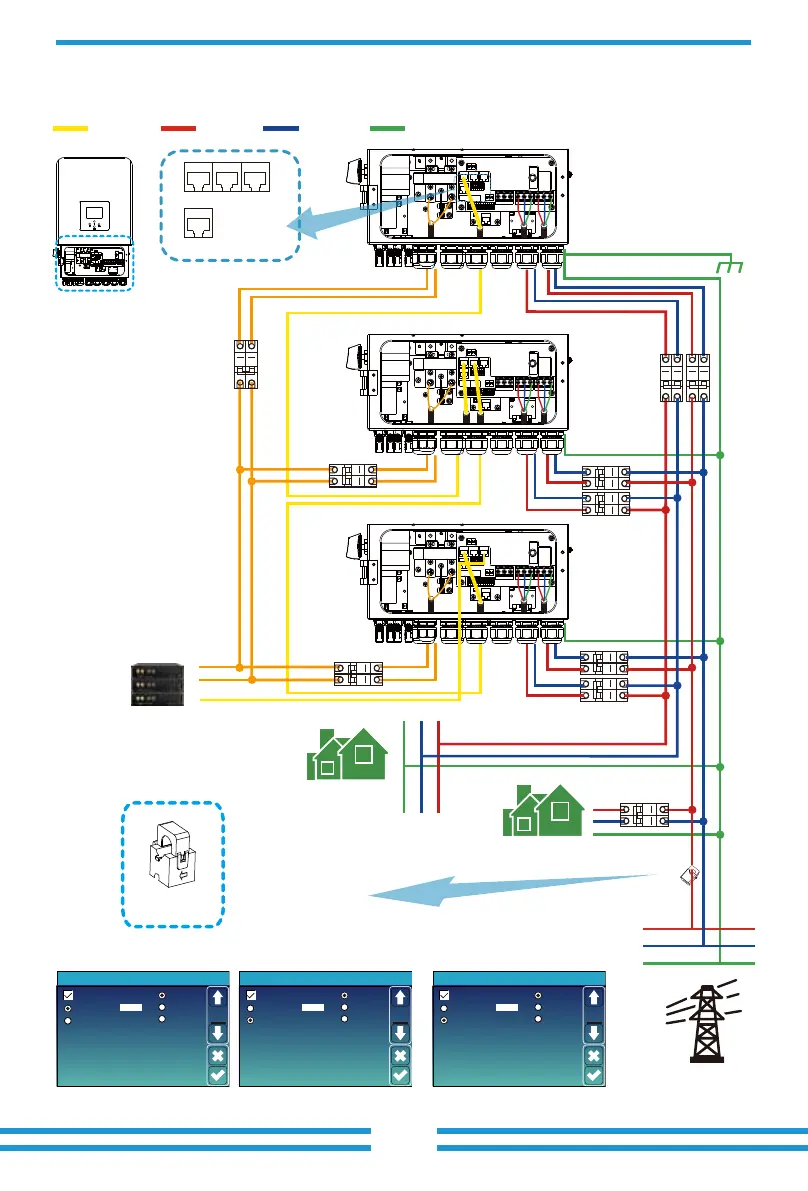

3.12 Single phase parallel connec�on diagram
Parallel
Master
Slave
Modbus SN
01
A Phase
B Phase
C Phase
Advanced Function
Paral.
Set3
Parallel
Master
Slave
Modbus SN
02
A Phase
B Phase
C Phase
Advanced Function
Paral.
Set3
Parallel
Master
Slave
Modbus SN
03
A Phase
B Phase
C Phase
Advanced Function
Paral.
Set3
Master inverter Slave Inverter Slave Inverter
Grid
Backup Load
L
N
PE
LNPE
Inverter
No.3
(slave)
Ground
Inverter
No.2
(slave)
Inverter
No.1
(master)
Home Load
Battery pack
① DC
Breaker
② DC
Breaker
③ DC
Breaker
④
⑥
⑨
⑩ AC
Breaker
The second side of the CT
only needs to connect the
master inverter.
CT
⑤
⑦
⑧
CT
Arrow pointing
to inverter
Inverter
RS 485/METER
parallel_1 parallel_2 BMS 485/
CAN
Note: For the parallel system, please choose the "Zero export to CT " mode.
