- 35 -

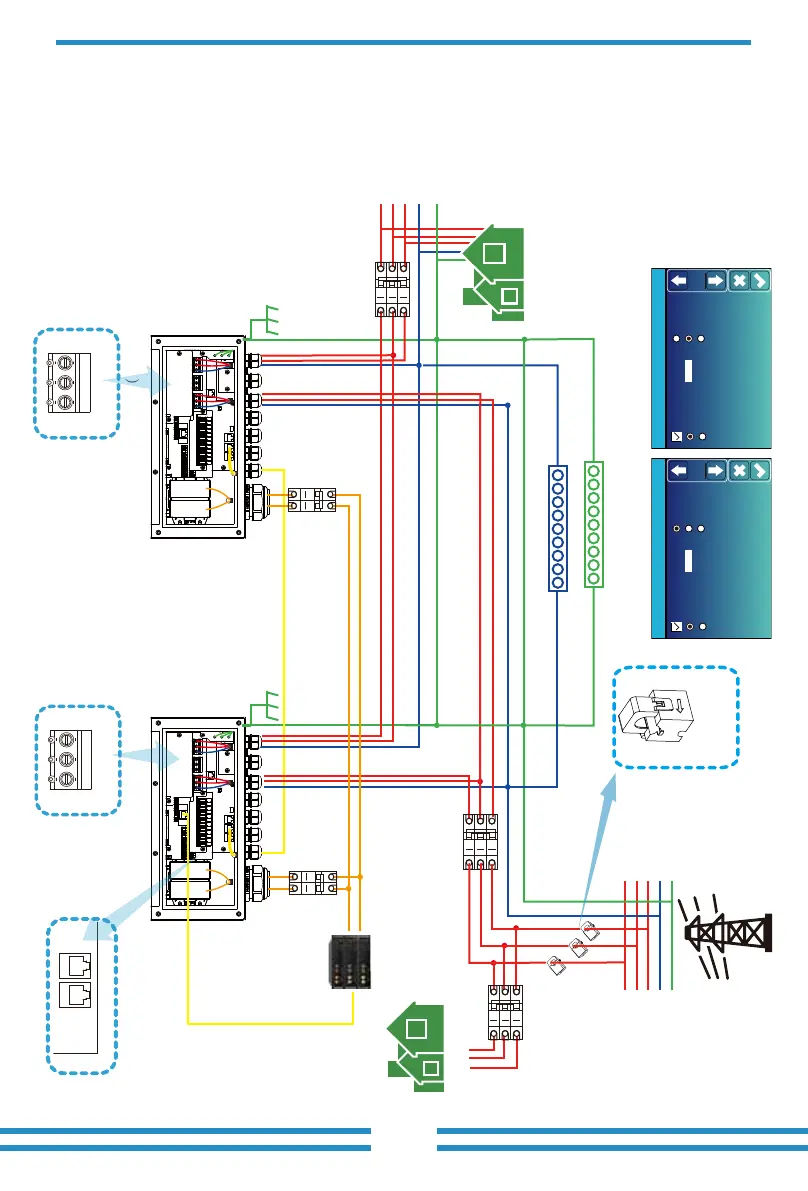

①② DC Breaker for battery
SUN-10K-SG-US: 300A DC breaker
SUN-12K-SG-US: 300A DC breaker
④ AC Breaker for grid port
SUN-10K-SG-US: 100A AC breaker
SUN-12K-SG-US: 100A AC breaker
③ AC Breaker for backup load port
SUN-10K-SG-US: 100A AC breaker
SUN-12K-SG-US: 100A AC breaker
⑤ AC Breaker
Depends on Home Load
backup Load
Battery pack
Inverter No.1(master)
Inverter No.2(master)
Parallel A Parallel B
Parallel
Master
Slave
Modbus SN
01
A Phase
B Phase
C Phase
Advanced Function
Paral.
Set3
Parallel
Master
Slave
Modbus SN
02
A Phase
B Phase
C Phase
Advanced Function
Paral.
Set3
A Phase Master inverter B Phase Master inverter
L1(L1)
L2(L1' L2)
L3(L2')
N
PE
L1(L1)
L2(L1' L2)
L3( L2')
N
PE
N L2 L1
N L2' L1'
CAN/RS 485
CT2
CT3
CT1
Home load
⑤ AC Breaker
CT
Arrow pointing
to
inverter
① DC
Breaker
② DC
Breaker
④ AC Breaker
③ AC Breaker
E-BAR
N-BAR
Ground
Parallel communication cable
SUN-(10-12)K-SG02LP2-US-AM3
