- 25 -

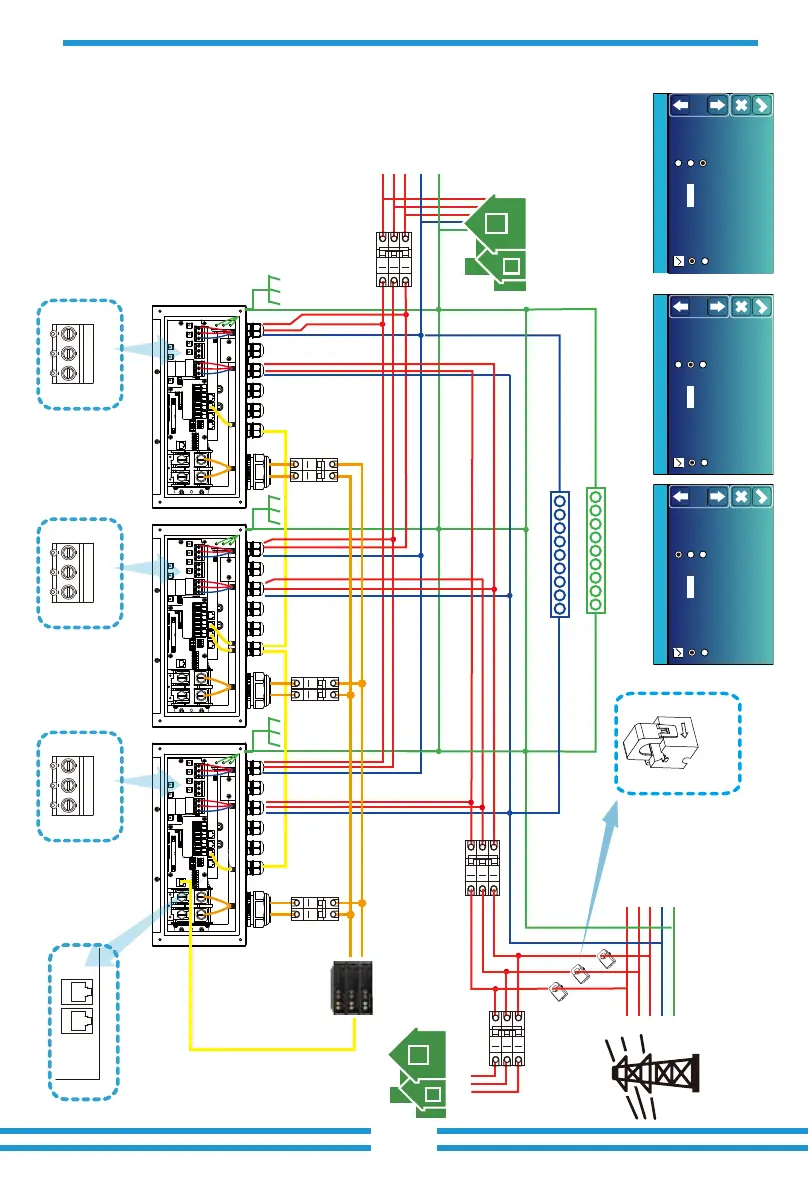

3.14 Parallel connec�on for 120/208 three phase
⑥ AC Breaker
Depends on Home Load
⑤ AC Breaker for grid port
SUN 5K-SG: 40A AC breaker
SUN 6K-SG: 40A AC breaker
SUN 7.6K-SG: 40A AC breaker
SUN 8K-SG: 63A AC breaker
①②③ DC Breaker for battery
SUN 5K-SG: 150A DC breaker
SUN 6K-SG: 200A DC breaker
SUN 7.6K-SG: 200A DC breaker
SUN 8K-SG: 250A DC breaker
④ AC Breaker for backup load port
SUN 5K-SG: 40A AC breaker
SUN 6K-SG: 40A AC breaker
SUN 7.6K-SG: 63A AC breaker
backup Load
Battery pack
Inverter No.1(master) Inverter No.2(master) Inverter No.3(master)
Parallel A Parallel B
Parallel
Master
Slave
Modbus SN
01
A Phase
B Phase
C Phase
Advanced Function
Paral.
Set3
Parallel
Master
Slave
Modbus SN
02
A Phase
B Phase
C Phase
Advanced Function
Paral.
Set3
Parallel
Master
Slave
Modbus SN
03
A Phase
B Phase
C Phase
Advanced Function
Paral.
Set3
A Phase Master inverter B Phase Master inverter C Phase Master inverter
L1(L1 L2'')
L2(L1' L2 )
L3(L1'' L2')
N
PE
L1(L1 L2'')
L2(L1' L2 )
L3(L1'' L2')
N
PE
N L2 L1 N L2' L1' N L2'' L1''
CAN/RS 485
CT3
CT2
CT1
Home load
⑥ AC Breaker
*CT
Arrow pointing
to
inverter
① DC
Breaker
② DC
Breaker
③ DC
Breaker
⑤ AC Breaker
④ AC Breaker
E-BAR
N-BAR
Ground
*Note: the 1st CT needs to be connected
the 3/4 port of master A hybrid inverter,
the second CT needs to be connected the
5/6 port of the master A hybrid inverter.
The thrid CT needs to be connected to
5/6 port of the master B hybrid inverter.
SUN 8K-SG: 63A AC breaker
(Region:US)
Note: For the parallel system, please choose the "Zero export to CT " mode.
