Je bekijkt pagina 30 van 60
RS 485/
METER
parallel_1 parallel_2
Modbus
BMS 485/
CAN
-28 -

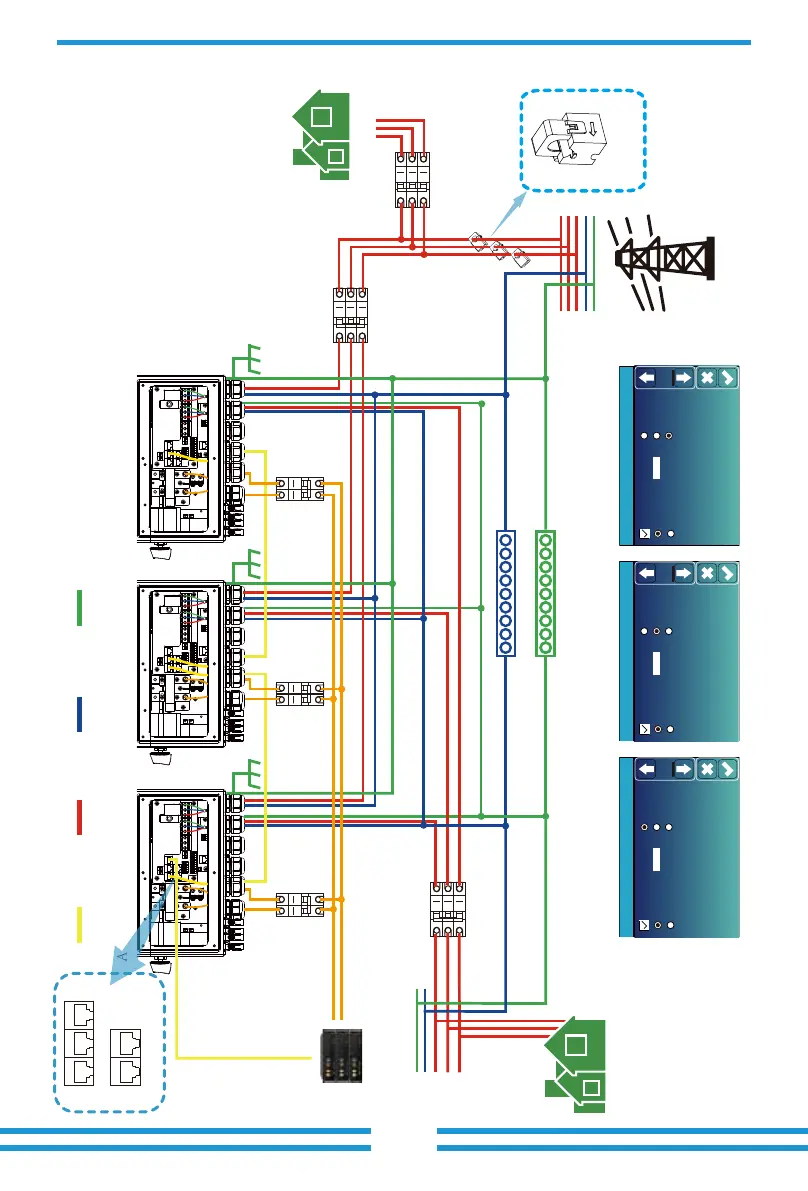

3.13 Three phase Parallel Inverter
Ground
L wireCAN N wire PE wire
Battery pack
Grid
CAN/RS 485
L1
N
PE
L2
L3
A Phase Inverter No.1(master) B Phase Inverter No.2(master) C Phase Inverter No.3(master)
Backup Load
Parallel
Master
Slave
Modbus SN
01
A Phase
B Phase
C Phase
Advanced Function
Paral.
Set3
Parallel
Master
Slave
Modbus SN
02
A Phase
B Phase
C Phase
Advanced Function
Paral.
Set3
Parallel
Master
Slave
Modbus SN
03
A Phase
B Phase
C Phase
Advanced Function
Paral.
Set3
A Phase Master inverter B Phase Master inverter C Phase Master inverter
Home load
L3
L2
L1
N-BAR
E-BAR
④ AC Breaker
⑤ AC Breaker
⑥ AC Breaker
① DC
Breaker
② DC
Breaker
③ DC
Breaker
CT1
CT2
CT3
CT
Arrow pointing
to inverter
①②③ DC Breaker for battery
⑤ AC Breaker for grid port
④ AC Breaker for backup load
⑥ AC Breaker
Depends on Home Load
SUN-3.6K-SG05LP1-EU-AM2-P: 40A AC breaker
SUN-5K-SG05LP1-EU-AM2-P: 40A AC breaker
SUN-6K-SG05LP1-EU-AM2-P: 40A AC breaker
SUN-7K-SG05LP1-EU-AM2-P: 50A AC breaker
SUN-7.6K-SG05LP1-EU-AM2-P: 50A AC breaker
SUN-8K-SG05LP1-EU-AM2-P: 50A AC breaker
SUN-10K-SG05LP1-EU-AM2-P: 50A AC breaker
SUN-3.6K-SG05LP1-EU-AM2-P: 150A DC breaker
SUN-5K-SG05LP1-EU-AM2-P: 150A DC breaker
SUN-6K-SG05LP1-EU-AM2-P: 150A DC breaker
SUN-7K-SG05LP1-EU-AM2-P: 225A DC breaker
SUN-7.6K-SG05LP1-EU-AM2-P: 225A DC breaker
SUN-8K-SG05LP1-EU-AM2-P: 225A DC breaker
SUN-10K-SG05LP1-EU-AM2-P: 225A DC breaker
SUN-3.6K-SG05LP1-EU-AM2-P: 40A AC breaker
SUN-5K-SG05LP1-EU-AM2-P: 40A AC breaker
SUN-6K-SG05LP1-EU-AM2-P: 40A AC breaker
SUN-7K-SG05LP1-EU-AM2-P: 50A AC breaker
SUN-7.6K-SG05LP1-EU-AM2-P: 50A AC breaker
SUN-8K-SG05LP1-EU-AM2-P: 50A AC breaker
SUN-10K-SG05LP1-EU-AM2-P: 50A AC breaker
Note: For the parallel system, please choose the "Zero export to CT " mode.
