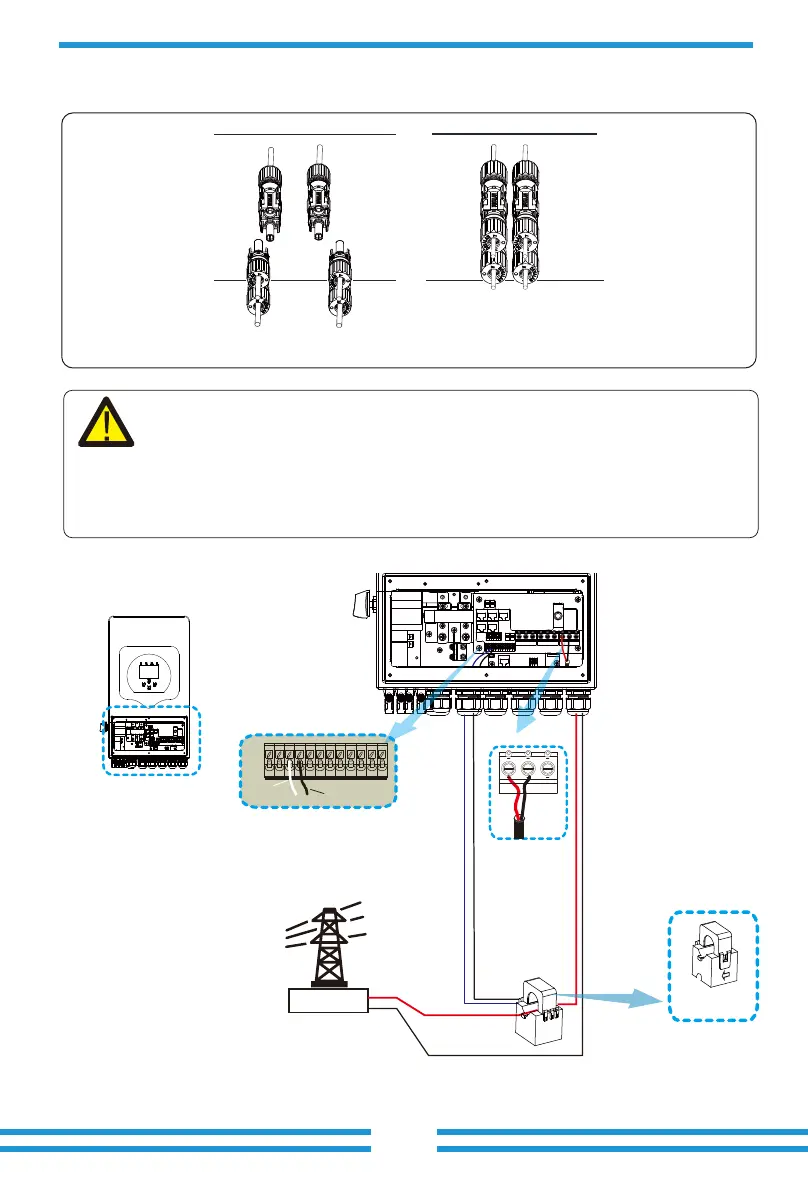

- 22 -
3.7 CT Connec�on
L N PE
White wire
3 4
Black wire
Grid
L
N
CT
3
4
*Note：when the reading of the load power on the LCD is not correct, please
reverse the CT arrow.
The primary side of the CT
needs to be clamped on the
Grid live line.
CT
Arrow pointing
to
inverter
Inverter
d) Finally insert the DC connector into the posi�ve and nega�ve input of the inverter, shown as
picture 3.6.
Pic 3.6 DC input connec�on
Warning:
Sunlight shines on the panel will generate voltage, high voltage in series may
cause danger to life. Therefore, before connec�ng the DC input line, the solar
panel needs to be blocked by the opaque material and the DC switch should
be 'OFF', otherwise, the high voltage of the inverter may lead to life-
threatening condi�ons.
