Pic 7.20 Eastron meter
Eastron SDM630-Modbus V2
RS 485
RS 485 B RS 485 A
B A G
(5,6,7,8)
(1,2,3,4)
1234
5678
GND
Eastron
5 6 7 8

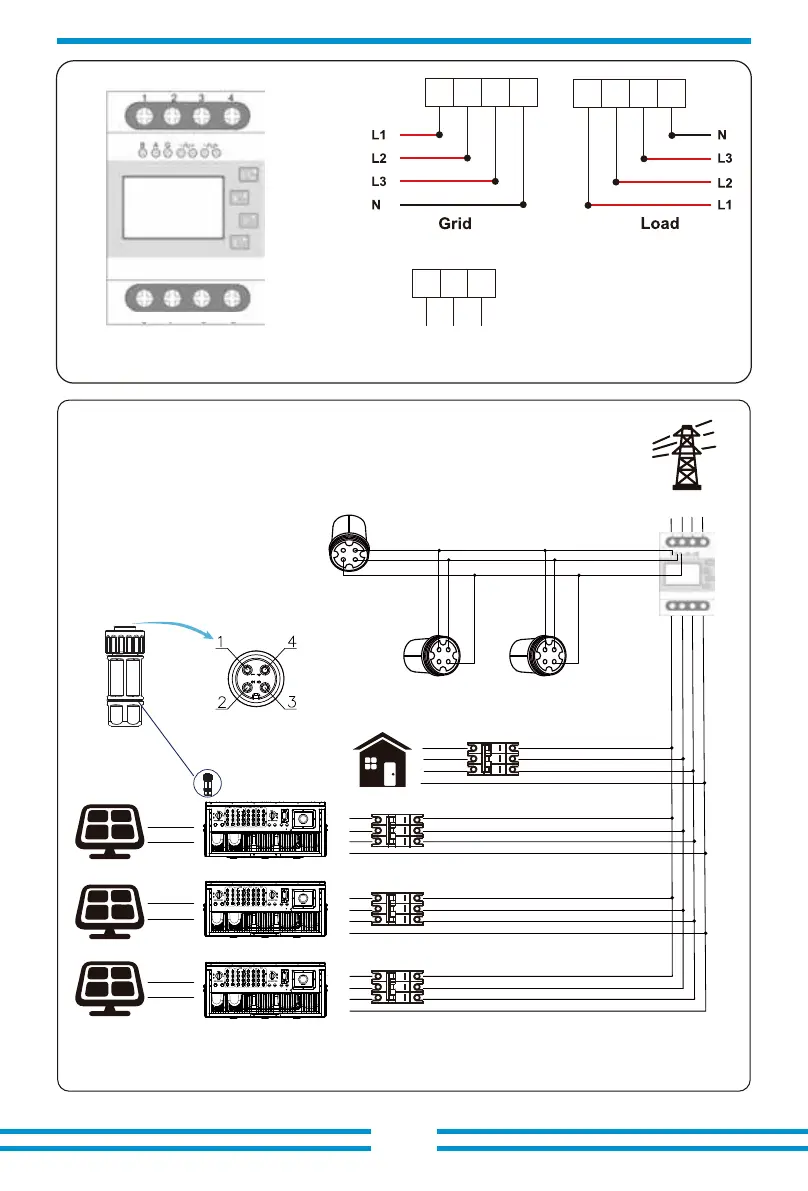

Pic 7.21 Eastron Connection diagram(The pass-through table)
L1
L2
L3
N
L1
L2
L3
N
L1
L2
L3
N
Solar Panel array
Solar Panel array
Solar Panel array
L1
L2
L3
N
load
Grid meter
5 6 7 8
N
L3
L2 L1
Grid
L1 L2 L3 N
AC Breaker
AC Breaker
AC Breaker
AC Breaker
VCC_5V
485_B
485_AGND
RS 485
Female connector
- 31 -
Master(Mst)
Slave1(Slv1)
Slave2(Slv2)
RS485
limiter1 limiter
Meter
WIFI
RS485
limiter1 limiter
Meter
WIFI
RS485
limiter1 limiter
Meter
WIFI
485_B
(as short as possible)
485_A
(as short as possible)
GND
(as short as possible)
485_B
(as short as possible)
485_A
(as short as possible)
GND
(as short as possible)
1
2
3
4
Master(Mst)
RS485
1
2
3
4
Slave1(Slv1)
RS485
1
2
3
4
Slave2(Slv2)
RS485
485_B
485_A
GND
