5.4.1 Installation of datalogger

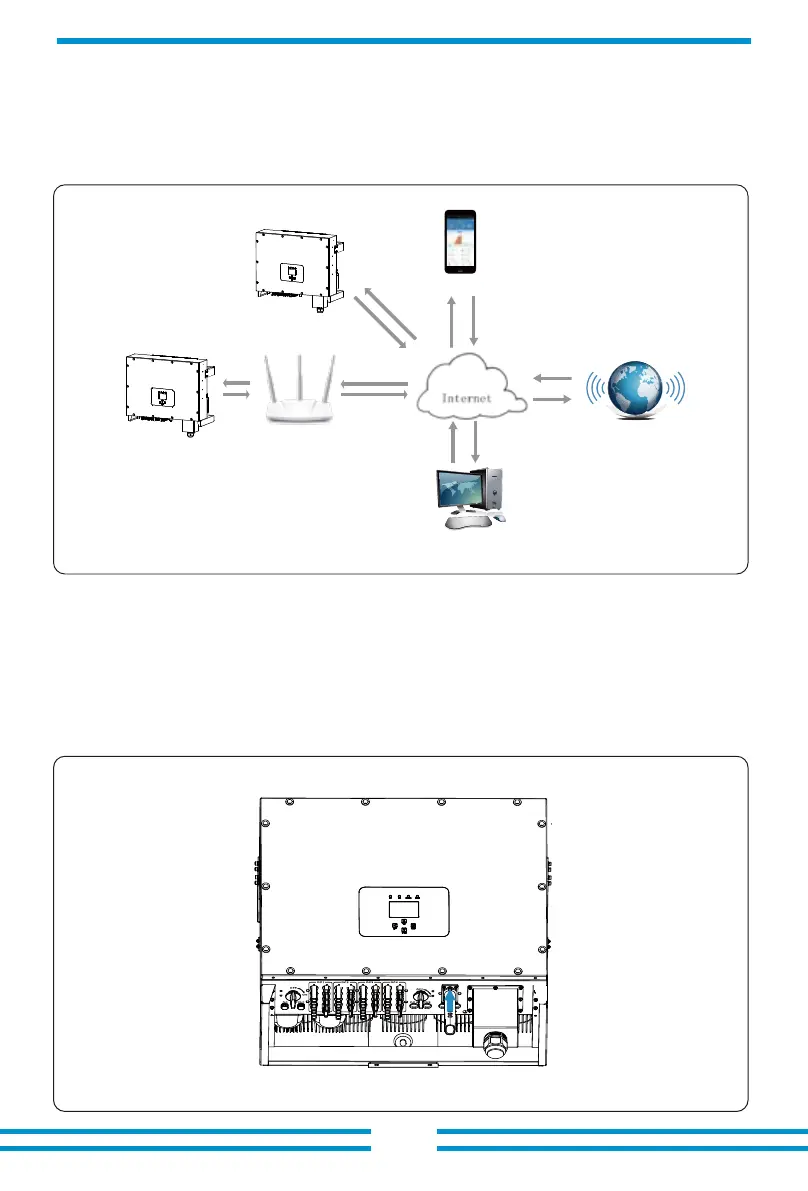

Pic 5.13 Internet monitoring solution
Pic 5.14 datalogger installation diagram
- 17 -
When installing the WiFi stick, tear off the sealing strip on the inverter. Insert the datalogger into
the interface and fix it with a screw. The configuration of the datalogger needs to be performed
after various electrical connections have been completed and the inverter DC power on. When
the inverter is on the DC power, it is determined whether the datalogger is normally electrified
(The LED light shines out of the shell).
Router
WIFI
GPRS
Web Server
Phone
Inverter has the function of wireless remote monitoring inverter. The inverter has Wifi function
and Wifi Plug in the accessories is used to realize the connection between the inverter and the
network. The operation, installation, networking, APP download are detailed in the WIFI PLUG
instructions. Figure 5.13 is the Internet monitoring solution.
5.4 Inverter monitoring connection
RS485
limit
ter2
Meter
WIFI
